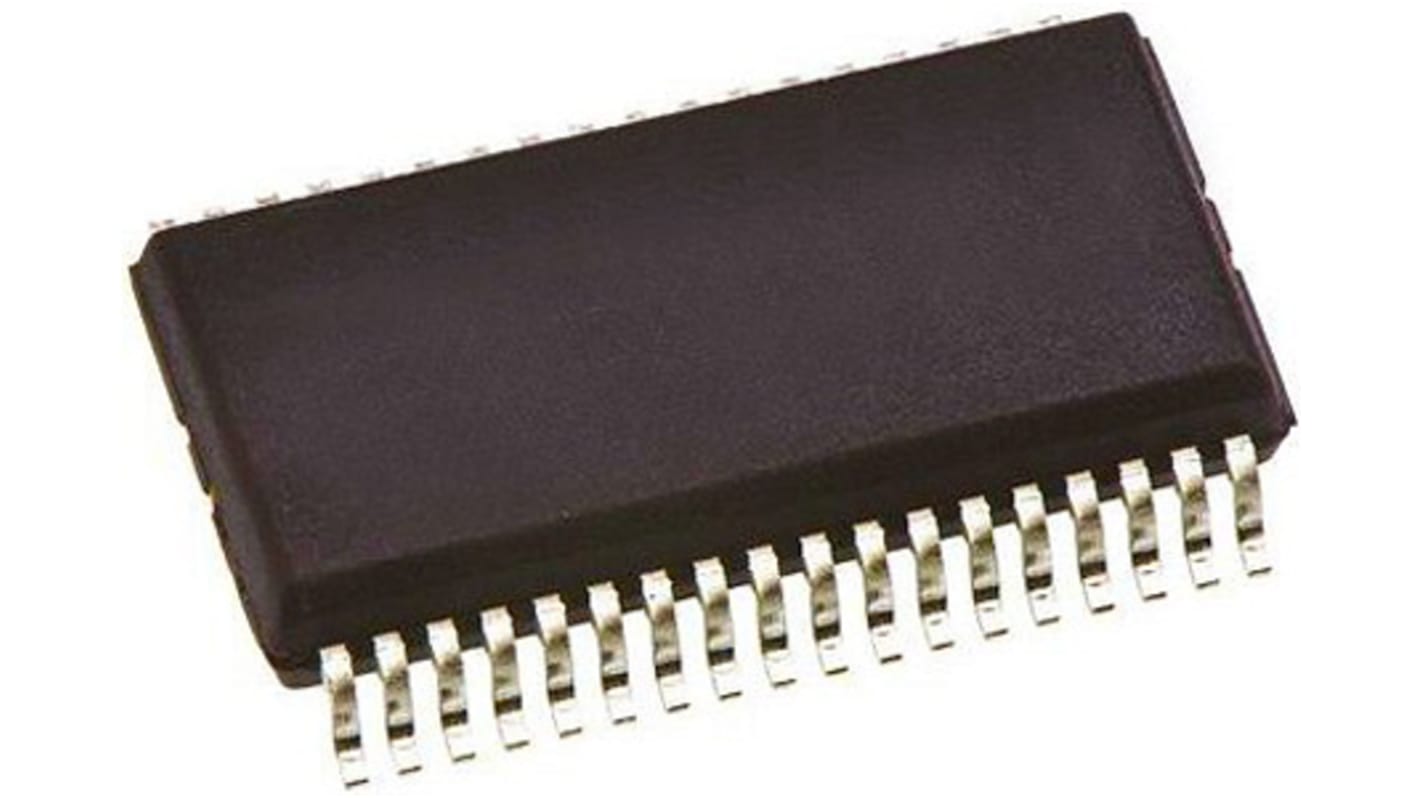

Texas Instruments DRV8402DKD, Brushed Motor Driver IC, 50 V 10A 36-Pin, HSSOP
- RS Stock No.:
- 145-6885
- Mfr. Part No.:
- DRV8402DKD
- Brand:
- Texas Instruments
Available to back order for despatch when stock is available
Added
Price Each (In a Tube of 29)
£11.858
(exc. VAT)
£14.23
(inc. VAT)
| Units | Per unit | Per Tube* |
| 29 + | £11.858 | £343.882 |
| *price indicative | ||
- RS Stock No.:
- 145-6885
- Mfr. Part No.:
- DRV8402DKD
- Brand:
- Texas Instruments
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Brushed DC (BDC) Drivers with FETs, Texas Instruments
Motor Controllers & Drivers, Texas Instruments
Specifications
Attribute | Value |
|---|---|
| Motor Type | Brushed DC |
| Output Configuration | Dual Full Bridge |
| Maximum IGBT Collector Current | 10A |
| Maximum Collector Emitter Voltage | 50 V |
| Mounting Type | Surface Mount |
| Package Type | HSSOP |
| Pin Count | 36 |
| Maximum Operating Supply Voltage | 13.2 V |
| Minimum Operating Supply Voltage | 11.4 V |
| Length | 15.9mm |
| Height | 3.15mm |
| Width | 11mm |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 15.9 x 11 x 3.15mm |
| Maximum Operating Temperature | +85 °C |
