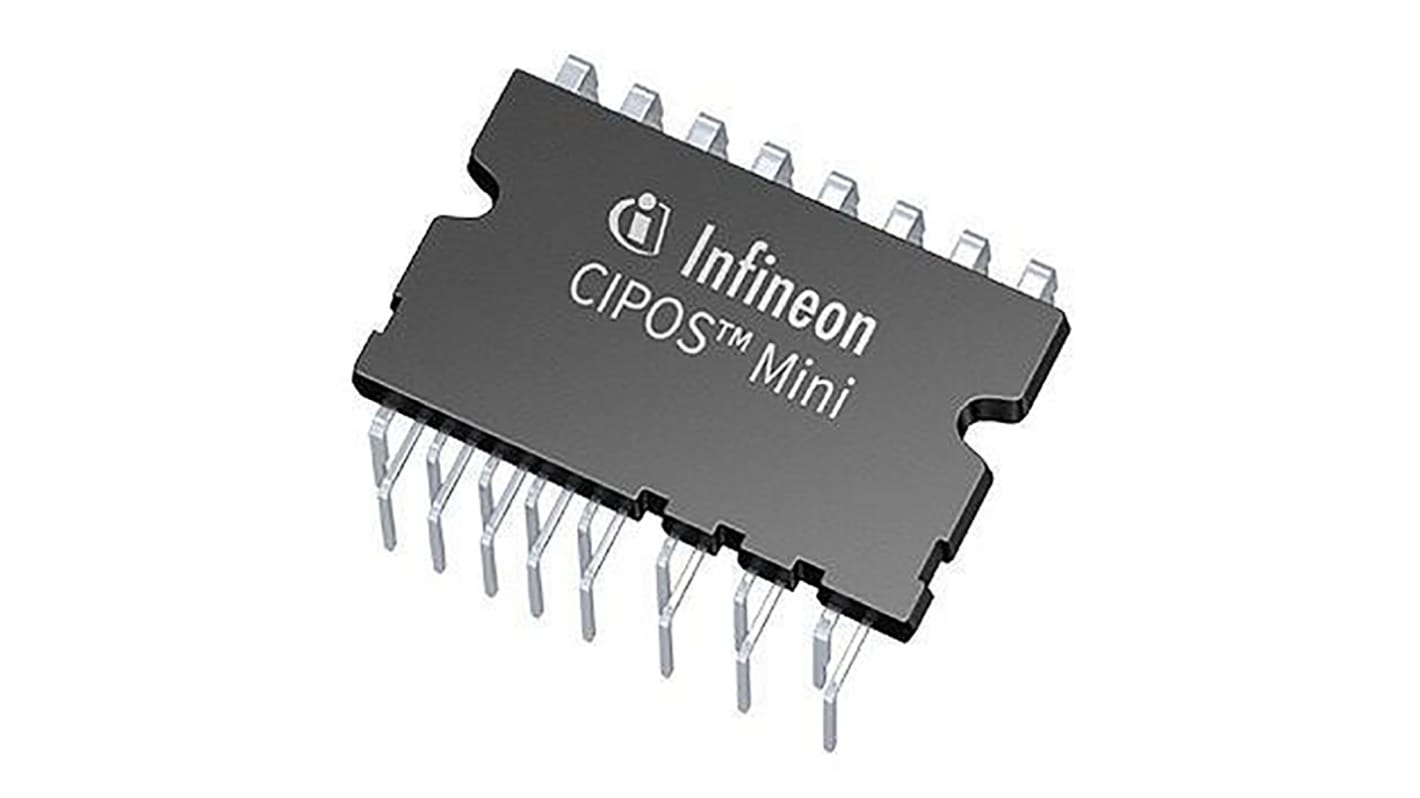

Infineon IKCM10L60GAXKMA1, AC Motor, Permanent Magnet Motor Motor Driver IC, 2.05 V 20A 24-Pin

  • RS Stock No. 133-9905
  • Mfr. Part No. IKCM10L60GAXKMA1
  • Brand Infineon
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): KR
Product Details

Intelligent Power Modules (IPM), CIPOS family, Infineon

The Control Integrated Power System (CIPOS) are families of highly integrated, compact power modules. They are designed to drive motors in home appliances, fan and pump applications. These energy-efficient Intelligent Power Modules (IPM) deliver increased power density with enhanced system ruggedness and reliability that improve motor system performance and energy efficiency.

Motor Controllers & Drivers, Infineon

Specifications
Attribute Value
Motor Type AC Motor, Permanent Magnet Motor
Configuration 3 Phase
Output Configuration Half Bridge
Maximum Output Current 10A
Maximum IGBT Collector Current 20A
Maximum Supply Voltage 600 V
Maximum Collector Emitter Voltage 2.05 V
Mounting Type Through Hole
Maximum Operating Supply Voltage 400 V
Pin Count 24
Minimum Operating Supply Voltage 0 V
Typical Switching Frequency 20 (Maximum)kHz
Series CIPOS
Length 36mm
Maximum Operating Temperature +150 °C
Width 21mm
Height 3.1mm
Dimensions 36 x 21 x 3.1mm
Minimum Operating Temperature -40 °C
572 In stock - FREE next working day delivery available
Price Each
£ 4.94
(exc. VAT)
£ 5.93
(inc. VAT)
Units
Per unit
1 +
£4.94
