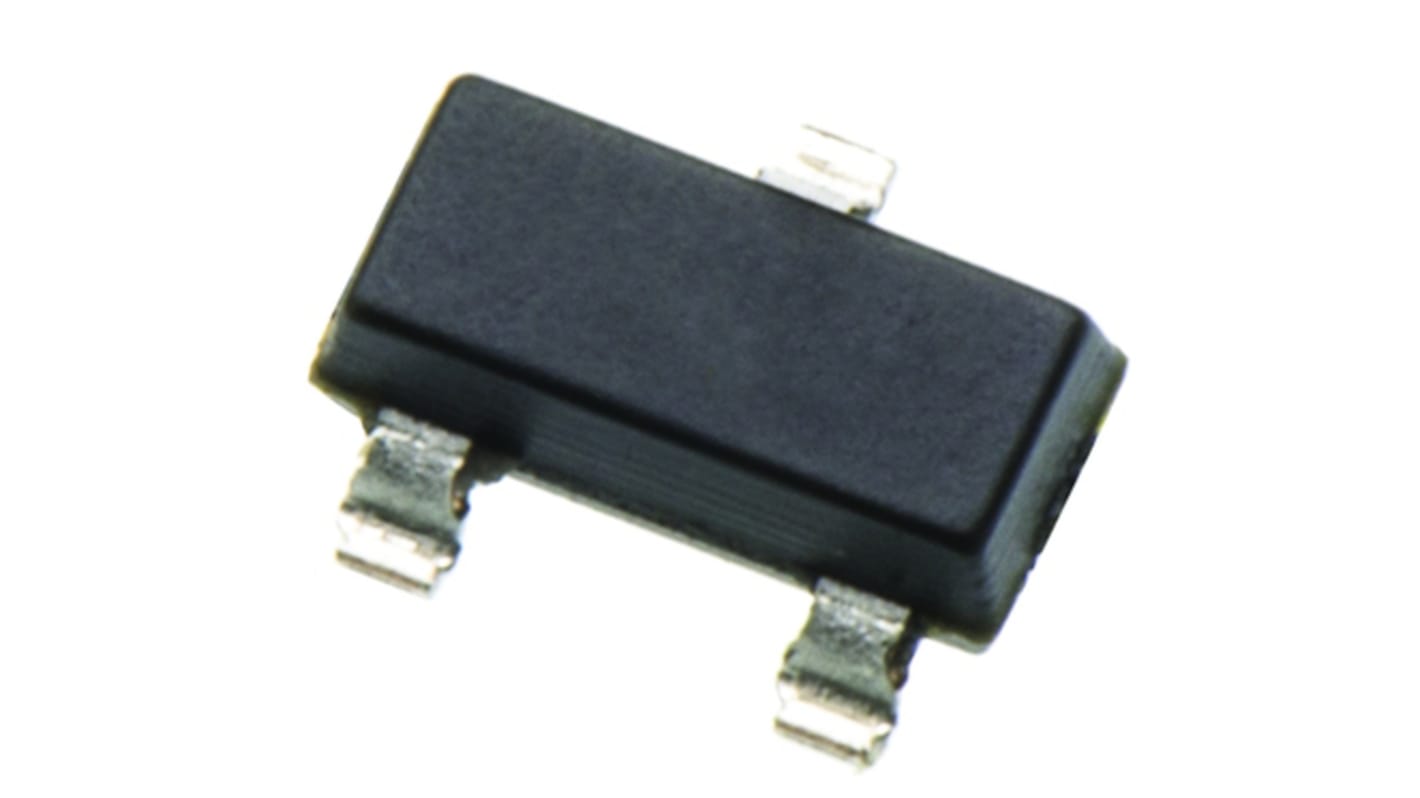

P-Channel MOSFET, 2 A, 30 V, 3-Pin SOT-23 STMicroelectronics STR2P3LLH6

RS Stock No.:: 876-5702
Mfr. Part No.:: STR2P3LLH6
Brand:: STMicroelectronics

P-Channel MOSFET, 2 A, 30 V, 3-Pin SOT-23 STMicroelectronics STR2P3LLH6

2950 In stock - FREE next working day delivery available

Added

Price Each (In a Pack of 50)

£0.347

(exc. VAT)

£0.416

(inc. VAT)

Units	Per unit	Per Pack*
50 - 200	£0.347	£17.35
250 - 450	£0.33	£16.50
500 - 1200	£0.297	£14.85
1250 +	£0.295	£14.75
*price indicative

RS Stock No.:: 876-5702
Mfr. Part No.:: STR2P3LLH6
Brand:: STMicroelectronics

Technical Reference

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

P-Channel STripFET™ Power MOSFET, STMicroelectronics

STripFET™ MOSFETs with a wide breakdown voltage range offer ultra-low gate charge and low on-resistance.

MOSFET Transistors, STMicroelectronics

Specifications

Attribute	Value
Channel Type	P
Maximum Continuous Drain Current	2 A
Maximum Drain Source Voltage	30 V
Package Type	SOT-23
Series	STripFET
Mounting Type	Surface Mount
Pin Count	3
Maximum Drain Source Resistance	90 mΩ
Channel Mode	Enhancement
Maximum Gate Threshold Voltage	2.5V
Minimum Gate Threshold Voltage	1V
Maximum Power Dissipation	350 mW
Transistor Configuration	Single
Maximum Gate Source Voltage	-20 V, +20 V
Maximum Operating Temperature	+150 °C
Number of Elements per Chip	1
Typical Gate Charge @ Vgs	6 nC @ 4.5 V
Length	3.04mm
Transistor Material	Si
Width	1.75mm
Forward Diode Voltage	1.1V
Height	1.3mm
