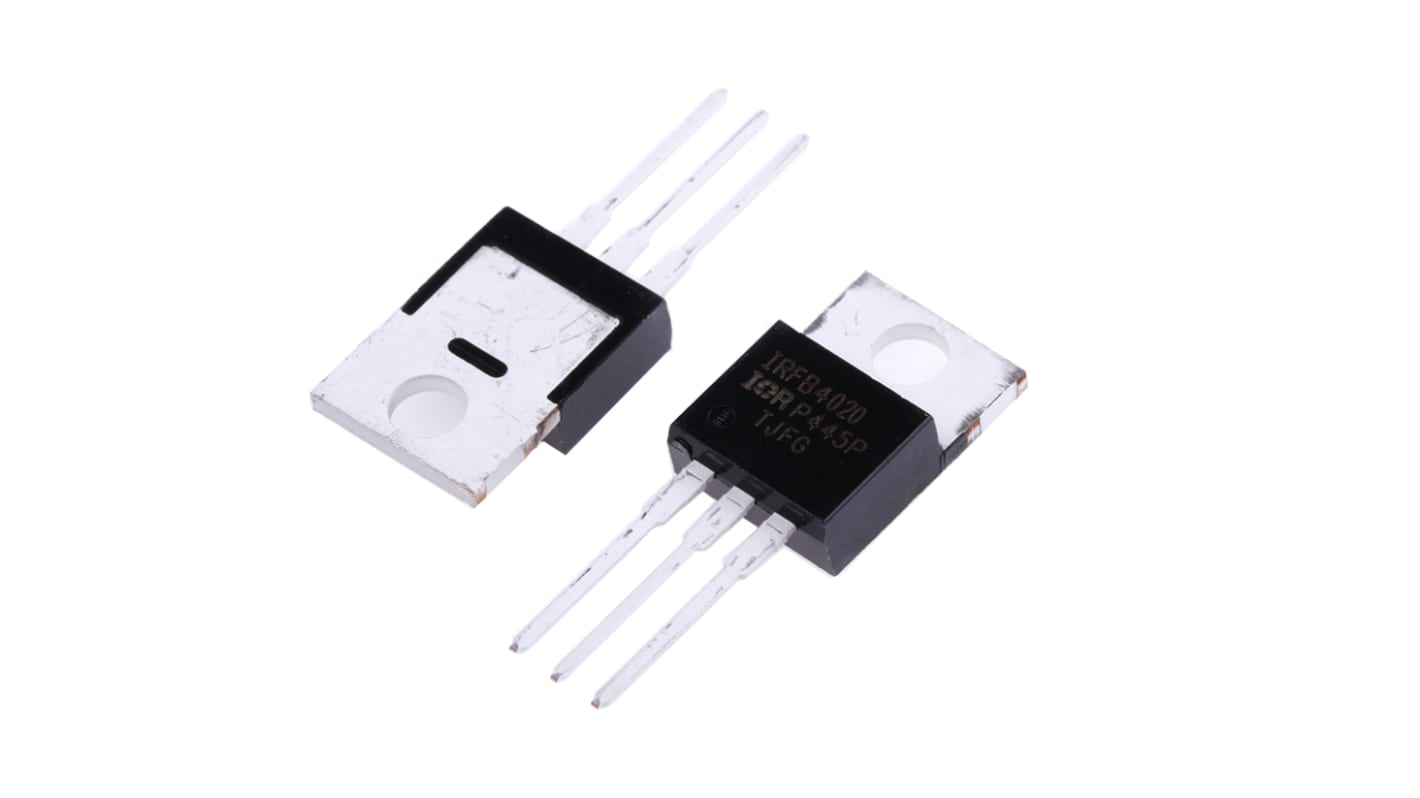

IRFB4020PBF N-Channel MOSFET, 18 A, 200 V HEXFET, 3-Pin TO-220AB Infineon

  • RS Stock No. 688-6939
  • Mfr. Part No. IRFB4020PBF
  • Brand Infineon
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Digital Audio MOSFET, Infineon

Class D amplifiers are fast becoming the preferred solution for professional and home audio and video systems. Infineon offers a comprehensive range that simplify high-efficiency Class D amplifier design.

MOSFET Transistors, Infineon

Infineon offers a large and comprehensive portfolio of MOSFET devices which includes the CoolMOS, OptiMOS and StrongIRFET families. They deliver best-in-class performance to bring more efficiency, power density and cost effectiveness. Designs requiring high quality and enhanced protection features benefit from AEC-Q101 industry standards Automotive qualified MOSFETs.

Specifications
Attribute Value
Channel Type N
Maximum Continuous Drain Current 18 A
Maximum Drain Source Voltage 200 V
Maximum Drain Source Resistance 100 mΩ
Maximum Gate Threshold Voltage 4.9V
Minimum Gate Threshold Voltage 3V
Maximum Gate Source Voltage -20 V, +20 V
Package Type TO-220AB
Mounting Type Through Hole
Pin Count 3
Transistor Configuration Single
Channel Mode Enhancement
Category Power MOSFET
Maximum Power Dissipation 100 W
Minimum Operating Temperature -55 °C
Typical Gate Charge @ Vgs 18 nC @ 10 V
Typical Input Capacitance @ Vds 1200 pF@ 50 V
Typical Turn-Off Delay Time 16 ns
Typical Turn-On Delay Time 7.8 ns
Transistor Material Si
Number of Elements per Chip 1
Width 4.82mm
Height 9.02mm
Dimensions 10.66 x 4.82 x 9.02mm
Length 10.66mm
Maximum Operating Temperature +175 °C
Series HEXFET
65 In stock for FREE next working day delivery
Price Each (In a Pack of 5)
£ 1.258
(exc. VAT)
£ 1.51
(inc. VAT)
Units
Per unit
Per Pack*
5 - 20
£1.258
£6.29
25 - 45
£1.00
£5.00
50 - 95
£0.884
£4.42
100 - 245
£0.766
£3.83
250 +
£0.75
£3.75
*price indicative
