- RS Stock No.:
- 188-4903
- Mfr. Part No.:
- SISS42LDN-T1-GE3
- Brand:
- Vishay
Discontinued product
- RS Stock No.:
- 188-4903
- Mfr. Part No.:
- SISS42LDN-T1-GE3
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
Product Details
N-Channel 100 V (D-S) MOSFET.
TrenchFET® Gen IV power MOSFET
Very low RDS x Qg figure-of-merit (FOM)
Tuned for the lowest RDS x Qoss FOM
Very low RDS x Qg figure-of-merit (FOM)
Tuned for the lowest RDS x Qoss FOM
Specifications
Attribute | Value |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 39 A |
Maximum Drain Source Voltage | 100 V |

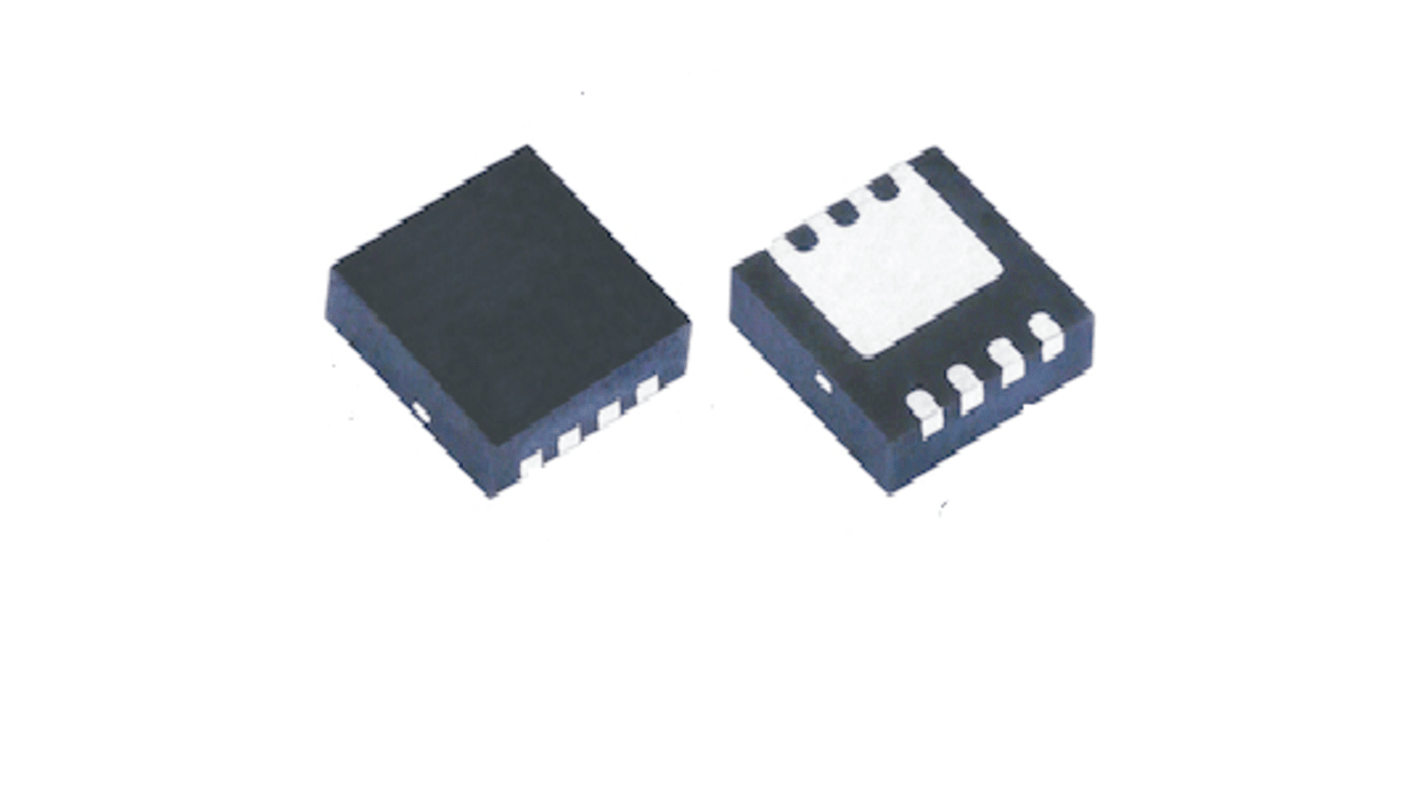

Package Type | PowerPAK 1212-S |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 18 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.5V |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 57 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±20 V |
Number of Elements per Chip | 1 |
Maximum Operating Temperature | +150 °C |
Typical Gate Charge @ Vgs | 32 nC @ 10 V |
Length | 3.3mm |
Width | 3.3mm |
Minimum Operating Temperature | -55 °C |
Forward Diode Voltage | 1.1V |
Height | 0.78mm |
