IR Security And Safety Deadlock Cylinder

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): TR
Product Details

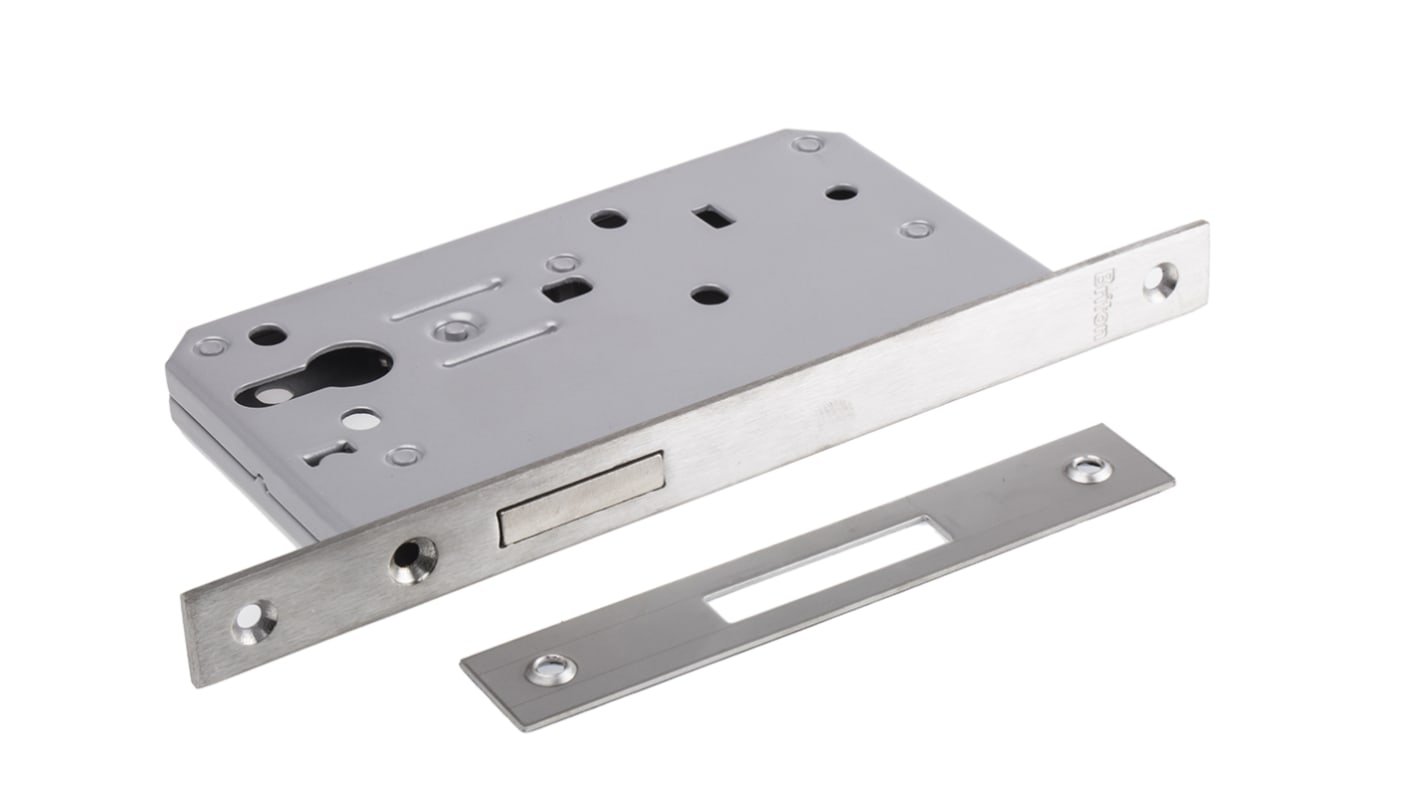

Euro Profile Cylinder Locks

Silver powder coated mild steel case with satin nickel plated die cast zinc bolt and latch
Satin finish, stainless steel forend and strike
Designed to match the dimensional characteristics of DIN 18251 with follower to cylinder centres at 72mm. Case pierced to accept bolt through fixings at 38-41mm centres at the follower and the cylinder position
60 mm backset
Deadbolt can be thrown and withdrawn from one or both sides as required depending on the cylinder used
Quick reversible latch on sashlock
Sashlock cylinder to latch function will operate both deadbolt and latch
Sashlock suitable for lever handles with 8mm spindle

Standards

BS8300, EN 12 209

//media.rs-online.com/t_line/L491323-01.gif
Specifications
Attribute Value
Lock Mechanism Cylinder
Forend Finish Stainless Steel
Case Material Steel
Case Height 165mm
Case Depth 93mm
Forend Dimensions 235 x 20mm
Forend Height 235mm
Forend Width 20mm
2 In stock - FREE next working day delivery available
Price Each
£ 24.89
(exc. VAT)
£ 29.87
(inc. VAT)
Units
Per unit
1 +
£24.89
