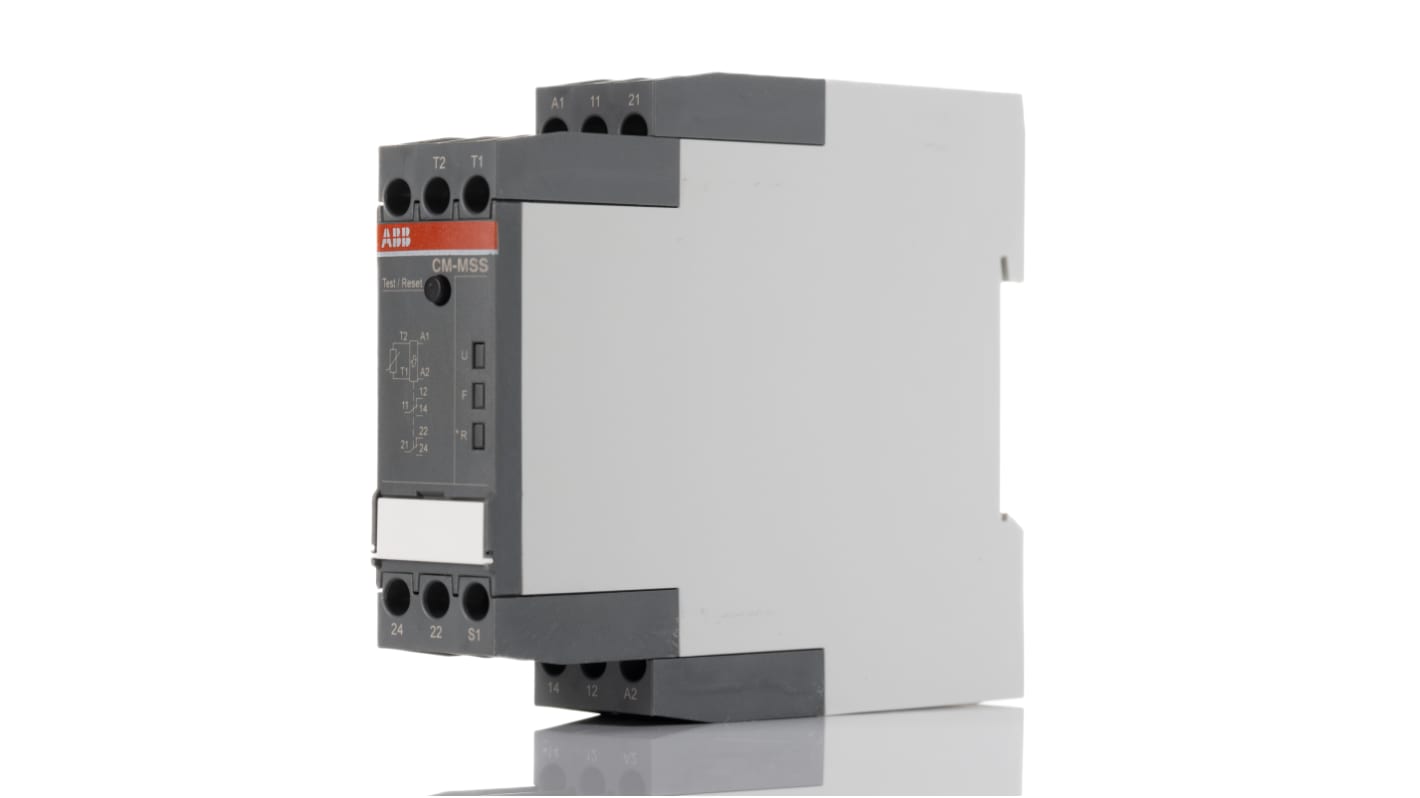

ABB Temperature Monitoring Relay, DPDT, DIN Rail
- RS Stock No.:
- 876-5045
- Mfr. Part No.:
- 1SVR730712R1200 CM-MSS.41S
- Brand:
- ABB
4 In stock - FREE next working day delivery available
Added
Price Each
£138.25
(exc. VAT)
£165.90
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £138.25 |
| 5 - 9 | £131.34 |
| 10 - 24 | £124.42 |
| 25 - 49 | £117.52 |
| 50 + | £110.60 |
- RS Stock No.:
- 876-5045
- Mfr. Part No.:
- 1SVR730712R1200 CM-MSS.41S
- Brand:
- ABB
Legislation and Compliance
Product Details
ABB Monitoring Relay, 24 to 240V AC/DC Rated Control Supply Voltage, Thermistor Motor Protection Type - CM-MSS Series - 1SVR730712R1200 CM-MSS.41S
Make sure your motor doesn't break a sweat in demanding applications by using this monitoring relay from ABB. The device cuts the circuit in your motor when it senses that the equipment's windings are too hot, preventing damage and breakdowns. Thanks to its compact dimensions of just 103.7 (L) x 22.5 (W) x 85.6mm (H), this unit fits snugly into tight work areas. A broad operating temperature range between -25°C and +60°C means it can hold up under harsh conditions.
Features & Benefits
• Clips onto a DIN rail for snappy mounting
• Mechanical durability of 30 million cycles for long-lasting performance
• Light weight of 141g to place minimal strain on your system
• Rated control supply voltage of 24 to 240V AC/DC for versatility
• Mechanical durability of 30 million cycles for long-lasting performance
• Light weight of 141g to place minimal strain on your system
• Rated control supply voltage of 24 to 240V AC/DC for versatility
Applications
• HVAC equipment
• Automotive manufacturing
• Power tools
• Lifts and escalators
• Automotive manufacturing
• Power tools
• Lifts and escalators
Does this unit carry an IP rating?
Yes, the unit's terminals have an IP20 rating, which means they're touch-proof and protected against tools and wires larger than 12mm in size.
Specifications
Attribute | Value |
|---|---|
| Monitoring Application | Temperature |
| Contact Configuration | DPDT |
| Mounting Type | DIN Rail |
| Time Delay | <100ms |
| Frequency Sensing Range | 50 → 60Hz |
| Temperature Sensitivity | Overtemperature, Winding Temperature |
| Hazardous Area Certification | ATEX |
| Series | CM-MSS |
| Dimensions | 103.7 x 22.5 x 85.6mm |
| Width | 22.5mm |
| Terminal Type | Screw |
| Current Range | Maximum of 3.7mA |
| Minimum Frequency Sensed | 50Hz |
| Length | 103.7mm |
| Height | 85.6mm |
| Operating Temperature Range | -25 → +60°C |
| Minimum Operating Temperature | -25°C |
| Number of Poles | 1 |
| Standards Met | UL |
| Special Features | Fail-Safe, Inbuilt PTC Sensor, Insufficient Cooling Protection, Manual & Automatic Reset, Non-Volatile Fault Storage, One Measuring Circuit, Over Heating Protection, Over Load Protection, Remote Reset, Short-Circuit Monitoring of the Sensor Circuit |
| Maximum Operating Temperature | +60°C |
