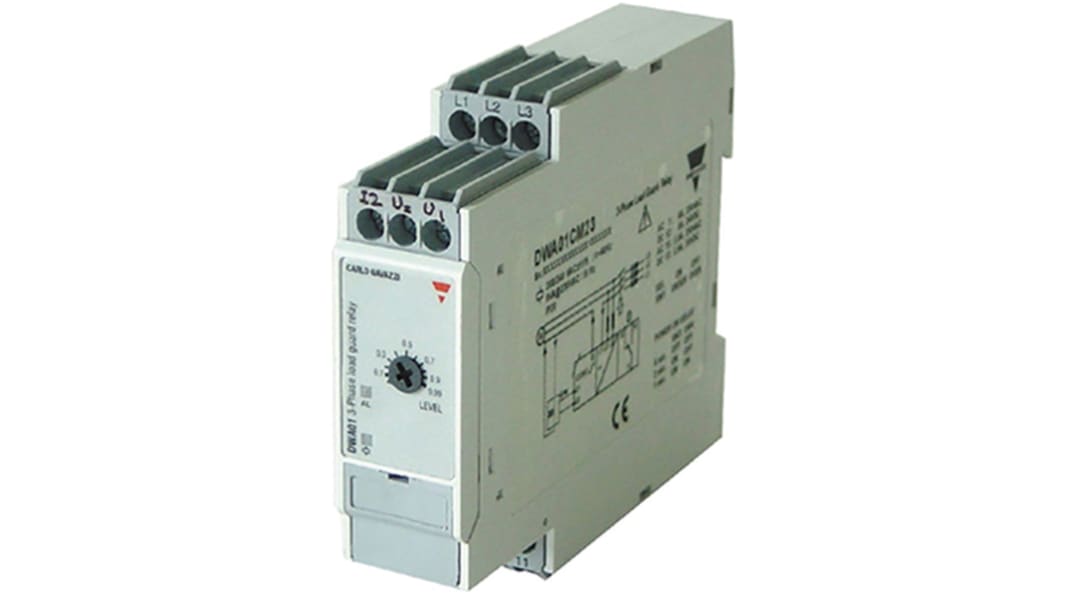

Carlo Gavazzi Power Factor Monitoring Relay, 3 Phase, SPDT, DIN Rail
- RS Stock No.:
- 859-3080
- Mfr. Part No.:
- DWA01CM485A
- Brand:
- Carlo Gavazzi
1 In stock - FREE next working day delivery available
Added
Price Each
£172.05
(exc. VAT)
£206.46
(inc. VAT)
| Units | Per unit |
| 1 - 2 | £172.05 |
| 3 + | £165.04 |
- RS Stock No.:
- 859-3080
- Mfr. Part No.:
- DWA01CM485A
- Brand:
- Carlo Gavazzi
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- IT
Product Details
3 Phase Load Guard Monitoring Relay
Carlo Gavazzi DWB01 & PWB01 series of precise TRMS power factor monitoring relays deisgned for use with 3 phase systems. Suitable for monitoring the actual load of asynchronous & symmetrical loads where proportional load & power factor is present. DWP01 & PWB01 series of monitoring relays feature a start/stop input allowing use of a manual switch to control the motor without any auxiliary device.
Another great feature of the DWB01 & PWB01 series is a latch function which enables the relays to be kept energised even after the alarm has finished
Another great feature of the DWB01 & PWB01 series is a latch function which enables the relays to be kept energised even after the alarm has finished
DIN rail (DWB01 series) and plug-in module (PWB01 series) variants available
TRMS load guard relays for 3 phase balanced applications
Power factor measurement within set parameters
Programmable latching or inhibit features
1 - 30 Seconds knob adjustable power ON delay
LEDs for relay, alarm & power indication
TRMS load guard relays for 3 phase balanced applications
Power factor measurement within set parameters
Programmable latching or inhibit features
1 - 30 Seconds knob adjustable power ON delay
LEDs for relay, alarm & power indication
Specifications
Attribute | Value |
|---|---|
| Monitoring Application | Power Factor |
| Electrical Phase | 3 |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Time Delay | 1 s, 2 s, 6s |
| Series | DWA01 |
| Minimum Operating Temperature | -20°C |
| Width | 22.5mm |
| Dimensions | 99.5 x 22.5 x 80mm |
| Height | 80mm |
| Length | 99.5mm |
