Broyce Control L-Series Phase, Voltage Monitoring Relay With SPDT Contacts, 280 → 520 V ac

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

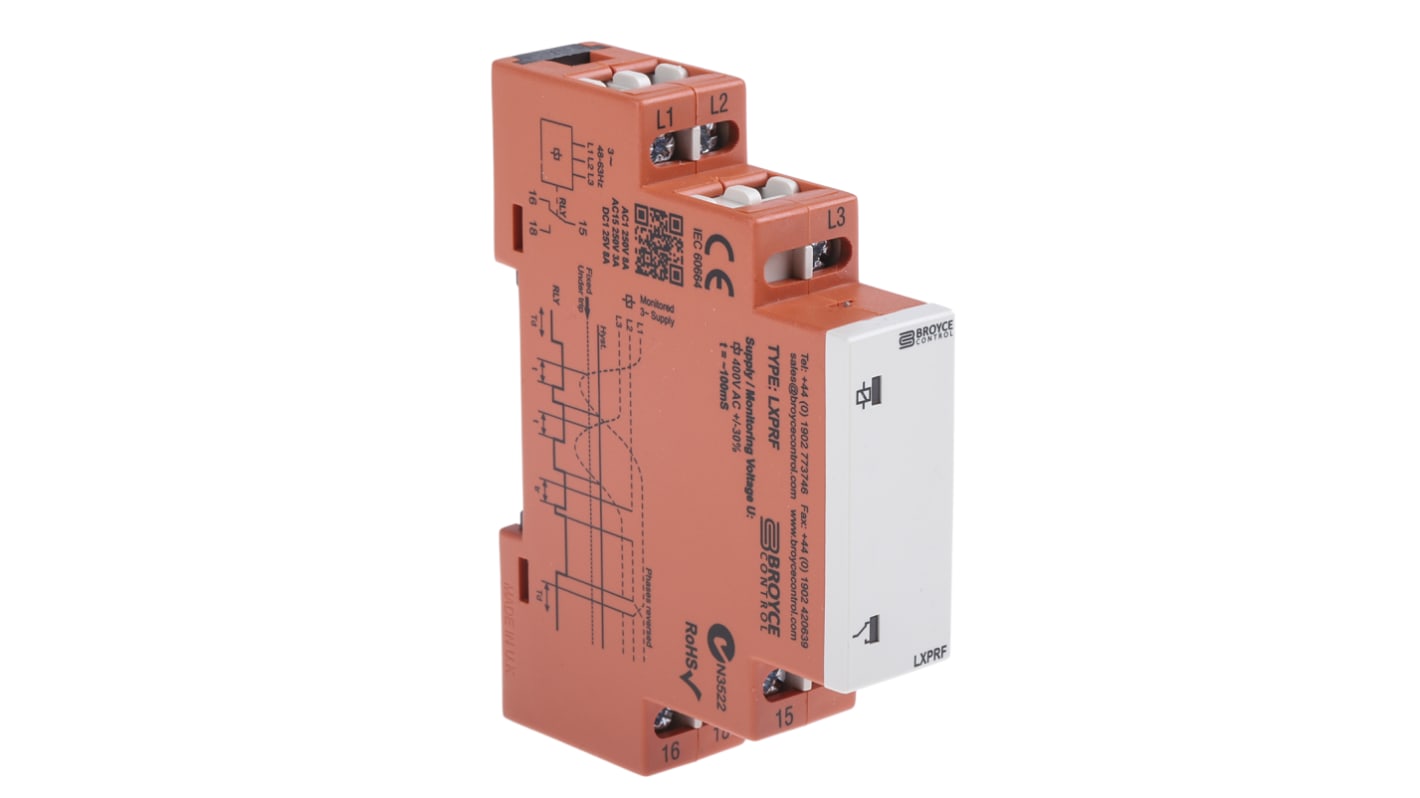

LX Series - Three Phase Relays

L Series relay range of timers, control and three phase relays incorporate the latest technology and offer a wide range of user adjustable features.

17.5mm DIN rail housing
Microprocessor based
Measures phase to phase voltages
1 x SPDT relay output 8A
Green LED indication for supply status
Red LED indication for relay status

Approvals

UL Certification

Specifications
Attribute Value
Monitoring Application Phase, Voltage
Supply Voltage 280 → 520 V ac
Contact Configuration SPDT
Voltage Sensitivity Undervoltage
Voltage Sensing Range Maximum of 520 V
Phase Sensitivity Phase Failure
Time Delay 100 ms
Minimum Operating Temperature -20°C
Dimensions 17.5 x 89 x 66.5 mm
Series L-Series
Width 17.5mm
Height 89mm
Maximum Operating Temperature +60°C
Operating Temperature Range -20 → +60 °C
Special Features Time Delay
Mounting Type DIN Rail
Length 66.5mm
Terminal Type Screw
Standards Met IEC 60664
Current Range Maximum of 8 A
60 In stock for FREE next working day delivery
Price Each
£ 48.17
(exc. VAT)
£ 57.80
(inc. VAT)
Units
Per unit
1 - 2
£48.17
3 +
£46.20
