- RS Stock No.:
- 358-7639
- Mfr. Part No.:
- IK 9270.11 AC 220-240V 0.1-15A Tv = 0.1-20S
- Brand:
- Dold
2 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£174.65
(exc. VAT)
£209.58
(inc. VAT)
Units | Per unit |
1 + | £174.65 |
- RS Stock No.:
- 358-7639
- Mfr. Part No.:
- IK 9270.11 AC 220-240V 0.1-15A Tv = 0.1-20S
- Brand:
- Dold
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

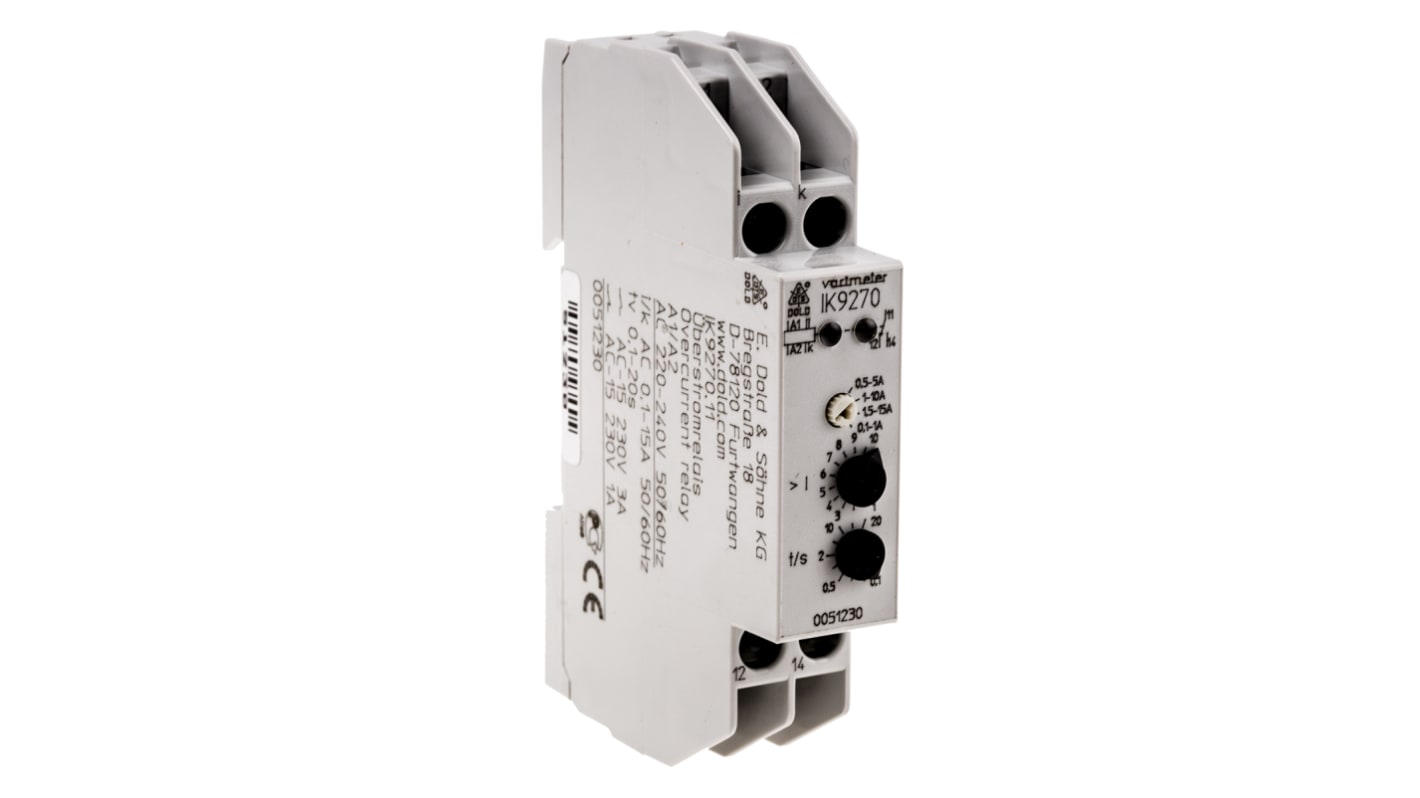

IK9270 one-phase overcurrent relay
Use: overcurrent monitoring in DC and AC current networks
Four measurement ranges that can be set via a rotary switch
Adjustable response value, fixed hysteresis
Adjustable switching delay
Rest current principle
LED display for associated auxiliary voltage and activated output relay
230 VAC auxiliary voltage
Auxiliary and measurement ranges, galvanically isolated
Conforms with IEC 255, VDE 0435 part 303
Four measurement ranges that can be set via a rotary switch
Adjustable response value, fixed hysteresis
Adjustable switching delay
Rest current principle
LED display for associated auxiliary voltage and activated output relay
230 VAC auxiliary voltage
Auxiliary and measurement ranges, galvanically isolated
Conforms with IEC 255, VDE 0435 part 303
Specifications
Attribute | Value |
---|---|
Monitoring Application | Current |
Electrical Phase | 1 |
Contact Configuration | SPDT |
Mounting Type | DIN Rail |
Minimum Current Sensed | 0.1A |
Maximum Current Sensed | 15A |
Current Sensitivity | Overcurrent |
Time Delay | 0.1 → 20s |
Series | IK 9270 |
Minimum Operating Temperature | -20°C |
Current Range | 0.1 → 1 A, 0.5 → 5 A, 1 → 10 A, 1.5 → 15A |
Operating Temperature Range | +60°C |
Width | 17.5mm |
Height | 90mm |
Dimensions | 61 x 17.5 x 90mm |
Length | 61mm |
Maximum Operating Temperature | +60°C |
