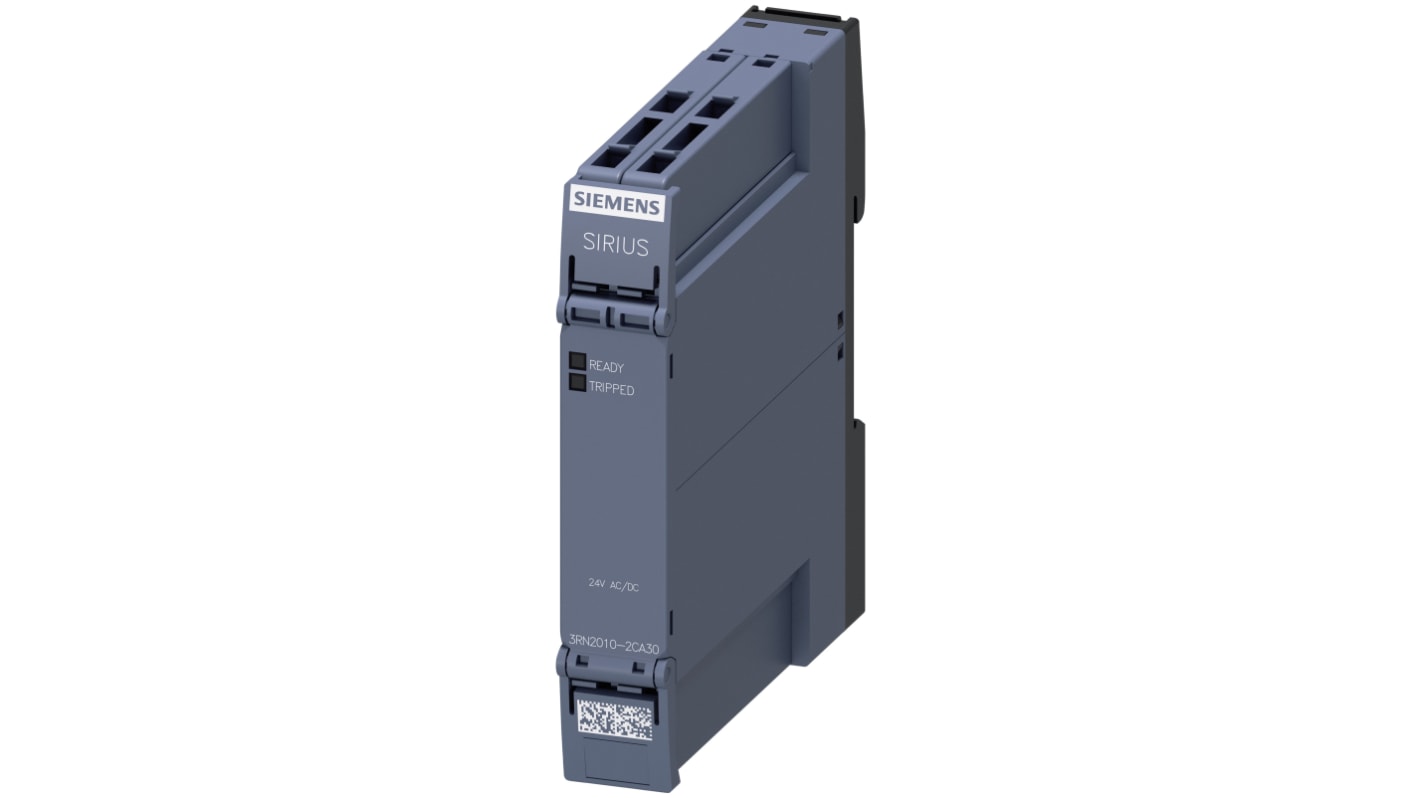

Siemens Thermistor Motor Protection Monitoring Relay With SPDT Contacts, 24 V ac/dc Supply Voltage, Motor Voltage

  • RS Stock No. 175-2279
  • Mfr. Part No. 3RN2010-2CA30
  • Brand Siemens
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Thermistor motor protection relay Compact evaluation unit 17.5 mm enclosure Spring-type terminal 1 NO contact, 1 NC contact US = 24 V AC/DC Auto RESET suitable for bimetallic switch 2 LEDs (Ready/Tripped) galvanic isolation

Specifications
Attribute Value
Monitoring Application Thermistor motor temperature protection
Supply Voltage 24 V ac/dc
Contact Configuration SPDT
Voltage Sensitivity Motor Voltage
Length 17.5mm
Width 91.6mm
Operating Temperature Range -25 → +60 °C
Terminal Type Cage Clamp
Mounting Type DIN Rail
Height 100mm
Series 3RN2
Dimensions 17.5 x 91.6 x 100 mm
Maximum Operating Temperature +60°C
Minimum Operating Temperature -25°C
2 In stock for delivery within 1 working days
Price Each
£ 52.96
(exc. VAT)
£ 63.55
(inc. VAT)
Units
Per unit
1 - 4
£52.96
5 +
£50.31
Not available for guaranteed pre 9am/10am delivery
