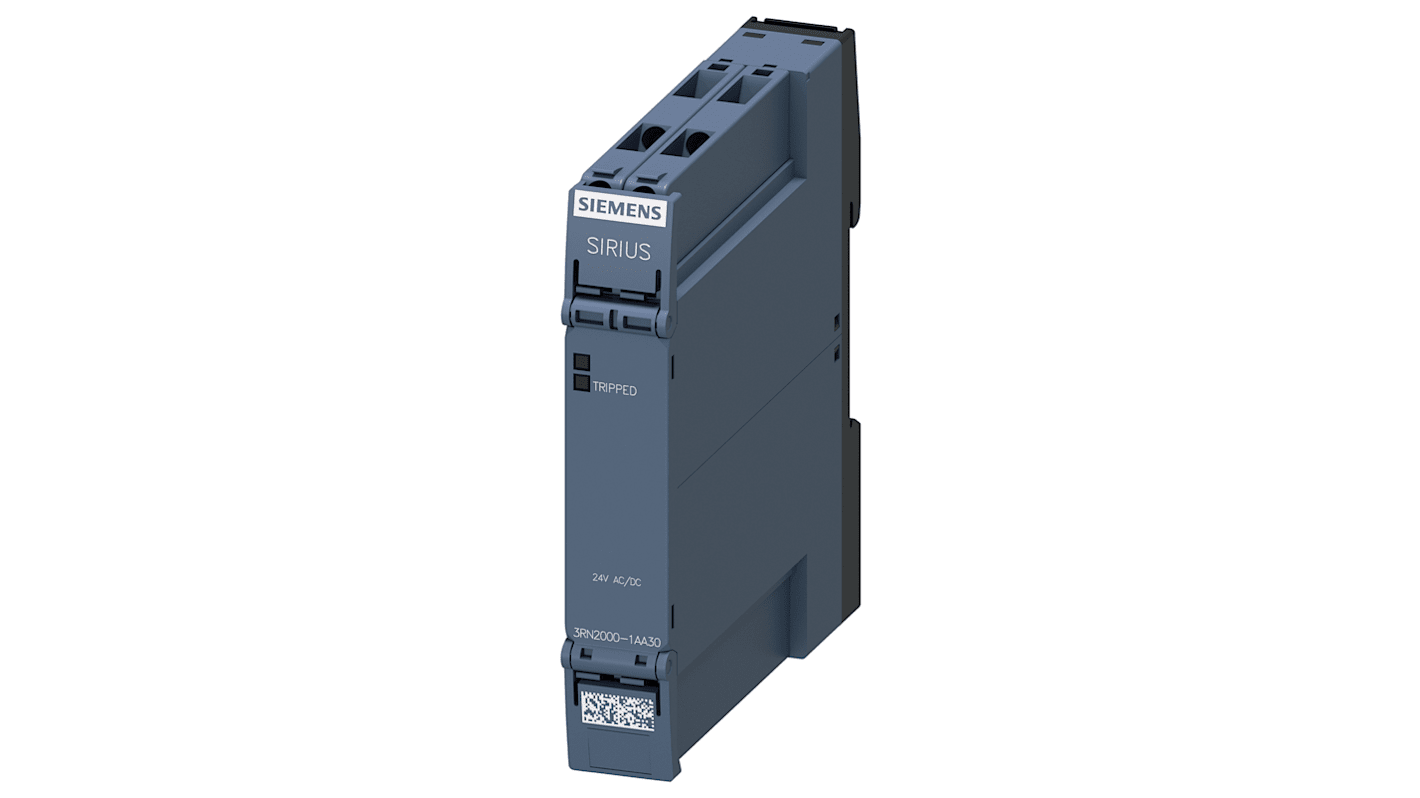

Siemens Thermistor Motor Protection Monitoring Relay With SPDT Contacts, 24 V ac/dc Supply Voltage, Motor Voltage

  • RS Stock No. 175-2269
  • Mfr. Part No. 3RN2000-1AA30
  • Brand Siemens
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Thermistor motor protection relay Compact evaluation unit 17.5 mm enclosure screw terminal 1 change-over contact US = 24 V AC/DC Auto-reset suitable for bimetallic switch Supply =output voltage 1 LED (READY)

Specifications
Attribute Value
Monitoring Application Thermistor motor temperature protection
Supply Voltage 24 V ac/dc
Contact Configuration SPDT
Voltage Sensitivity Motor Voltage
Maximum Operating Temperature +60°C
Dimensions 17.5 x 91.6 x 100 mm
Width 91.6mm
Operating Temperature Range -25 → +60 °C
Mounting Type DIN Rail
Terminal Type Screw
Height 100mm
Series 3RN2
Length 17.5mm
Minimum Operating Temperature -25°C
10 In stock - FREE next working day delivery available
13 available from Europe for delivery within 1 working day(s)
Price Each
£ 41.69
(exc. VAT)
£ 50.03
(inc. VAT)
Units
Per unit
1 - 4
£41.69
5 +
£39.61
