Tele Current Monitoring Relay, 1 Phase, SPDT, DIN Rail
- RS Stock No.:
- 123-9723
- Mfr. Part No.:
- V2IM10AL10
- Brand:
- Tele
1 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£113.50
(exc. VAT)
£136.20
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £113.50 |
| 5 - 9 | £110.10 |
| 10 + | £106.69 |
- RS Stock No.:
- 123-9723
- Mfr. Part No.:
- V2IM10AL10
- Brand:
- Tele
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- AT
Product Details

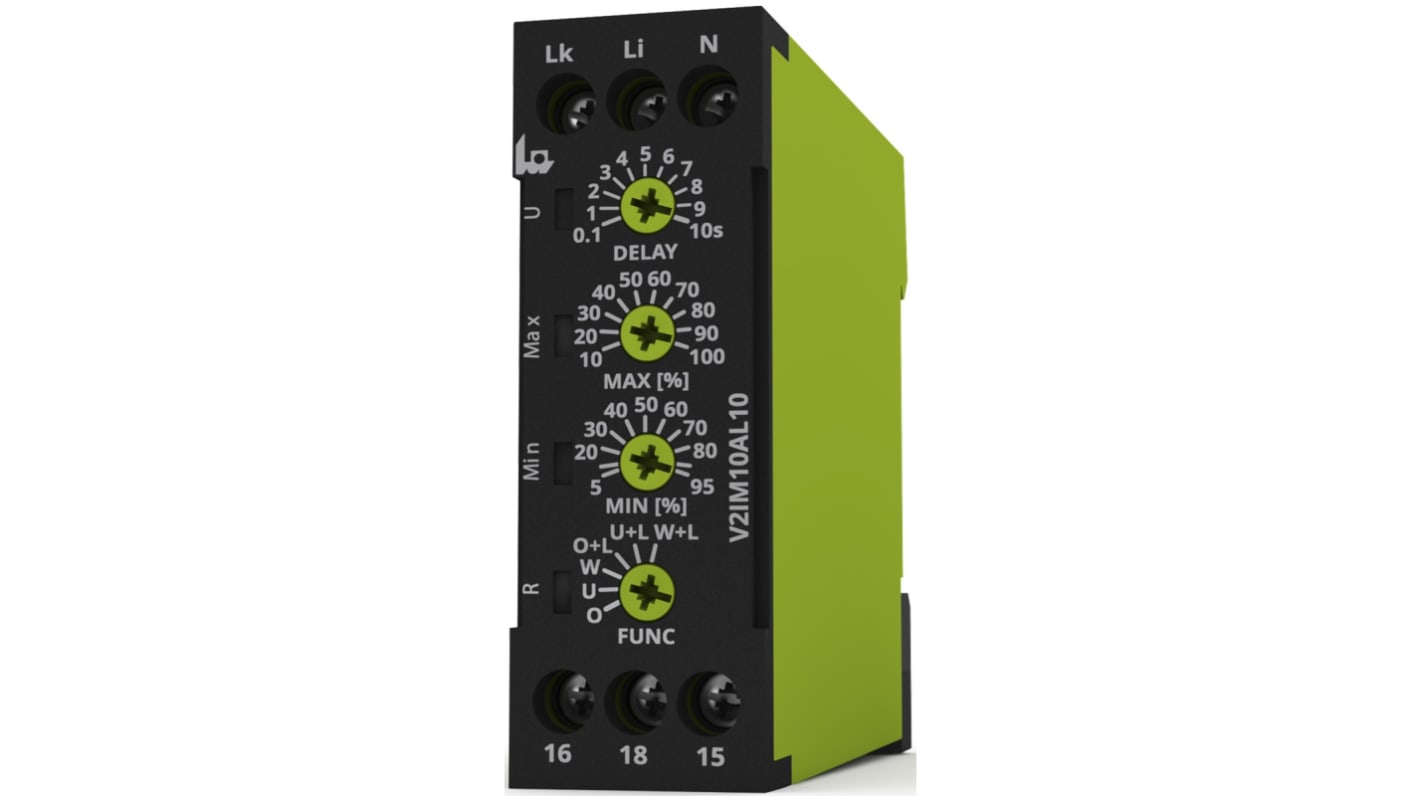

VEO Series Current Monitoring Relay
TELE VEO series AC current monitoring for single phase mains. Featuring overcurrent and undercurrent monitoring and a single change over contact. The VEO series have a self-extinguishing plastic body with an IP rating of IP40 and a DIN-rail TS 35 mounting.
Shock resistant
DIN Rail mount
LED indicator
Screw terminals
Multifunction
2 change over contacts
45 mm width
DIN Rail mount
LED indicator
Screw terminals
Multifunction
2 change over contacts
45 mm width
Telecontrol VEO Monitoring Relays
Specifications
Attribute | Value |
|---|---|
| Monitoring Application | Current |
| Electrical Phase | 1 |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Current Sensitivity | Overcurrent, Undercurrent |
| Time Delay | 0.1 → 10 s, 300ms |
| Frequency Sensing Range | 16.6 → 400Hz |
| Series | VEO |
| Maximum Operating Temperature | +60°C |
| Width | 22.5mm |
| Height | 67mm |
| Minimum Operating Temperature | -25°C |
| Operating Temperature Range | +60°C |
| Dimensions | 76 x 22.5 x 67mm |
| Number of Poles | 1 |
| Length | 76mm |
| Terminal Type | Screw |
