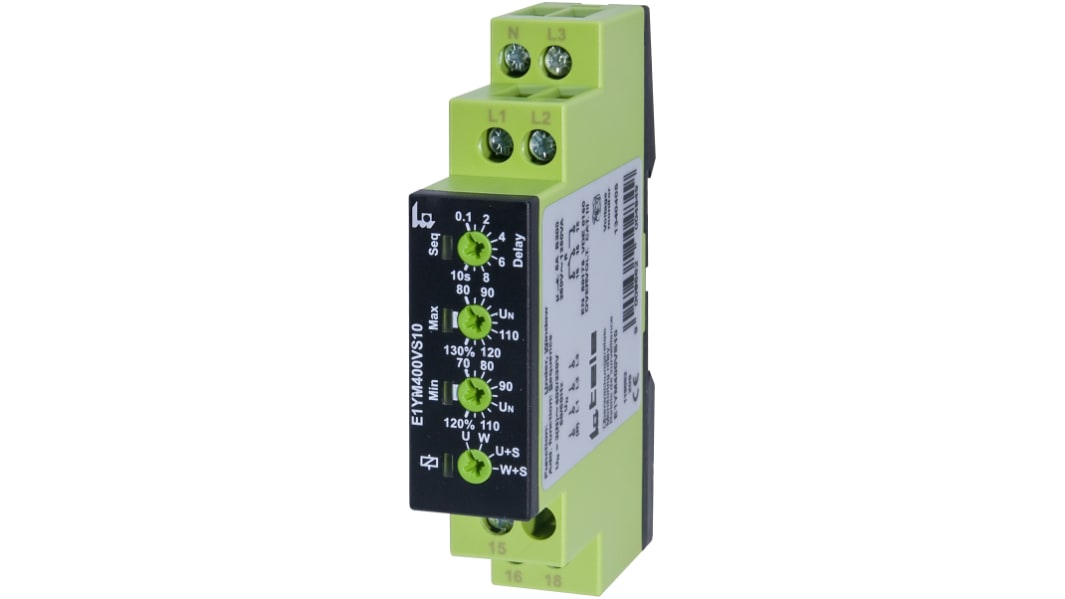

Tele Phase, Voltage Monitoring Relay, 1, 3 Phase, SPDT, Maximum of 400 V, DIN Rail
- RS Stock No.:
- 123-9717
- Mfr. Part No.:
- E1YM400VS10
- Brand:
- Tele
12 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£148.96
(exc. VAT)
£178.75
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £148.96 |
| 5 - 9 | £144.49 |
| 10 + | £140.02 |
- RS Stock No.:
- 123-9717
- Mfr. Part No.:
- E1YM400VS10
- Brand:
- Tele
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- AT
Product Details
ENYA Series Voltage Monitoring Relays
TELE ENYA series AC and DC voltage monitoring relay. Multifunction monitoring in a slim easy to use package. The ENYA series have a self-extinguishing plastic body with an IP rating of IP40.
DIN Rail mount
LED indicator
Screw terminals
1 change over contact
Multifunction
LED indicator
Screw terminals
1 change over contact
Multifunction
Specifications
Attribute | Value |
|---|---|
| Monitoring Application | Phase, Voltage |
| Electrical Phase | 1, 3 |
| Voltage Sensing Range | Maximum of 400 V |
| Contact Configuration | SPDT |
| Voltage Sensitivity | Undervoltage |
| Mounting Type | DIN Rail |
| Phase Sensitivity | Phase Failure, Phase Sequence |
| Time Delay | 0.1 → 10s |
| Series | ENYA |
| Terminal Type | Screw |
| Height | 87mm |
| Width | 65mm |
| Maximum Operating Temperature | +55°C |
| Maximum Voltage Sensed | 400V |
| Length | 17.5mm |
| Dimensions | 17.5 x 65 x 87mm |
| Minimum Operating Temperature | -25°C |
| Number of Poles | 1 |
| Operating Temperature Range | +55°C |
