TDK, 1206 (3216M) 100nF Multilayer Ceramic Capacitor MLCC 50V dc ±5% , SMD CGA5L2NP01H104J160AA

  • RS Stock No. 179-4998
  • Mfr. Part No. CGA5L2NP01H104J160AA
  • Brand TDK
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Features
With a maximum temperature of 150°C and a capacitance change within ±15%, the series is suited for devices that operate in high-temperature environments.
Excellent DC bias properties.
Applications
Automotive applications (engine rooms)
Peripheral circuits of IGDT, SiC, GaN used at high temperature environments
Sensor Module
Smoothing and decoupling applications for other devices that operate at high temperature

Specifications
Attribute Value
Capacitance 100 nF
Voltage 50 V dc
Package/Case 1206 (3216M)
Mounting Type Surface Mount
Dielectric NP0
Tolerance ±5%

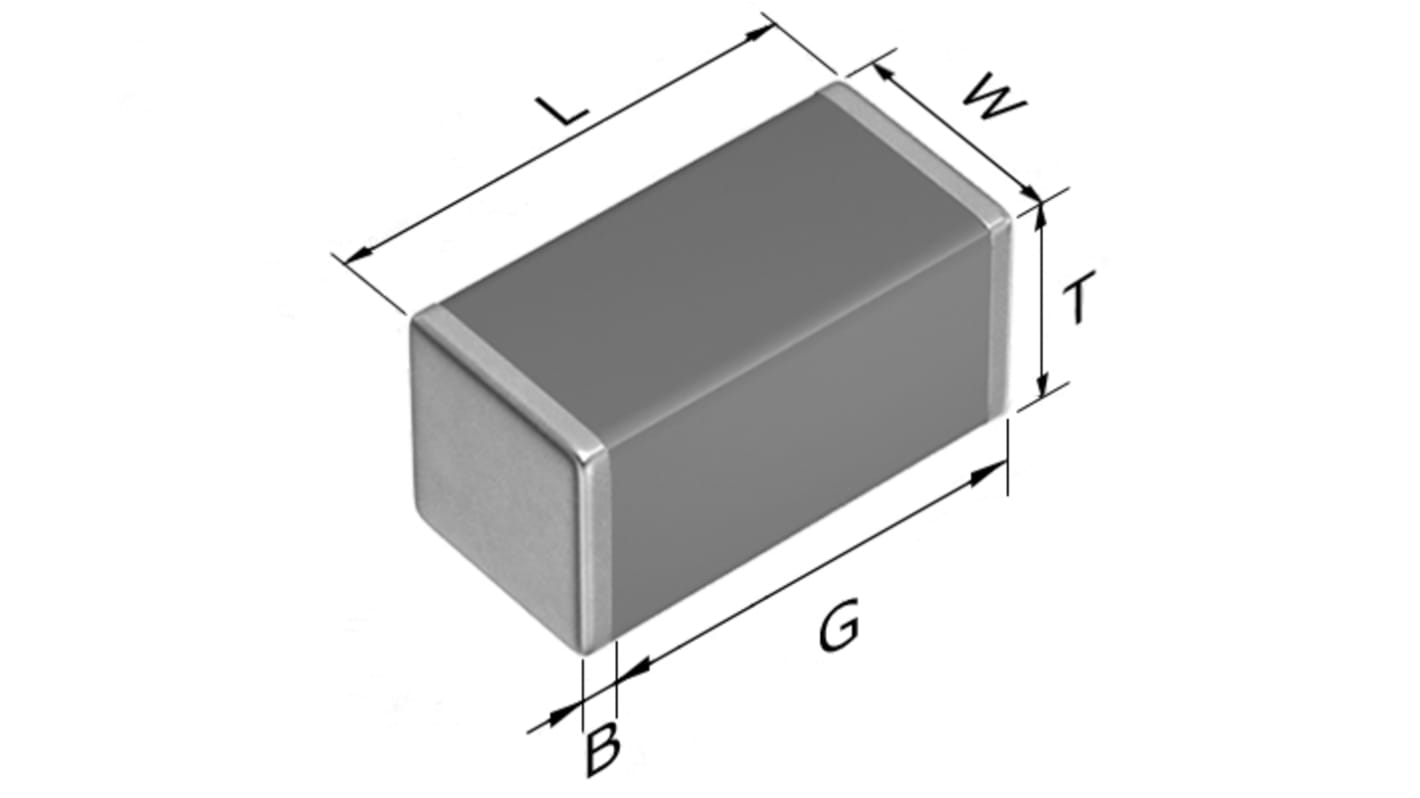

Dimensions 3.2 x 1.6 x 1.6mm
Length 3.2mm
Automotive Standard AEC-Q200
Depth 1.6mm
Height 1.6mm
Series CGA
Minimum Operating Temperature -55°C
Suppression Class Class 1
Maximum Operating Temperature +150°C
2000 In stock - FREE next working day delivery available
Price Each (On a Reel of 2000)
£ 0.129
(exc. VAT)
£ 0.155
(inc. VAT)
Units
Per unit
Per Reel*
2000 - 4000
£0.129
£258.00
6000 +
£0.126
£252.00
*price indicative
