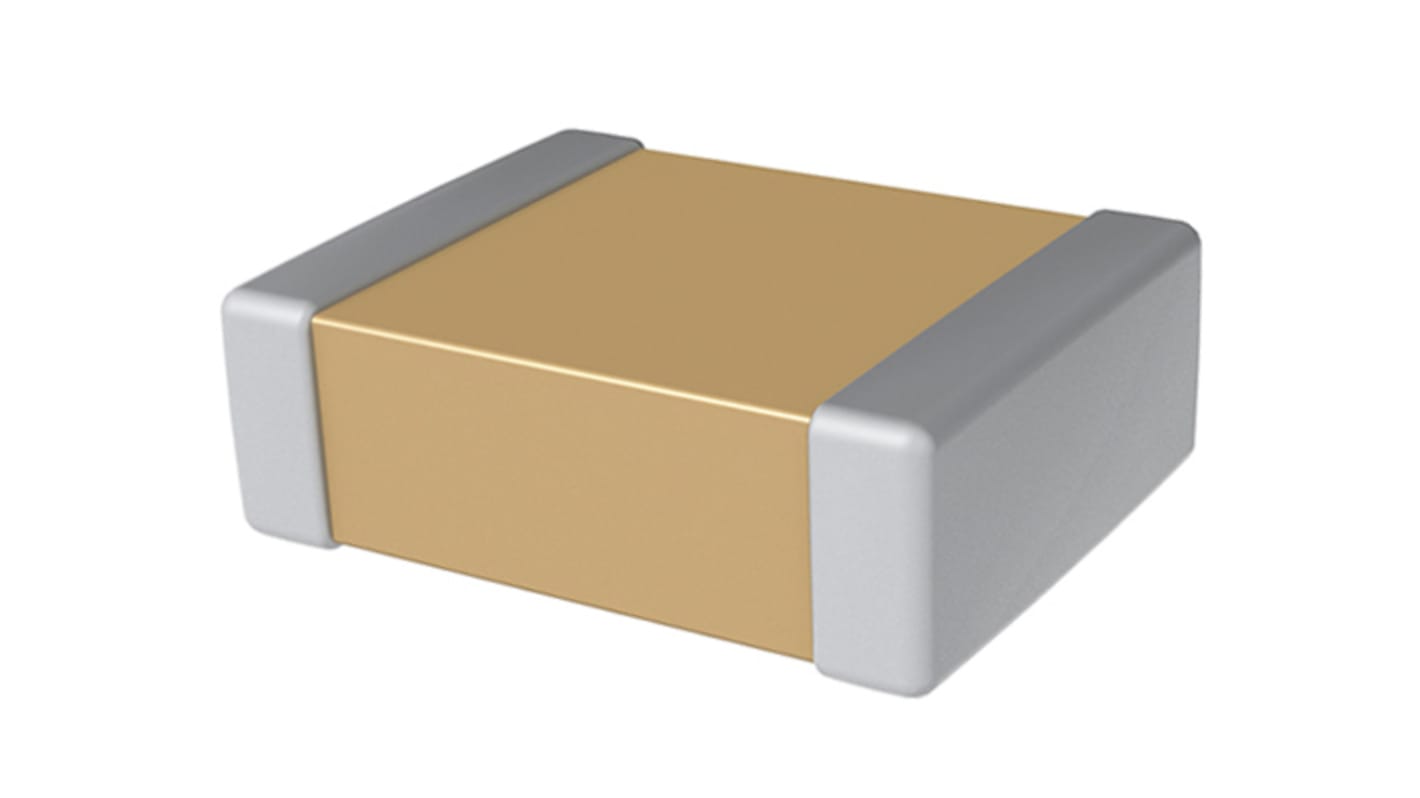

KEMET, 0805 (2012M) 10μF Multilayer Ceramic Capacitor MLCC 6.3V dc ±5% , SMD C0805C106J9RACAUTO

  • RS Stock No. 152-6014
  • Mfr. Part No. C0805C106J9RACAUTO
  • Brand KEMET
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

KEMET’s Automotive Grade Series surface mount capacitors in X7R dielectric are suited for a variety of applications requiring proven, reliable performance in harsh environments. Whether under-hood or in-cabin, these devices emphasize the vital and robust nature of capacitors required for mission and safety critical automotive circuits. Stricter testing protocol and inspection criteria have been established for automotive grade products in recognition of potentially harsh environmental conditions.

AEC–Q200 automotive qualified
Lead (Pb)-free, RoHS and REACH compliant
Capacitance offerings ranging from 10 pF to 22 μF
Available capacitance tolerances of ±5%, ±10%, and ±20%
Non-polar device, minimizing installation concerns
100% pure matte tin-plated termination finish

Specifications
Attribute Value
Capacitance 10 µF
Voltage 6.3 V dc
Package/Case 0805 (2012M)
Mounting Type Surface Mount
Dielectric X7R
Tolerance ±5%
Dimensions 2 x 1.25 x 1.25mm
Length 2mm
Automotive Standard AEC-Q200
Depth 1.25mm
Height 1.25mm
Series C
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C
Available to back order for despatch 12/01/2021
Price Each (On a Reel of 2500)
£ 0.173
(exc. VAT)
£ 0.208
(inc. VAT)
Units
Per unit
Per Reel*
2500 +
£0.173
£432.50
*price indicative
