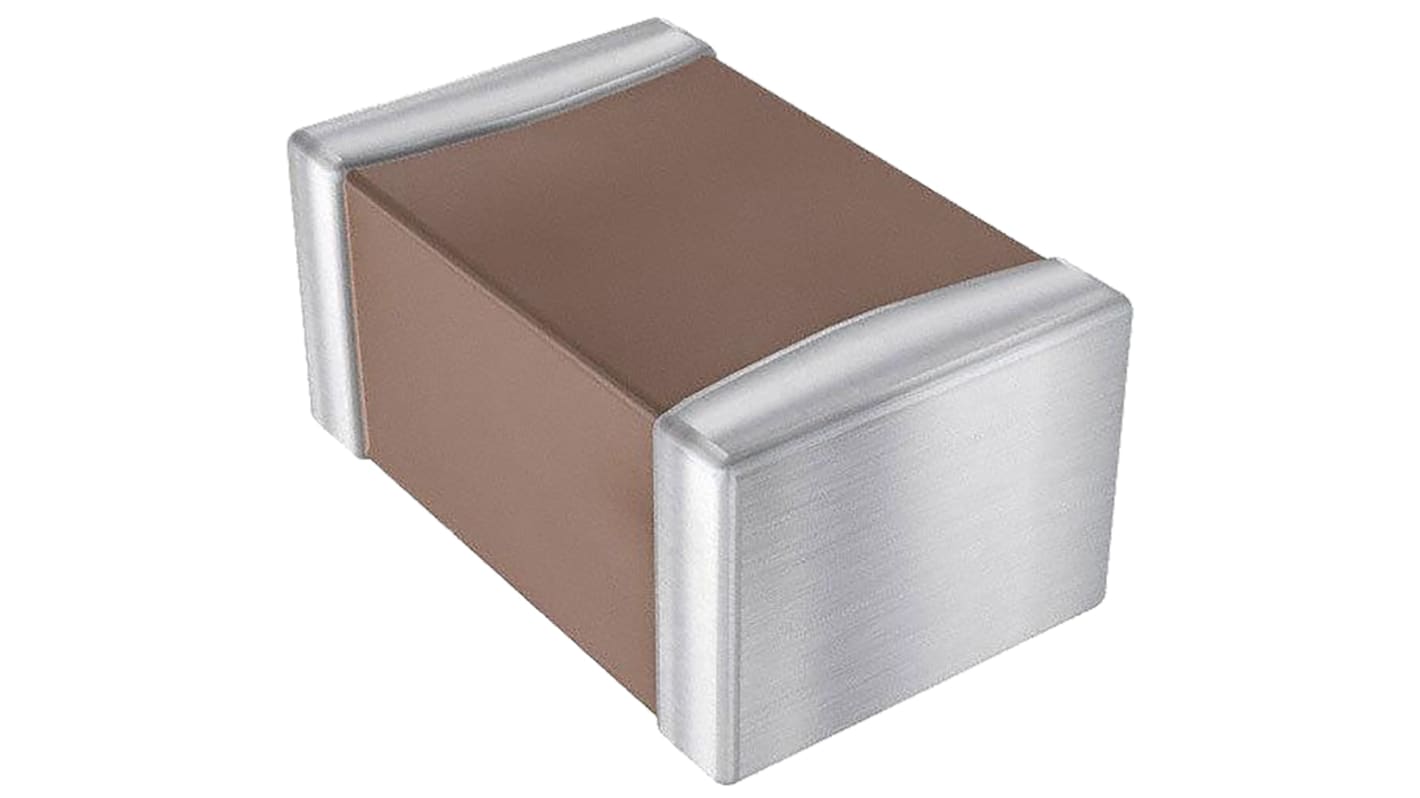

KYOCERA AVX 18pF Multilayer Ceramic Capacitor MLCC, 100V dc V, ±5% , SMD
- RS Stock No.:
- 144-4482
- Mfr. Part No.:
- 08051A180JAT2A
- Brand:
- KYOCERA AVX
4000 In stock - FREE next working day delivery available
Added
Price Each (On a Reel of 4000)
£0.021
(exc. VAT)
£0.025
(inc. VAT)
| Units | Per unit | Per Reel* |
| 4000 - 8000 | £0.021 | £84.00 |
| 12000 + | £0.02 | £80.00 |
| *price indicative | ||
- RS Stock No.:
- 144-4482
- Mfr. Part No.:
- 08051A180JAT2A
- Brand:
- KYOCERA AVX
Technical Reference
Legislation and Compliance
Product Details
AVX 0805 COG (NPO) Dielectric MLCC Capacitors
This range of AVX COG (NPO) MLCCs (Multilayer Ceramic Capacitors) feature one of the most stable capacitor dielectrics available. The capacitance change with temperature is 0 ±30ppm/°C, which is less than ±0.3% C from -55°C to +125°C. The operating temperature range is 55ºC to +125ºC.
0805 Range
Nickel barrier terminations covered with a layer of plated Tin (NiSn). Applications include mobile phones, video and tuner designs, COG/NPO is the most popular formulation of the "temperature compensating", EIA Class I ceramic materials, X7R, X5R formulations are called "temperature stable" ceramics and fall into the EIA Class II materials, Y5V, Z5U formulations are for general purpose use in a limited temperature range, EIA Class II materials; these characteristics are ideal for decoupling applications.
Specifications
Attribute | Value |
|---|---|
| Capacitance | 18pF |
| Voltage | 100V dc |
| Package/Case | 0805 (2012M) |
| Mounting Type | Surface Mount |
| Dielectric | C0G (NP0) |
| Tolerance | ±5% |
| Dimensions | 2.01 x 1.25 x 0.94mm |
| Length | 2.01mm |
| Depth | 1.25mm |
| Height | 0.94mm |
| Suppression Class | Class I |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
| Terminal Type | Surface Mount |
- RS Stock No.:
- 144-4482
- Mfr. Part No.:
- 08051A180JAT2A
- Brand:
- KYOCERA AVX
