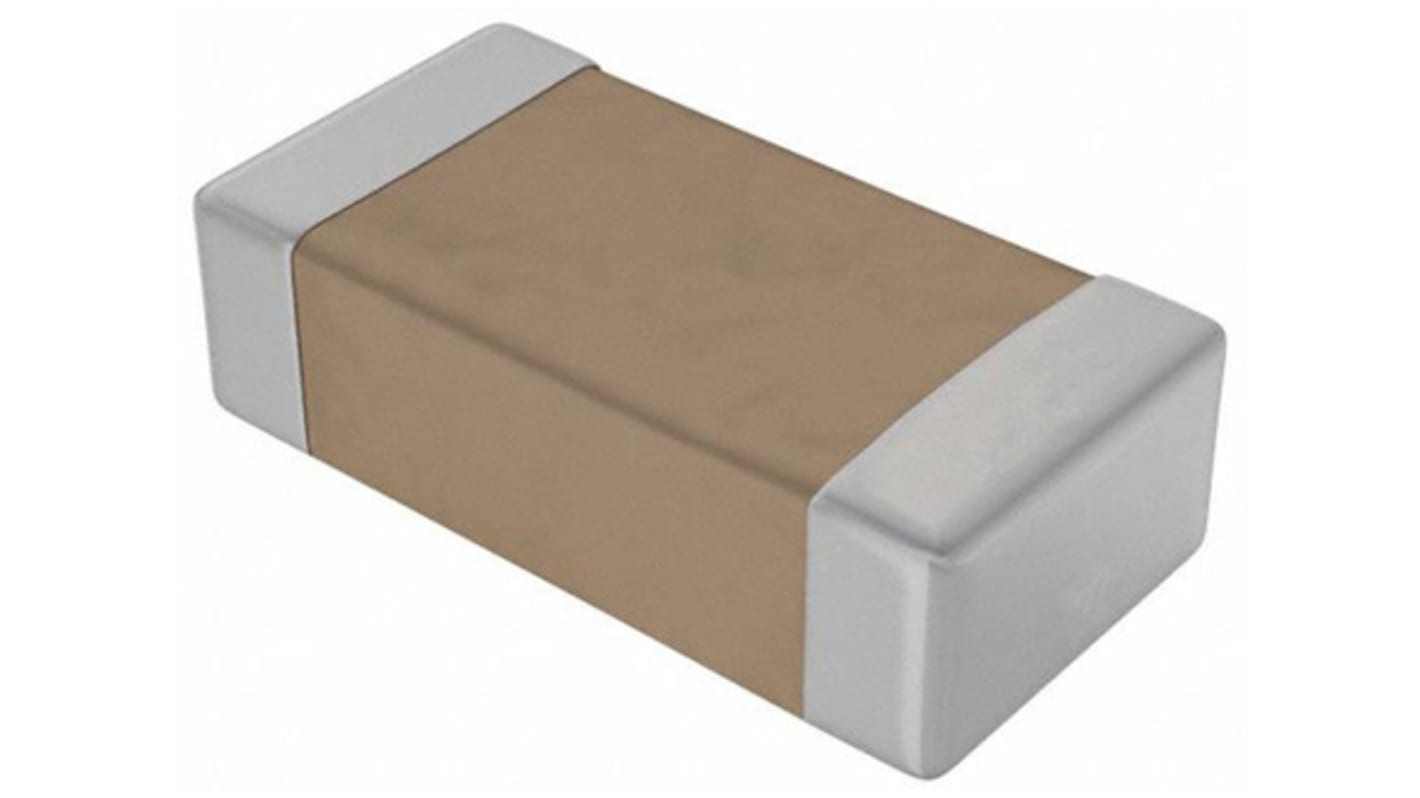

KYOCERA AVX 1.5nF Multilayer Ceramic Capacitor MLCC, 100V dc V, ±5% , SMD
- RS Stock No.:
- 136-4384
- Mfr. Part No.:
- 12061A152JAT2A
- Brand:
- KYOCERA AVX
2650 In stock - FREE next working day delivery available
Added
Price Each (In a Bag of 50)
£0.026
(exc. VAT)
£0.031
(inc. VAT)
| Units | Per unit | Per Bag* |
| 50 + | £0.026 | £1.30 |
| *price indicative | ||
- RS Stock No.:
- 136-4384
- Mfr. Part No.:
- 12061A152JAT2A
- Brand:
- KYOCERA AVX
Technical Reference
Legislation and Compliance
Product Details
AVX COG(NPO) Dielectric Capacitors
AVX COG (NPO) dielectric capacitors offer one of the most stable capacitor dielectrics available.Capacitance change with temperature
Is 0 ±30ppm/°C which is less than ±0.3% C from -55°C to +125°C.Operating Temperature Range 55ºC to +125ºC
Is 0 ±30ppm/°C which is less than ±0.3% C from -55°C to +125°C.Operating Temperature Range 55ºC to +125ºC
1206 Range
C0G (NP0) is the most popular formulation of the "temperature-compensating", EIA Class I ceramic materials
X7R formulations are called "temperature stable" ceramics and fall into EIA Class II materials
Y5V formulations are for general-purpose use in a limited temperature range.These characteristics make Y5V ideal for decoupling applications
X7R formulations are called "temperature stable" ceramics and fall into EIA Class II materials
Y5V formulations are for general-purpose use in a limited temperature range.These characteristics make Y5V ideal for decoupling applications
Specifications
Attribute | Value |
|---|---|
| Capacitance | 1.5nF |
| Voltage | 100V dc |
| Package/Case | 1206 (3216M) |
| Mounting Type | Surface Mount |
| Dielectric | NP0 |
| Tolerance | ±5% |
| Dimensions | 3.2 x 1.6 x 1.27mm |
| Length | 3.2mm |
| Depth | 1.6mm |
| Height | 1.27mm |
| Minimum Operating Temperature | -55°C |
| Terminal Type | Surface Mount |
| Maximum Operating Temperature | +125°C |
| Suppression Class | Class I |
