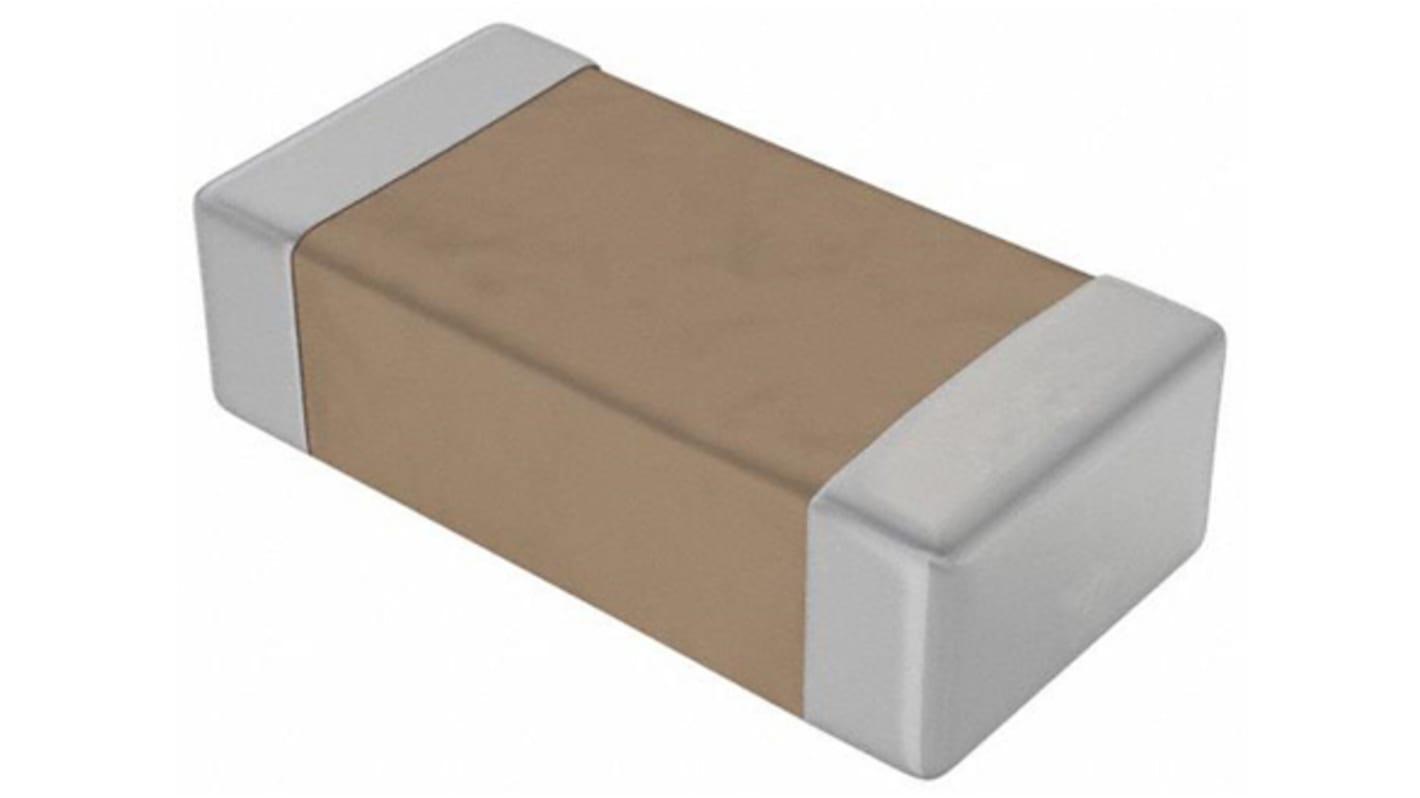

AVX 100pF Multilayer Ceramic Capacitor MLCC, 100V dc V, ±5% , SMD
- RS Stock No.:
- 136-1082
- Mfr. Part No.:
- 12061A101JAT2A
- Brand:
- AVX
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each (On a Reel of 4000)
£0.065
(exc. VAT)
£0.078
(inc. VAT)
| Units | Per unit | Per Reel* |
| 4000 + | £0.065 | £260.00 |
| *price indicative | ||
- RS Stock No.:
- 136-1082
- Mfr. Part No.:
- 12061A101JAT2A
- Brand:
- AVX
Technical Reference
Legislation and Compliance
Product Details
AVX COG(NPO) Dielectric Capacitors
AVX COG (NPO) dielectric capacitors offer one of the most stable capacitor dielectrics available.Capacitance change with temperature
Is 0 ±30ppm/°C which is less than ±0.3% C from -55°C to +125°C.Operating Temperature Range 55ºC to +125ºC
Is 0 ±30ppm/°C which is less than ±0.3% C from -55°C to +125°C.Operating Temperature Range 55ºC to +125ºC
1206 Range
C0G (NP0) is the most popular formulation of the "temperature-compensating", EIA Class I ceramic materials
X7R formulations are called "temperature stable" ceramics and fall into EIA Class II materials
Y5V formulations are for general-purpose use in a limited temperature range.These characteristics make Y5V ideal for decoupling applications
X7R formulations are called "temperature stable" ceramics and fall into EIA Class II materials
Y5V formulations are for general-purpose use in a limited temperature range.These characteristics make Y5V ideal for decoupling applications
Specifications
Attribute | Value |
|---|---|
| Capacitance | 100pF |
| Voltage | 100V dc |
| Package/Case | 1206 (3216M) |
| Mounting Type | Surface Mount |
| Dielectric | NP0 (C0G) |
| Tolerance | ±5% |
| Dimensions | 3.2 x 1.6 x 0.94mm |
| Length | 3.2mm |
| Depth | 1.6mm |
| Height | 0.94mm |
| Minimum Operating Temperature | -55°C |
| Suppression Class | Class I |
| Terminal Type | Surface Mount |
| Maximum Operating Temperature | +125°C |
