- RS Stock No.:
- 521-6121
- Brand:
- RS PRO
78 In stock - FREE next working day delivery available
4 available from Europe for delivery within 1 working day(s).
Added
Price Each
£7.97
(exc. VAT)
£9.56
(inc. VAT)
Units | Per unit |
1 - 4 | £7.97 |
5 - 9 | £7.80 |
10 - 24 | £7.65 |
25 + | £7.49 |
- RS Stock No.:
- 521-6121
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
Product Details

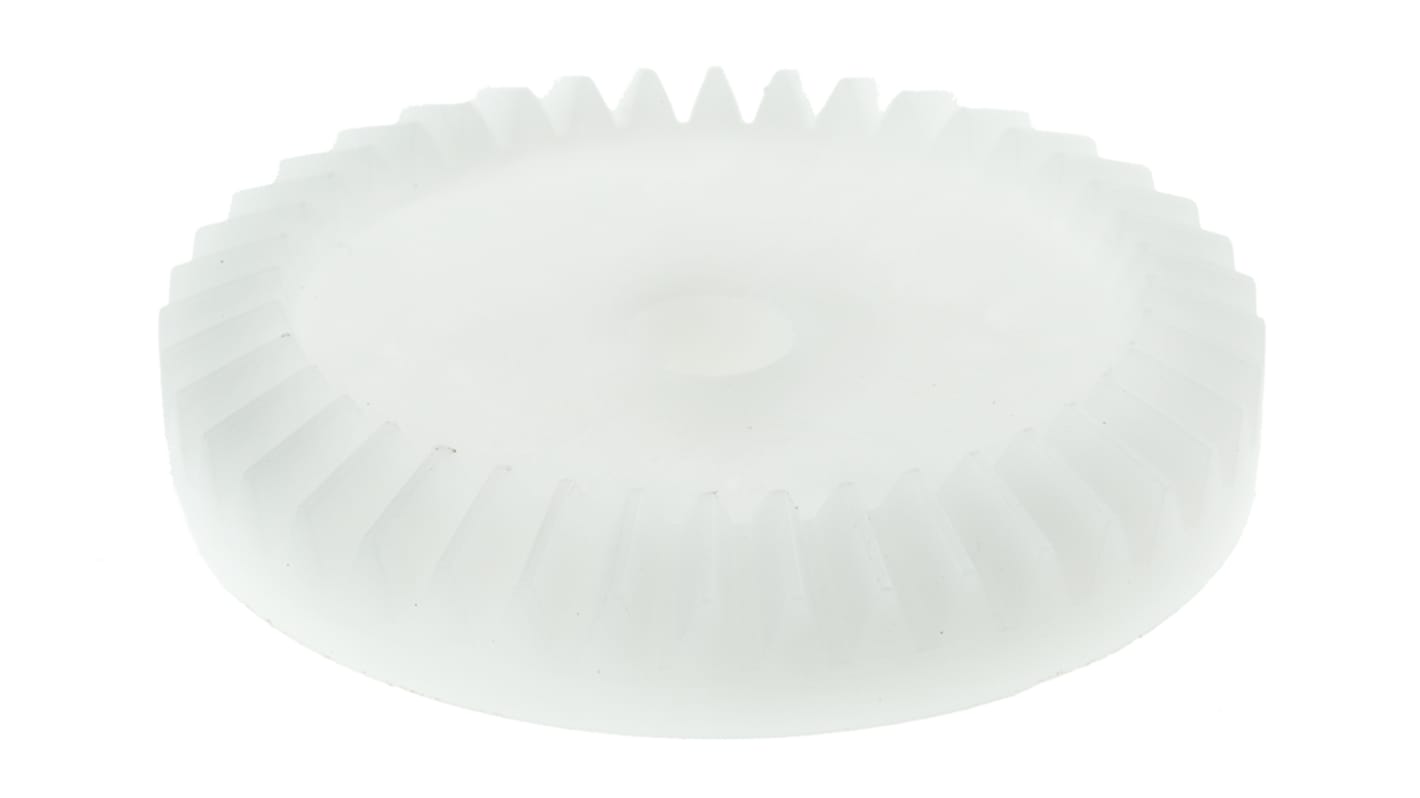

Delrin Bevel Gears
Injection moulded acetal co-polymer bevel gears.
Tensile strength 75N/mm2
Hardness (Rockwell R) 110-120
Pitch angle 63° 26' (gear) 26° 34' (pinion)
Face angle 65° 36' (gear) 30° 29' (pinion)
Hardness (Rockwell R) 110-120
Pitch angle 63° 26' (gear) 26° 34' (pinion)
Face angle 65° 36' (gear) 30° 29' (pinion)
Note
Gears sold as a single unit, match pair with module size to give a 2:1 ratio.
Specifications
Attribute | Value |
---|---|
Bore | 6mm |
Module | 1 |
Gear Type | Bevel |
Material | POM |
Number of Teeth | 40 |
Nominal Gear Ratio | 2:1 |
Pitch | 1mm |
Pressure Angle | 20° |
Hardness | 110 → 120HRR |
