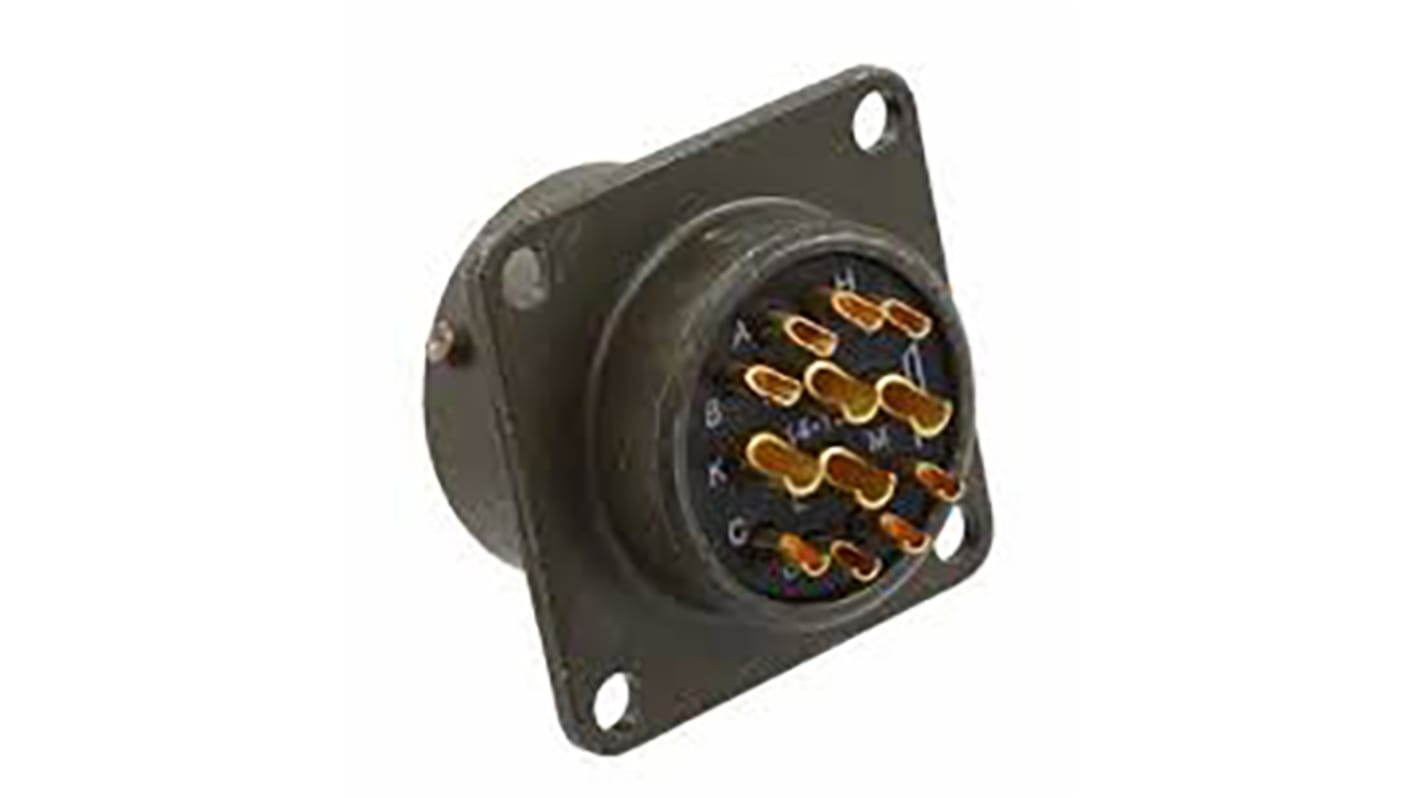

Amphenol, PT 12 Way Panel Mount MIL Spec Circular Connector Receptacle, Socket Contacts,Shell Size 14, Bayonet,

  • RS Stock No. 872-1405
  • Mfr. Part No. PT02A-14-12S
  • Brand Amphenol
Technical Reference
Legislation and Compliance
Non Compliant
Product Details

Amphenol PT Series Connectors

The Amphenol PT series connectors, manufactured in accordance with MIL-DTL-26482 Series 1, is a range of high density circular connectors featuring a bayonet coupling mechanism for quick connect and disconnect. A wide range of Insert arrangements are available offering both power and signal contacts from 2 through to 61 circuits. The Amphenol PT series connectors are inter-mountable and interchangeable with other MIL-DTL-26482 connectors.

PT Solder is UL Approved Under File #E115497
Aluminum Shell Components For The Series
5 Key/ Keyway Polarisation With Bayonet Lock Coupling
Wide Range of Shell Sizes (8 Through 24)

Amphenol PT Series Connectors

Specifications
Attribute Value
Number of Contacts 12
Gender Female
Contact Gender Female
Voltage Rating 1 kV ac
Shell Size 14
Mounting Type Panel Mount
Military Standard MIL-DTL-26482
Termination Method Solder
Mating Type Bayonet
Connector Size Miniature
Body Orientation Straight
Series PT
Contact Material Copper Alloy
Shell Plating Cadmium
Contact Plating Gold
Maximum Operating Temperature +125°C
Minimum Operating Temperature -55°C
Colour Green
Housing Material Aluminium
20 In stock for FREE next working day delivery
Price Each
£ 22.21
(exc. VAT)
£ 26.65
(inc. VAT)
Units
Per unit
1 - 9
£22.21
10 - 24
£21.09
25 +
£19.99
