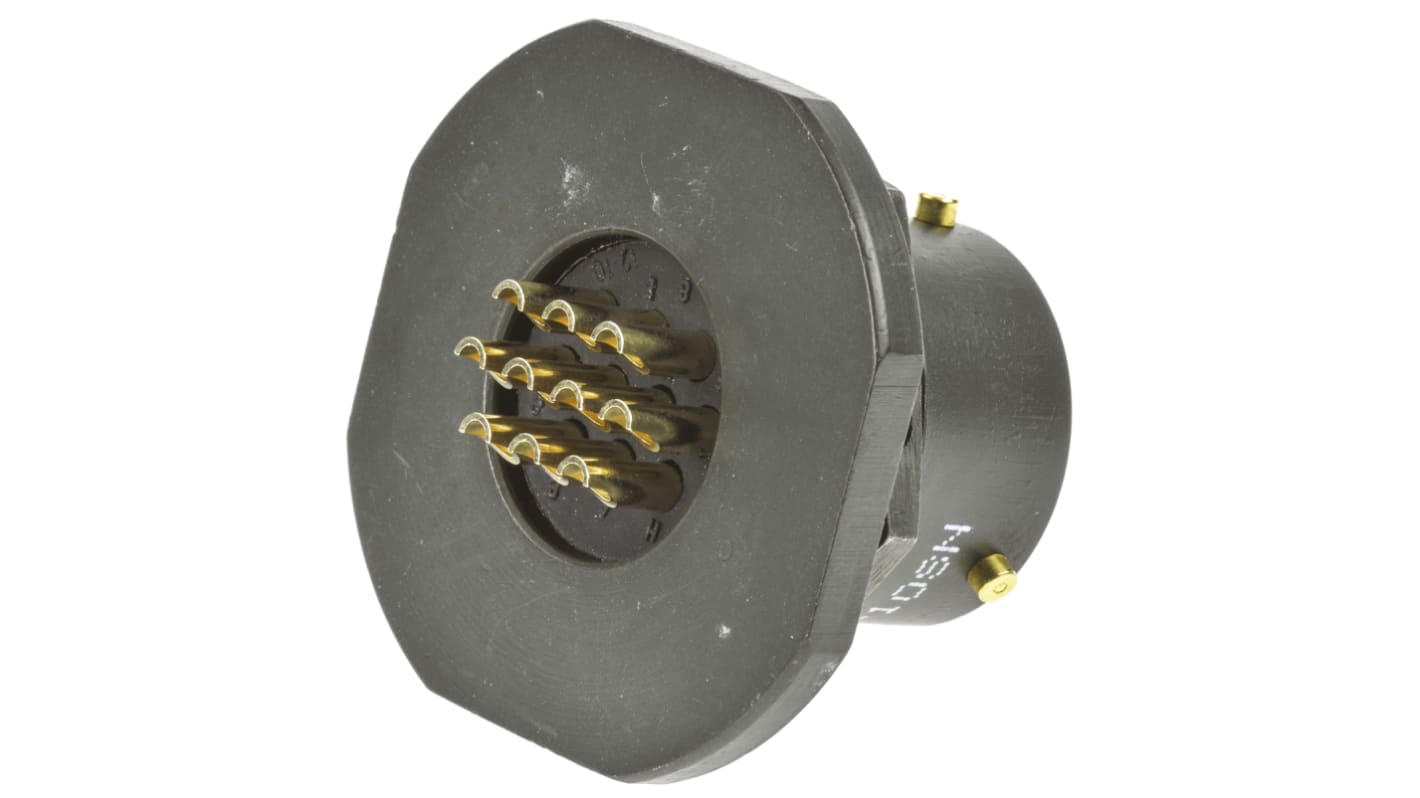

Amphenol 62GB Series, 10 Way Panel Mount MIL Spec Circular Connector Receptacle, Socket Contacts,Shell Size 12, Bayonet

  • RS Stock No. 813-9967
  • Mfr. Part No. 62GB-57A12-10SN
  • Brand Amphenol
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Amphenol 62GB Jam Nut Receptacle Connectors

Amphenol 62GB jam nut receptacle connectors are incredibly durable and versatile, manufactured from solid aluminium bar, with a zinc cobalt olive drab finish and complete with solder bucket gold plated male or female contacts and with inserts of polychloroprene rubber. The Amphenol 62GB range of mil spec connectors are similar in design and function to MIl-DTL-26482 but with an added key-way that assists in preventing the mis-mating of the connectors.These durable jam nut connectors are resistant to harsh environments and extreme temperatures, 62GB connectors are ideal for use in many military and industrial connector applications.

62GB (Olive Drab)

High quality bayonet locking connectors that have been designed to meet the requirements of BS9522 FOO17, Def Stan 59-35 and MIL-C-26482E. The connector shells are machined from aluminium alloy bar to ensure high strength. A zinc cobalt plating provides a resilient, durable and long lasting finish which meets the requirements of the EC Directive for cadmium free products. These solder termination connectors are all provided with normal orientation of the inserts and are suited to applications where robust high quality connectors are demanded. This range offers standard signal pin and power pin type planforms.

Electrical
Working Voltage 700 V dc or ac peak
Voltage Proof 2100 V dc or ac peak
Current Rating In isolation Fully loaded connector
Signal Contacts:
Size 16 Contacts 13 A 10A
Size 20 Contacts 7.5 A 5A
Power Contacts:
Size 8 45 A 40A
Size 12 23 A 20A
Contact Resistance 5 mΩ max.
Insulation Resistance 5000 MΩ
Mechanical Nickel Iron plated Tin over Copper
Shell Material Aluminium alloy
Shell Finish Olive drab over zinc cobalt
Contact Material
Wire Conductor Size:
Size 20 Contacts 0.2 mm² to 0.5 mm²
Size 16 Contacts 0.2 mm² to 1.5 mm²
Size 12 Contacts 6 mm² max.
Size 8 Contacts 20 mm² max.
Temperature Range -55°C → 125°C
Environmental Classification 55/125/56
Specifications
Attribute Value
Number of Contacts 10
Gender Female
Contact Gender Female
Shell Size 12
Mounting Type Panel Mount
Military Standard MIL-DTL-26482
Termination Method Solder
Mating Type Bayonet Coupling
Connector Size Miniature
Body Orientation Straight
Series 62GB
Maximum Operating Temperature +125°C
Shell Plating Zinc Cobalt
Contact Plating Gold
Housing Material Aluminium
Minimum Operating Temperature -55°C
Available to back order for despatch 01/10/2019
Price Each
£ 39.55
(exc. VAT)
£ 47.46
(inc. VAT)
Units
Per unit
1 - 4
£39.55
5 - 24
£35.96
25 +
£32.95
