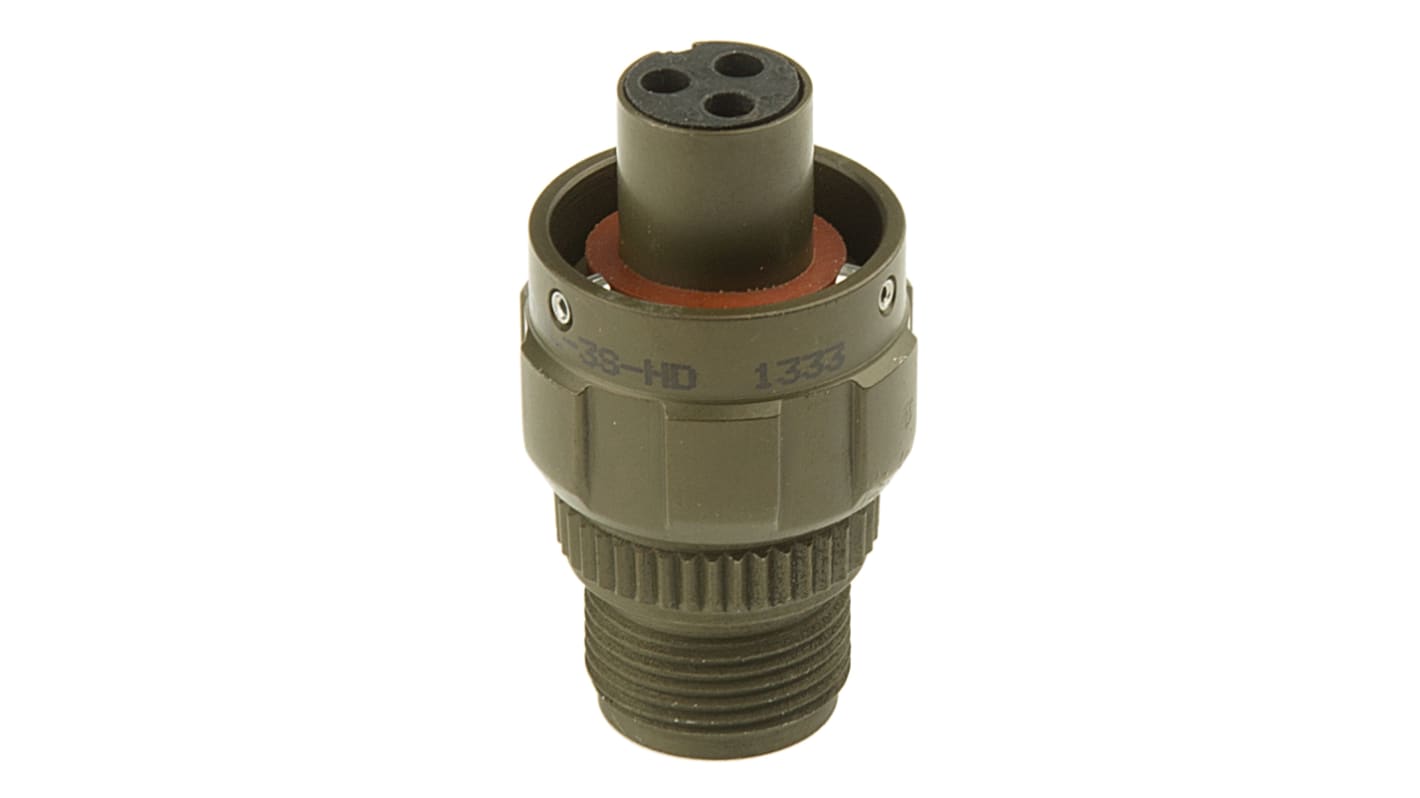

Amphenol, 97B 3 Way Cable Mount MIL Spec Circular Connector Plug, Socket Contacts,Shell Size 10SL, Bayonet Coupling,
- RS Stock No.:
- 442-2319
- Mfr. Part No.:
- 97B-3106A10SL-3S-HD
- Brand:
- Amphenol Limited
154 In stock - FREE next working day delivery available
Added
Price Each
£52.25
(exc. VAT)
£62.70
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £52.25 |
| 5 - 24 | £50.73 |
| 25 + | £48.12 |
- RS Stock No.:
- 442-2319
- Mfr. Part No.:
- 97B-3106A10SL-3S-HD
- Brand:
- Amphenol Limited
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- IN
Product Details
Cable Plugs and Sockets
From Amphenol, this 5015 series of military grade connectors are durable and versatile, offering a degree of environmental protection that makes them ideal for industrial purposes. Featuring bayonet coupling for an easy and reliable connection, these 5015 Series connectors are available in a variety of shell sizes and contact arrangements, in either male or female genders.
Note
Cable-mounting plugs (pin contacts) will only mate with chassis sockets. Cable-mounting sockets will only mate with chassis plugs.
Standards
BS 9522; F0032
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 3 |
| Gender | Male |
| Contact Gender | Female |
| Current Rating | 13A |
| Voltage Rating | 500 V ac |
| Shell Size | 10SL |
| Mounting Type | Cable Mount |
| Military Standard | MIL-DTL-5015 |
| Termination Method | Solder |
| Mating Type | Bayonet Coupling |
| Body Orientation | Straight |
| Series | 97B |
| Shell Plating | Olive Drab Cadmium |
| Contact Material | Brass |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Contact Plating | Silver |
