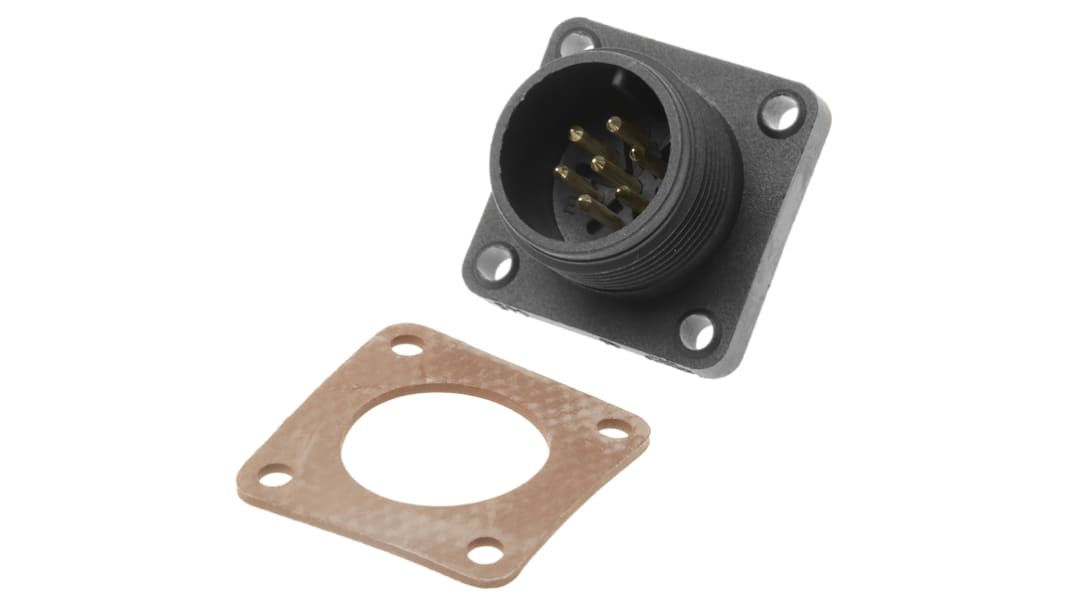

Hirschmann, CM 7 Way Panel Mount MIL Spec Circular Connector Plug, Socket Contacts,Shell Size 14, Screw Coupling,
- RS Stock No.:
- 237-7605
- Mfr. Part No.:
- 932455100 CM 02 E 14S-61 P
- Brand:
- Hirschmann
97 In stock - FREE next working day delivery available
20 available from Europe for delivery within 1 working day(s).
Added
Price Each
£9.12
(exc. VAT)
£10.94
(inc. VAT)
Units | Per unit |
1 - 4 | £9.12 |
5 - 24 | £8.00 |
25 + | £6.84 |
- RS Stock No.:
- 237-7605
- Mfr. Part No.:
- 932455100 CM 02 E 14S-61 P
- Brand:
- Hirschmann
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
CM Cable Sockets and Panel Plugs
These Hirschmann CM Glass-fibre reinforced polyamide connectors give a viable alternative to metal style military connector ranges. The Hirschman CM range gives options of 3 to 17 poles in 14S and 20 shell sizes, are designed to MIL-C-5015 & VG95342, and have the same mounting dimensions and contact arrangements as other manufacturers making them interchangeable with other screw locking types. They are also widely used for connecting continuous action and proportional action valves to DIN43563.
Belden Hirschmann MIL Spec Circular Connector, Solder Termination, 16A Current Rating - CM Series - 932455100 CM 02 E 14S-61 P
Use this MIL spec circular connector from Belden Hirschmann to attach cables to your heavy-duty industrial equipment. An operating current rating of 16A means it can withstand high-power electrical systems. As the unit's compatible with solder termination, you can fasten your cables securely and be sure of a reliable hold in vibrating conditions. The screw coupling design helps to keep the contacts stable for steady signal transmission, while a straight body orientation lets you easily insert this connector into your front-facing plug.
Features & Benefits
Glass fibre-reinforced polyamide housing delivers thermal resistance for durability
Wide operating temperature range between -40°C and +90°C for use in harsh industrial environments
Silver contact plating is corrosion-resistant for lasting use
Wide operating temperature range between -40°C and +90°C for use in harsh industrial environments
Silver contact plating is corrosion-resistant for lasting use
Applications
Military equipment
Aviation engineering
Mining industry
Assembly lines
Aviation engineering
Mining industry
Assembly lines
How do I mount this connector?
To mount this connector, simply screw its built-in flange to the surface of your equipment.
Hirschmann CA series connectors – Protection Class IP67
Threaded locking connectors, protection class up to IP67 DIN40050
UL94V-0 cap in fibreglass-reinforced plastic
Total body length: 61 mm
Earth-insulated conductor
UL94V-0 cap in fibreglass-reinforced plastic
Total body length: 61 mm
Earth-insulated conductor
Specifications
Attribute | Value |
---|---|
Number of Contacts | 7 |
Gender | Male |
Contact Gender | Female |
Current Rating | 10A |
Voltage Rating | 50 V ac/dc |
Shell Size | 14 |
Mounting Type | Panel Mount |
Military Standard | MIL-DTL-5015 |
Termination Method | Solder |
IP Rating | IP67 |
Mating Type | Screw Coupling |
Body Orientation | Straight |
Housing Material | Polyamide |
Series | CM |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +90°C |
Colour | Black |
Contact Material | Polyamide |
Contact Plating | Silver |
- RS Stock No.:
- 237-7605
- Mfr. Part No.:
- 932455100 CM 02 E 14S-61 P
- Brand:
- Hirschmann
