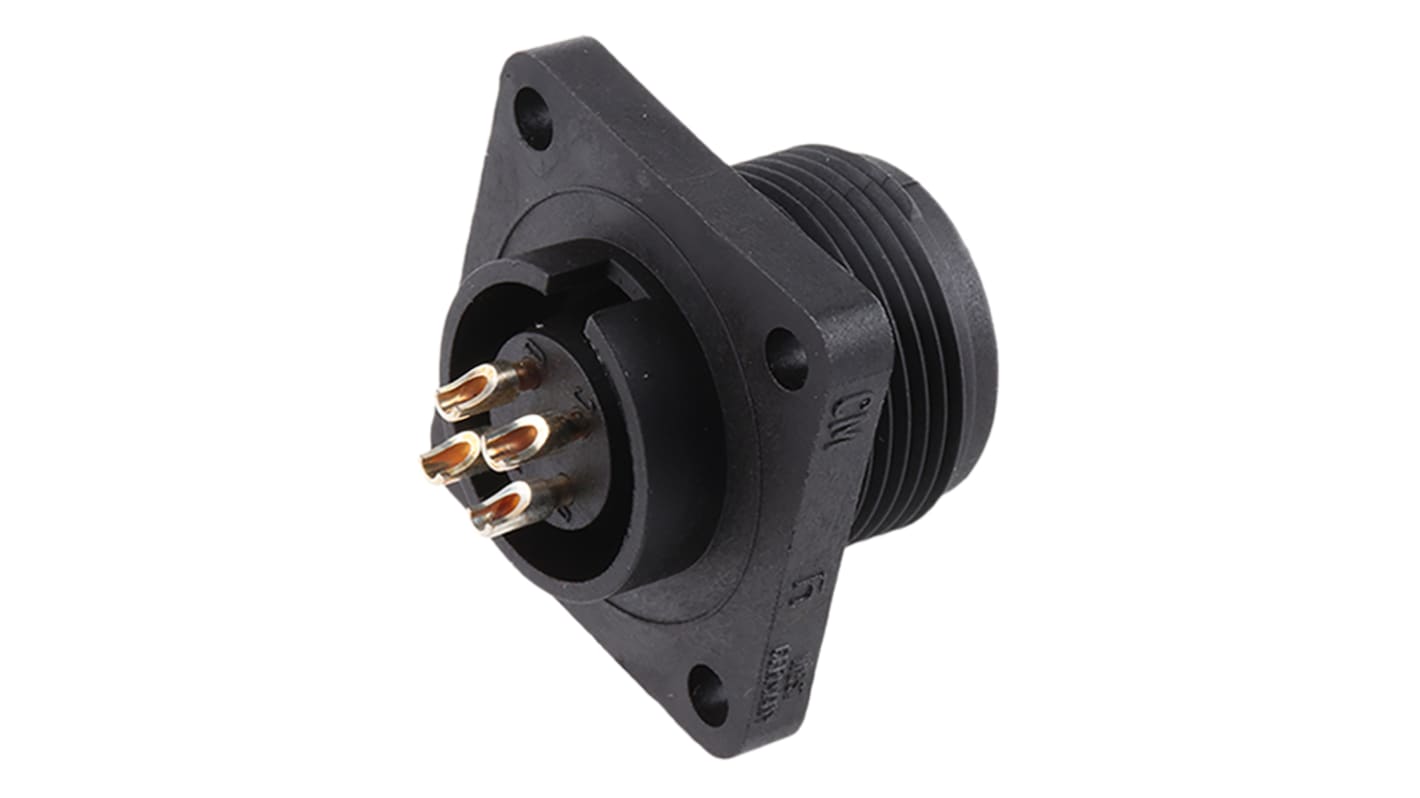

Hirschmann 4 Way Panel Mount MIL Spec Circular Connector Receptacle, Pin Contacts, Screw Coupling, MIL-DTL-5015
- RS Stock No.:
- 237-7560
- Mfr. Part No.:
- 932449100 CM 02 E 14S-2 P
- Brand:
- Hirschmann
- RS Stock No.:
- 237-7560
- Mfr. Part No.:
- 932449100 CM 02 E 14S-2 P
- Brand:
- Hirschmann
Technical Reference
Legislation and Compliance
Product Details
CM Cable Sockets and Panel Plugs
These Hirschmann CM Glass-fibre reinforced polyamide connectors give a viable alternative to metal style military connector ranges. The Hirschman CM range gives options of 3 to 17 poles in 14S and 20 shell sizes, are designed to MIL-C-5015 & VG95342, and have the same mounting dimensions and contact arrangements as other manufacturers making them interchangeable with other screw locking types. They are also widely used for connecting continuous action and proportional action valves to DIN43563.
Hirschmann CA series connectors – Protection Class IP67
Threaded locking connectors, protection class up to IP67 DIN40050
UL94V-0 cap in fibreglass-reinforced plastic
Total body length: 61 mm
Earth-insulated conductor
UL94V-0 cap in fibreglass-reinforced plastic
Total body length: 61 mm
Earth-insulated conductor
Specifications
Attribute | Value |
---|---|
Number of Contacts | 4 |
Gender | Female |
Contact Gender | Male |
Current Rating | 10A |
Voltage Rating | 50 V ac/dc |
Mounting Type | Panel Mount |
Military Standard | MIL-DTL-5015 |
Termination Method | Solder |
Mating Type | Screw Coupling |
Body Orientation | Straight |
Maximum Operating Temperature | +90°C |
Minimum Operating Temperature | -40°C |
Contact Plating | Silver |
