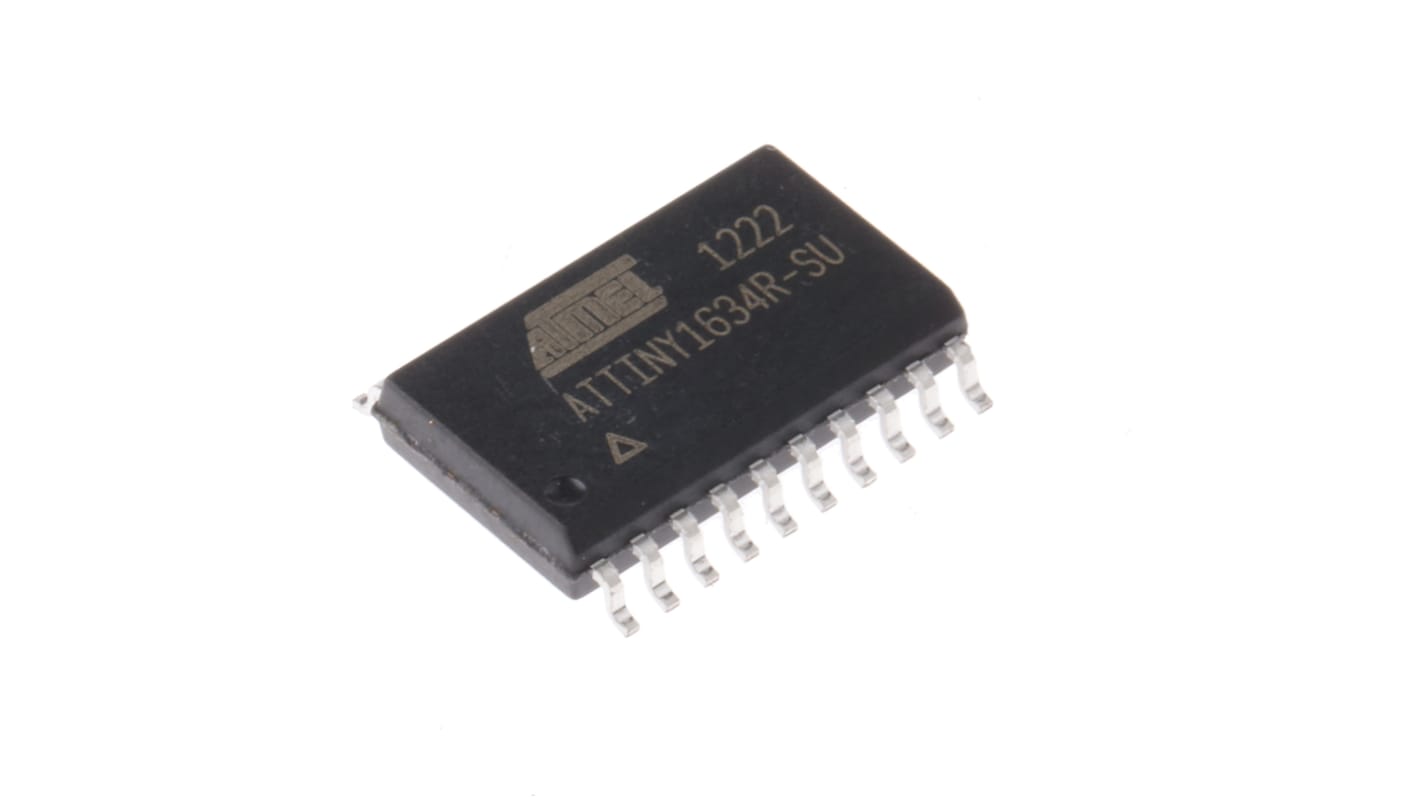

Microchip ATTINY1634R-SU, 8bit AVR Microcontroller, ATtiny, 12MHz, 16 kB, 256 B Flash, 20-Pin SOIC

  • RS Stock No. 922-5400
  • Mfr. Part No. ATTINY1634R-SU
  • Brand Microchip
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

8-Bit tinyAVR® Microcontrollers

Atmel's tinyAVR® devices are optimized for applications that require performance, power efficiency, and ease-of-use in a small package.

Small for applications where size is critical
Capacitive Touch
Fast and code efficient
High integration
1.8V to 5.5V operation (ATtiny43U)

Specifications
Attribute Value
Family Name ATtiny
Package Type SOIC
Mounting Type Surface Mount
Pin Count 20
Device Core AVR
Data Bus Width 8bit
Program Memory Size 16 kB, 256 B
Maximum Frequency 12MHz
RAM Size 1 kB
Number of PWM Units 1
ADC Channels 12
Number of SPI Channels 1
Typical Operating Supply Voltage 1.8 → 5.5 V
Number of Timers 2
Number of I2C Channels 1
ADC Resolution 10bit
Minimum Operating Temperature -40 °C
Instruction Set Architecture RISC
Program Memory Type Flash
Dimensions 13 x 7.6 x 2.35mm
Timers 1 x 16 bit, 1 x 8 bit
Number of USART Channels 2
Width 7.6mm
PWM Channels 4
Height 2.35mm
Timer Resolution 8 bit, 16 bit
ADCs 12 x 10 bit
Length 13mm
Maximum Operating Temperature +85 °C
Number of ADC Units 1
Pulse Width Modulation 1(4 Channel)
Available to back order for despatch when stock is available
Price Each (In a Tube of 37)
£ 1.106
(exc. VAT)
£ 1.327
(inc. VAT)
Units
Per unit
Per Tube*
37 - 74
£1.106
£40.922
111 +
£1.079
£39.923
*price indicative
