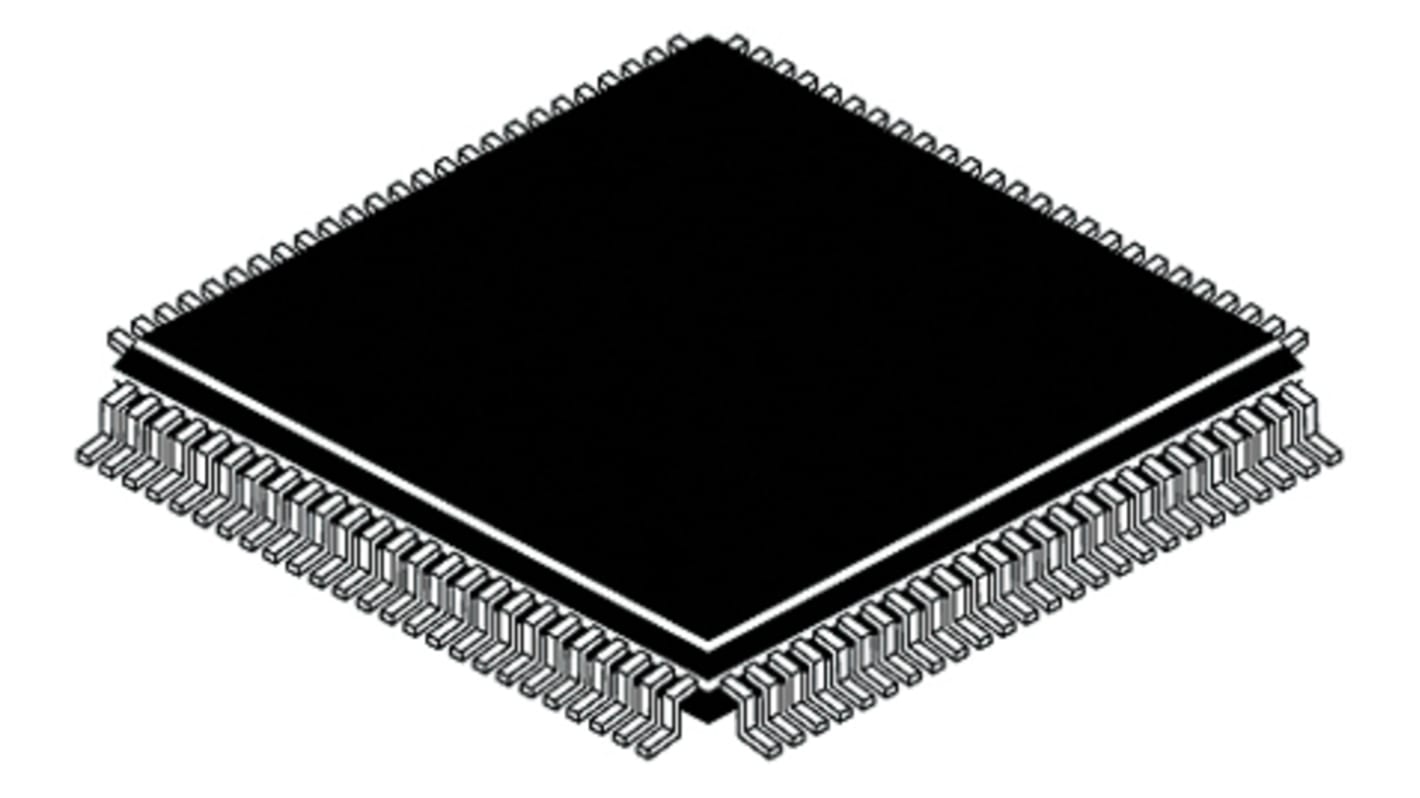

    Texas Instruments MSP430F4783IPZ, 16bit MSP430 Microcontroller, MSP430, 16MHz, 48 kB Flash, 100-Pin LQFP

    RS Stock No.:
    817-6158
    Mfr. Part No.:
    MSP430F4783IPZ
    Brand:
    Texas Instruments
    Texas Instruments
    View all Microcontrollers
    Discontinued product
    RS Stock No.:
    817-6158
    Mfr. Part No.:
    MSP430F4783IPZ
    Brand:
    Texas Instruments

    Legislation and Compliance


    Product Details

    MSP430F2x Ultra-Low-Power Microcontrollers, Texas Instruments


    Up to 16MHz CPU speed clock
    Up to 120KB Flash memory
    Up to 8KB SRAM memory
    1.8V to 3.6V operation
    Smart Analog and Digital
    Low Power 200μA/MHz active mode
    Low Power 0.7μA real-time clock mode
    Low Power 0.1μA RAM retention
    Ultra-Fast Wake-Up From Standby Mode in less than 6μs



    MSP430 Microcontrollers, Texas Instruments


    The MSP430 Platform is a range of mixed-signal, ultra-low power microcontrollers from Texas Instruments. The 16-bit RISC architecture is perfectly suited for wireless, low-power industrial and portable applications. This established range has a strong and popular position due to its ease of use and broad suite of development tools and support.
    The MSP430 portfolio consists of over 400 devices ranging from the MSP430 Value Line to the revolutionary, highly integrated microcontrollers with embedded FRAM memory.This broad family of products offer integration suited to many designs and applications. High-performance peripherals include USB, RF, LCD controllers and Sigma-Delta ADCs. This allows designers to find the appropriate MSP430 device for many low power applications.


    Specifications

    AttributeValue
    Family NameMSP430
    Package TypeLQFP
    Mounting TypeSurface Mount
    Pin Count100
    Device CoreMSP430
    Data Bus Width16bit
    Program Memory Size48 kB
    Maximum Frequency16MHz
    RAM Size2 kB
    USB Channels0
    Number of SPI Channels4
    Typical Operating Supply Voltage1.8 → 3.6 V
    Number of UART Channels2
    Number of USART Channels0
    Number of I2C Channels2
    Number of CAN Channels0
    Height1.45mm
    ADCs1 (3 x 16 bit)
    Length14.2mm
    Maximum Operating Temperature+85 °C
    Number of Ethernet Channels0
    Number of PCI Channels0
    Program Memory TypeFlash
    Pulse Width Modulation0
    Dimensions14.2 x 14.2 x 1.45mm
    Number of ADC Units1
    Instruction Set ArchitectureRISC
    Minimum Operating Temperature-40 °C
    Maximum Number of Ethernet Channels0
    Number of LIN Channels2
    Width14.2mm
