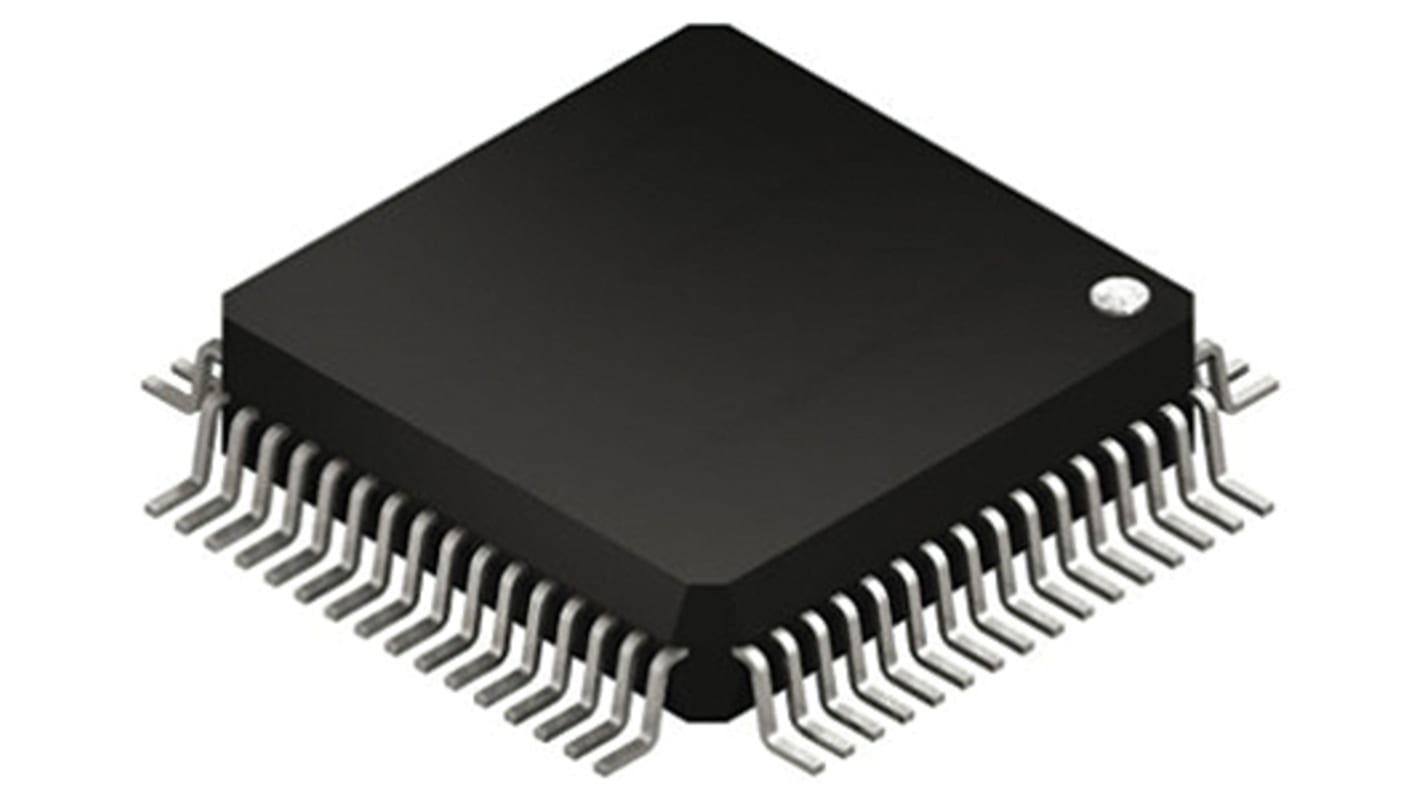

Texas Instruments MSP430F2617TPM, 16bit MSP430 Microcontroller, MSP430, 16MHz, 256 B, 92 kB Flash, 64-Pin LQFP

RS Stock No.:
709-3977
Mfr. Part No.:
MSP430F2617TPM
Brand:
Texas Instruments
Texas Instruments
View all Microcontrollers
Discontinued product
RS Stock No.:
709-3977
Mfr. Part No.:
MSP430F2617TPM
Brand:
Texas Instruments

Legislation and Compliance


Product Details

MSP430F2x Extended Temperature Ultra-Low-Power Microcontrollers, Texas Instruments





Specifications

AttributeValue
Family NameMSP430
Package TypeLQFP
Mounting TypeSurface Mount
Pin Count64
Device CoreMSP430
Data Bus Width16bit
Program Memory Size256 B, 92 kB
Maximum Frequency16MHz
RAM Size8 kB
USB Channels0
Number of PWM Units2
Number of SPI Channels4
Number of USART Channels0
Number of UART Channels2
Typical Operating Supply Voltage1.8 → 3.6 V
Number of CAN Channels0
Number of I2C Channels2
Number of ADC Units1
Instruction Set ArchitectureRISC
Number of PCI Channels0
Number of Ethernet Channels0
Program Memory TypeFlash
Pulse Width Modulation3 x 16 bit, 7 x 16 bit
Width10.2mm
ADCs8 x 12 bit
Length10.2mm
Maximum Operating Temperature+105 °C
Dimensions10.2 x 10.2 x 1.45mm
Number of LIN Channels2
Minimum Operating Temperature-40 °C
Height1.45mm
Discontinued product
