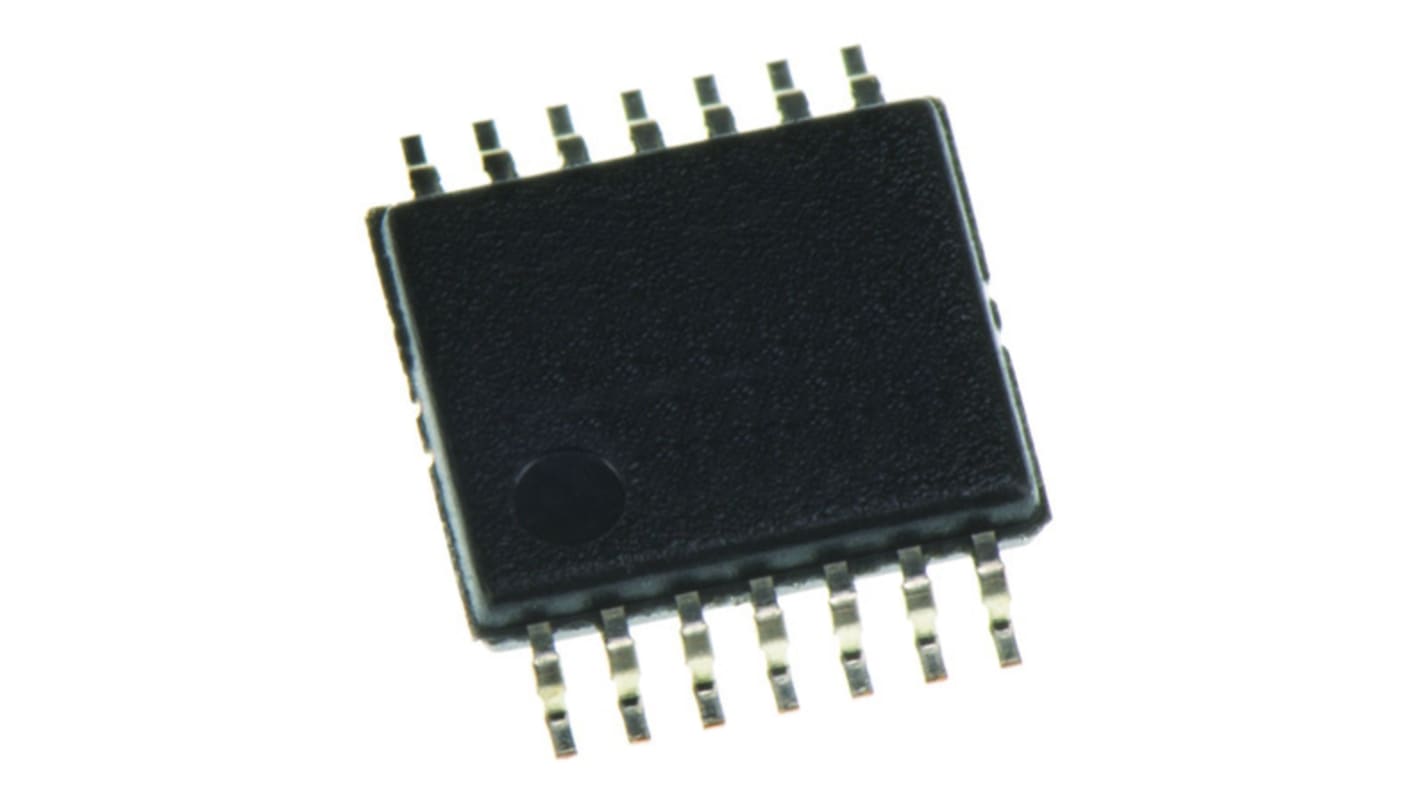

    Texas Instruments MSP430F2012IPW, 16bit MSP430 Microcontroller, MSP430, 16MHz, 2 kB, 256 B Flash, 14-Pin TSSOP

    RS Stock No.:
    709-2084
    Mfr. Part No.:
    MSP430F2012IPW
    Brand:
    Texas Instruments
    Texas Instruments
    View all Microcontrollers
    Discontinued product
    RS Stock No.:
    709-2084
    Mfr. Part No.:
    MSP430F2012IPW
    Brand:
    Texas Instruments

    Legislation and Compliance


    Product Details

    MSP430F2x Ultra-Low-Power Microcontrollers, Texas Instruments




    Specifications

    AttributeValue
    Family NameMSP430
    Package TypeTSSOP
    Mounting TypeSurface Mount
    Pin Count14
    Device CoreMSP430
    Data Bus Width16bit
    Program Memory Size2 kB, 256 B
    Maximum Frequency16MHz
    RAM Size128 B
    USB Channels0
    Number of PWM Units1
    Number of SPI Channels1
    Number of CAN Channels0
    Number of I2C Channels1
    Typical Operating Supply Voltage1.8 → 3.6 V
    Number of USART Channels0
    Number of UART Channels0
    Height1.05mm
    ADCs8 x 10 bit
    Width4.5mm
    Number of LIN Channels0
    Number of PCI Channels0
    Dimensions5.1 x 4.5 x 1.05mm
    Minimum Operating Temperature-40 °C
    Instruction Set ArchitectureRISC
    Program Memory TypeFlash
    Number of ADC Units1
    Number of Ethernet Channels0
    Maximum Operating Temperature+85 °C
    Pulse Width Modulation2 x 16 bit
    Length5.1mm
    Discontinued product
