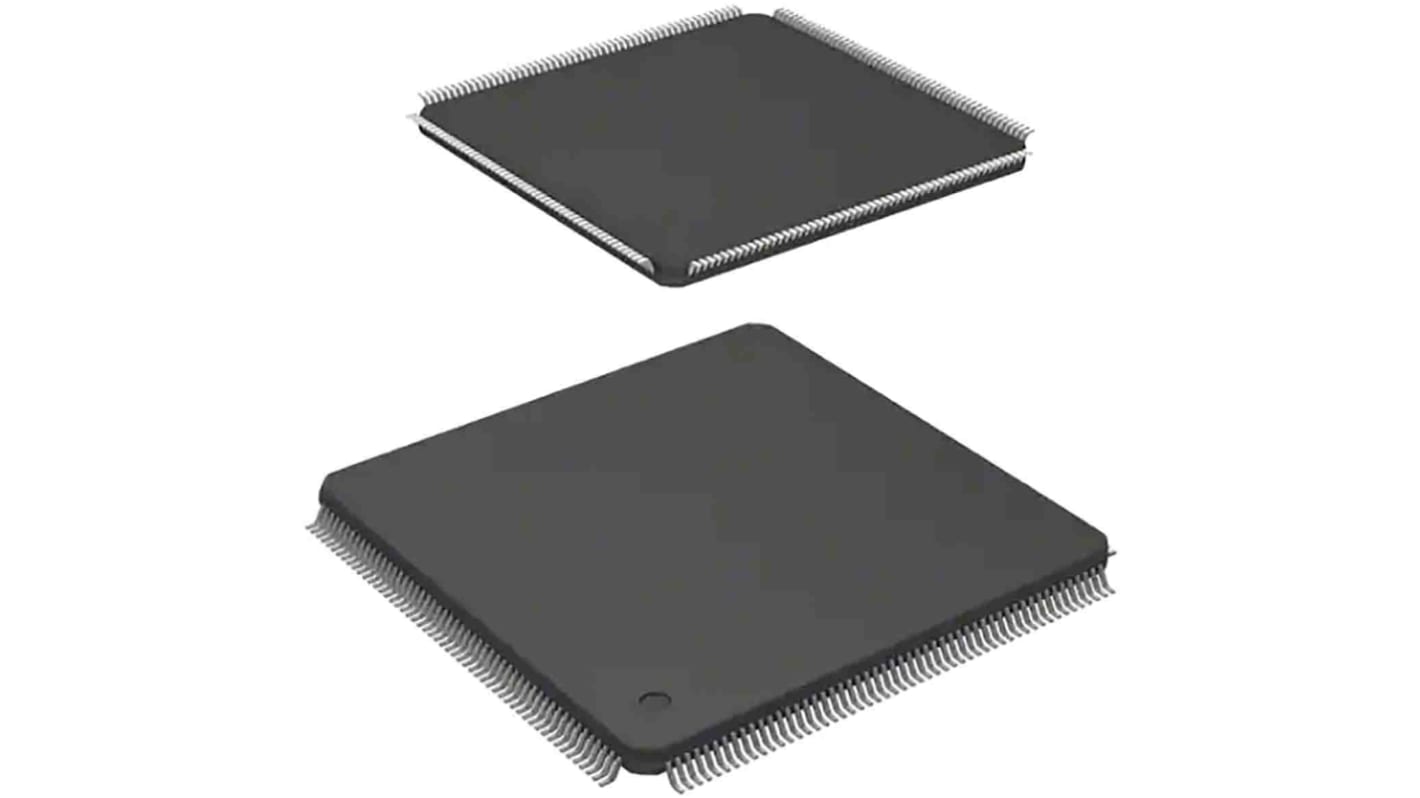

Renesas Electronics R7S721031VCFP#AA0, 8 bit, 16 bit, 32 bit ARM Cortex A9 Microcontroller, R7S7, 400MHz, 128 (TLB128)

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

With 3MB on-chip SRAM, the RZ/A1LU supports up to 2 Displays with WVGA (800x480) resolution or a single display with WSVGA (1024x600) resolution without the need for external memory. RZ/A1LU enables very compact embedded designs without the need to worry about memory procurement and memory EOL. With RZ/A1LU, you can design your embedded system like an MCU and get the performance of a 400MHz Arm® Cortex®-A9 MPU. Enabled for support with Linux, RTOS or Bare-metal, this is the ideal device for designing Intelligent IoT End Point devices with compactness and high performance. Supported in QFP and BGA packages with different sizes to support board layout flexibility and with SDRAM interface to expand up to 128MB of external memory.

Specifications
Attribute Value
Family Name R7S7
Package Type QFP
Mounting Type Surface Mount
Pin Count 208
Device Core ARM Cortex A9
Data Bus Width 8 bit, 16 bit, 32 bit
Program Memory Size 32 (Data Cache) kB, 32 (Instruction Cache) kB, 128 (TLB128) kB
Maximum Frequency 400MHz
RAM Size 3.072 MB
USB Channels 2
Number of PWM Units 1
ADC Channels 8
Number of SPI Channels 3
Typical Operating Supply Voltage 3.6 (Maximum) V
Number of Timers 2
Number of CAN Channels 2
Minimum Operating Temperature -40 °C
Number of ADC Units 1
ADCs 1 (8 x 12 bit)
Width 28mm
Number of UART Channels 5
Pulse Width Modulation 1 (6 Channel)
Length 28mm
Dimensions 28 x 28 x 1.4mm
Maximum Number of Ethernet Channels 1
PWM Channels 6
Number of I2C Channels 4
Timers 1 (2 x 32 bit), 1 (5 x 16 bit)
Height 1.4mm
Number of Ethernet Channels 1
Timer Resolution 16 bit, 32 bit
Data Rate 133.3 (Image)Mbit/s
Maximum Operating Temperature +85 °C
ADC Resolution 12bit
5 In stock for delivery within 5 working days
Price Each
£ 20.34
(exc. VAT)
£ 24.41
(inc. VAT)
Units
Per unit
1 - 4
£20.34
5 - 9
£17.80
10 - 24
£15.82
25 - 49
£14.24
50 +
£12.95
