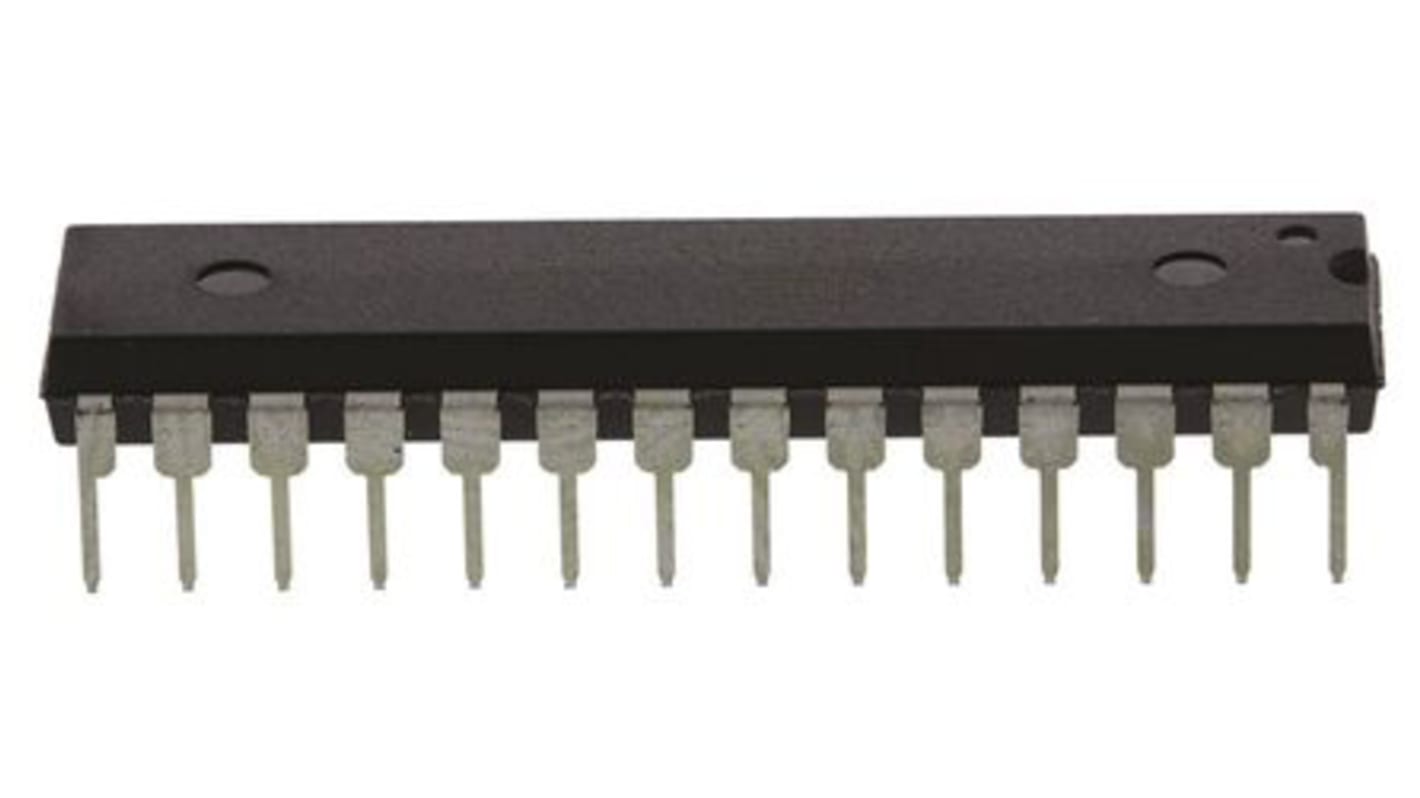

Microchip ATMEGA8-16PU, 8bit AVR Microcontroller, ATmega, 16MHz, 8 kB Flash, 28-Pin PDIP
- RS Stock No.:
- 131-0338
- Mfr. Part No.:
- ATMEGA8-16PU
- Brand:
- Microchip
46 In stock - FREE next working day delivery available
10 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 2)
£2.67
(exc. VAT)
£3.20
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 8 | £2.67 | £5.34 |
| 10 - 22 | £2.60 | £5.20 |
| 24 - 98 | £2.52 | £5.04 |
| 100 + | £2.46 | £4.92 |
| *price indicative | ||
- RS Stock No.:
- 131-0338
- Mfr. Part No.:
- ATMEGA8-16PU
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
Product Details
8-Bit megaAVR Microcontrollers, 4KB to 16KB Flash
Here at RS Components we have numerous megaAVR 8-bit microcontrollers from Atmel.Each microcontroller is based on an enhanced RISC architecture and features QTouch library support. All of the megaAVR microcontrollers have varying Kb of In-System Programmable Flash, EEPROM and SRAM as well as a variety of pin and package types.
Types of megaAVR 8-bit microcontrollers
•ATmega8
•ATmega16
•ATmega48
•ATmega88
•ATmega162
•ATmega164
•ATmega165
•ATmega168
•ATmega8515
•ATmega8535
Types of megaAVR 8-bit microcontrollers
•ATmega8
•ATmega16
•ATmega48
•ATmega88
•ATmega162
•ATmega164
•ATmega165
•ATmega168
•ATmega8515
•ATmega8535
Specifications
Attribute | Value |
|---|---|
| Family Name | ATmega |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 28 |
| Device Core | AVR |
| Data Bus Width | 8bit |
| Program Memory Size | 8 kB |
| Maximum Frequency | 16MHz |
| RAM Size | 1 kB |
| USB Channels | 0 |
| Number of PWM Units | 1 |
| Number of SPI Channels | 1 |
| Number of I2C Channels | 1 |
| Typical Operating Supply Voltage | 4.5 → 5.5 V |
| Number of CAN Channels | 0 |
| Number of USART Channels | 1 |
| Number of UART Channels | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Number of Ethernet Channels | 0 |
| Height | 4.06mm |
| ADCs | 6 x 10 bit |
| Length | 34.79mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Number of PCI Channels | 0 |
| Number of Ethernet Channels | 0 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 (3 Channel) |
| Dimensions | 34.79 x 7.49 x 4.06mm |
| Instruction Set Architecture | RISC |
| Number of LIN Channels | 0 |
| Width | 7.49mm |
- RS Stock No.:
- 131-0338
- Mfr. Part No.:
- ATMEGA8-16PU
- Brand:
- Microchip
