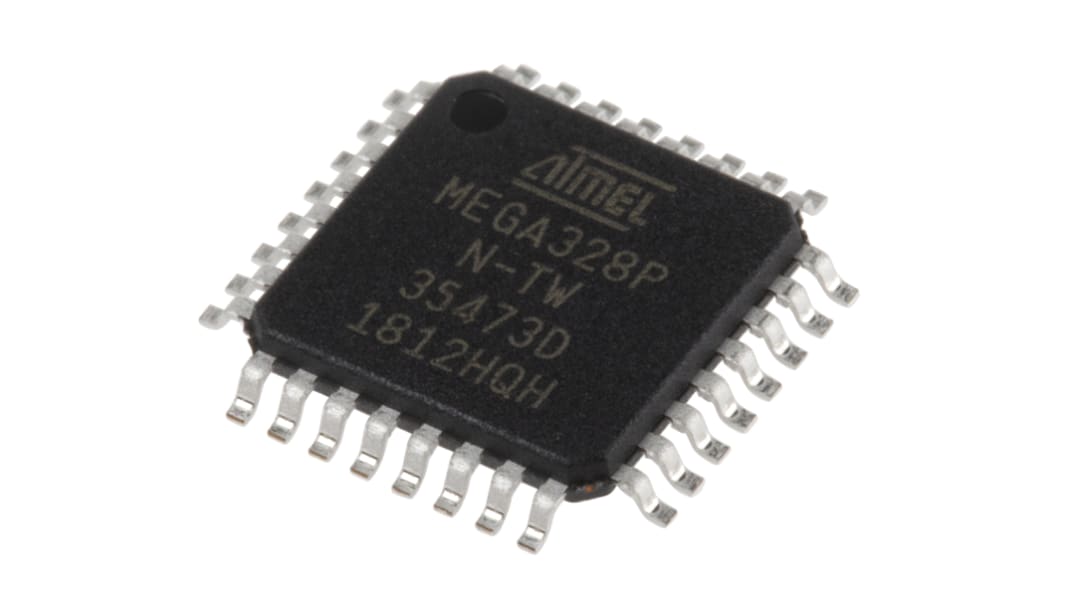

Microchip ATMEGA328P-AN, 8bit AVR Microcontroller, ATmega, 20MHz, 32 kB Flash, 32-Pin TQFP
- RS Stock No.:
- 131-0270
- Mfr. Part No.:
- ATMEGA328P-AN
- Brand:
- Microchip
18 In stock - FREE next working day delivery available
6 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 2)
£2.63
(exc. VAT)
£3.16
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 8 | £2.63 | £5.26 |
| 10 - 22 | £2.56 | £5.12 |
| 24 - 98 | £2.495 | £4.99 |
| 100 + | £2.43 | £4.86 |
| *price indicative | ||
- RS Stock No.:
- 131-0270
- Mfr. Part No.:
- ATMEGA328P-AN
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
Product Details
ATmega328P 8-Bit megaAVR picoPower Microcontrollers
The Atmel ATmega328P Microcontroller is an 8-bit megaAVR device based on the AVR enhanced RISC architecture. Featured is picoPower technology that offers ultra-low power consumption and low-power sleep modes, ideal for battery powered applications.
Microcontroller Features
•20 MHz Max. Operating Frequency
•Up to 20 MIPS at 20 MHz
•32 KB Flash
•1024 B EEPROM
•2 KB SRAM
•131 Instructions – Most single clock cycle execution
•32 General Purpose Registers
•23 GPIO
•Power-on Reset and Programmable Brown-out Detection
•Internal Calibrated Oscillator
•External and Internal Interrupt Sources
•Six Power-Saving Sleep Modes
•Internal and External Interrupts
•Fully Static Operation
•Up to 20 MIPS at 20 MHz
•32 KB Flash
•1024 B EEPROM
•2 KB SRAM
•131 Instructions – Most single clock cycle execution
•32 General Purpose Registers
•23 GPIO
•Power-on Reset and Programmable Brown-out Detection
•Internal Calibrated Oscillator
•External and Internal Interrupt Sources
•Six Power-Saving Sleep Modes
•Internal and External Interrupts
•Fully Static Operation
Peripheral Features
•10-bit 15 ksps Analogue-to-Digital Converter (ADC) – 8 or 6 channels
•Capacitive Touch Sense – 16 channels
•Temperature Sensor
•Two 8-bit Timers
•One 16-bit Timer
•Output Compare Module – 6 channels
•Six PWM Channels
•Programmable Serial USART
•Master/Slave SPI Serial Interface
•Byte-oriented 2-wire Serial Interface – I2C compatible
•Programmable Watchdog Timer with Separate Oscillator
•Analogue Comparator
•Interrupt and Wake-up on Pin Change
•Capacitive Touch Sense – 16 channels
•Temperature Sensor
•Two 8-bit Timers
•One 16-bit Timer
•Output Compare Module – 6 channels
•Six PWM Channels
•Programmable Serial USART
•Master/Slave SPI Serial Interface
•Byte-oriented 2-wire Serial Interface – I2C compatible
•Programmable Watchdog Timer with Separate Oscillator
•Analogue Comparator
•Interrupt and Wake-up on Pin Change
Specifications
Attribute | Value |
|---|---|
| Family Name | ATmega |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | AVR |
| Data Bus Width | 8bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 2 kB |
| USB Channels | 0 |
| Number of PWM Units | 1 |
| Number of SPI Channels | 2 |
| Number of USART Channels | 1 |
| Number of UART Channels | 1 |
| Typical Operating Supply Voltage | 1.8 → 5.5 V |
| Number of CAN Channels | 0 |
| Number of I2C Channels | 1 |
| Number of PCI Channels | 0 |
| Number of Ethernet Channels | 0 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 (6 Channel) |
| Dimensions | 7.1 x 7.1 x 1.05mm |
| Instruction Set Architecture | RISC |
| Minimum Operating Temperature | -40 °C |
| Maximum Number of Ethernet Channels | 0 |
| Width | 7.1mm |
| Number of LIN Channels | 0 |
| Height | 1.05mm |
| ADCs | 8 x 10 bit |
| Length | 7.1mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
