- RS Stock No.:
- 832-6322
- Mfr. Part No.:
- HB 740 12mm x 33m
- Brand:
- Hi-Bond
111 In stock - FREE next working day delivery available
9 available from Europe for delivery within 1 working day(s).
Added
Price Each
£16.95
(exc. VAT)
£20.34
(inc. VAT)
Units | Per unit |
1 + | £16.95 |
- RS Stock No.:
- 832-6322
- Mfr. Part No.:
- HB 740 12mm x 33m
- Brand:
- Hi-Bond
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- KR
Product Details

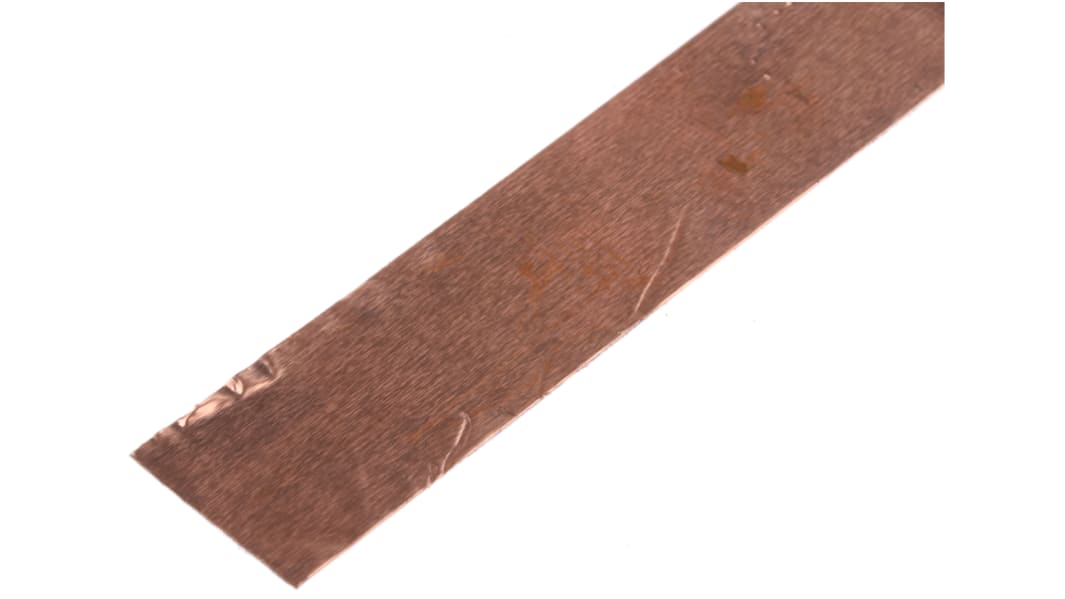

Hi-Bond 740 Conductive Copper Foil Tape
This 740 Copper Foil Tape from Hi-Bond features a conductive acrylic pressure sensitive adhesive with a uniform dispersion of conductive particles. The copper foil carrier is 35 microns thick, with an additional 30 micron-thick coating of acrylic adhesive containing nickel silver conductive particles.
Applications:
Electro-magnetic compatibility, shielding, radio frequency insulation, earthing and static electric control
Hi-Bond Tapes
Specifications
Attribute | Value |
---|---|
Total Thickness | 0.07mm |
Tape Type | Copper Tape |
Foil Thickness | 0.035mm |
Width | 12mm |
Length | 33m |
Conductivity | Conductive |
Adhesion Strength | 2.7 N/cm |
Adhesive Material | Acrylic |
Material Plating | None |
Tensile Strength | 43N/cm |
Maximum Temperature Resistance | +130°C |
Minimum Temperature Resistance | -30°C |
Model Number | HB 740 |
