Wurth Elektronik Mini Memory Card Connector

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

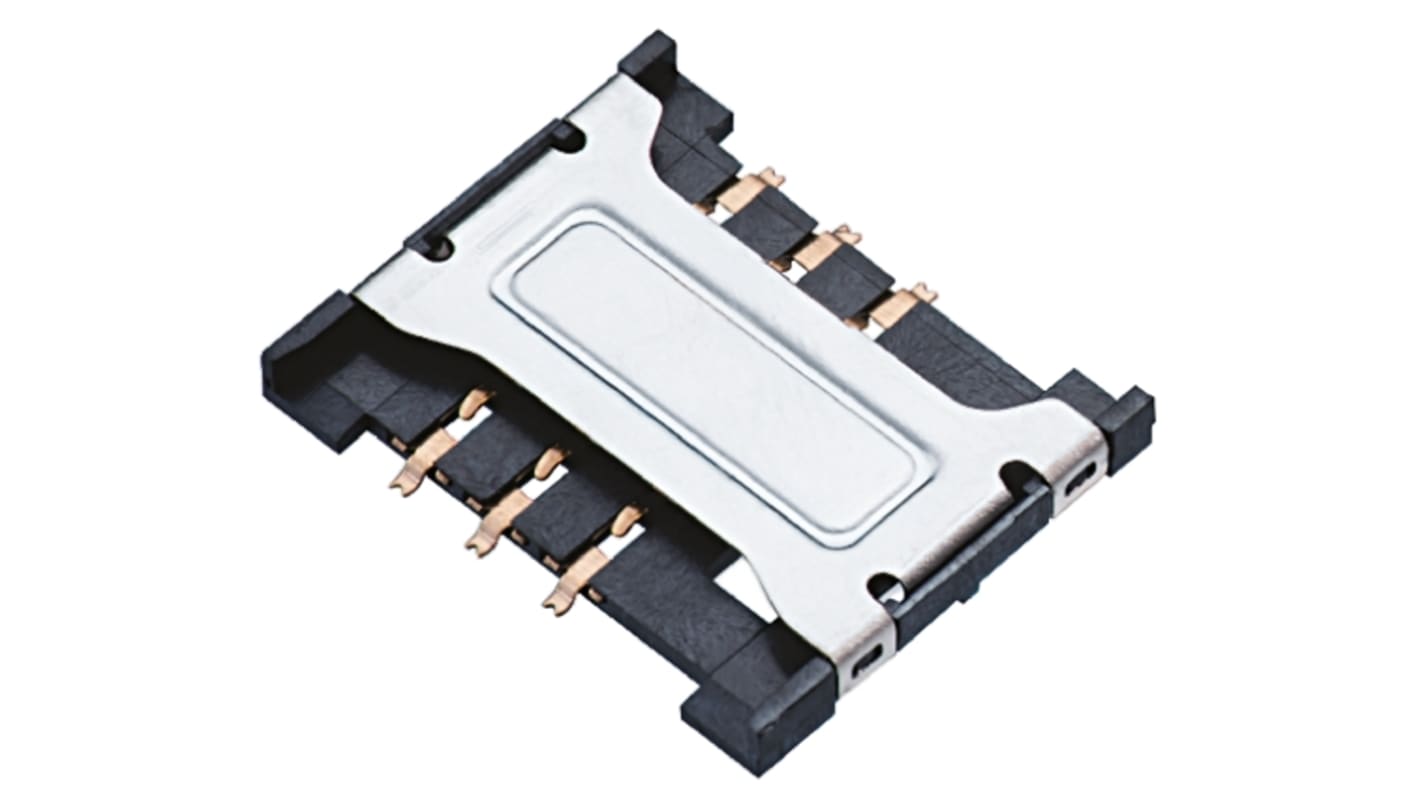

Mini SIM Card Connectors - Wurth

These Mini SIM Card Headers from Wurth have the capability of withstanding 5000 mating cycles.
Stock number 763-6782 is a standard Mini SIM Card Header.
Stock number 763-6785 is a shielded Mini SIM Card Header.
Stock number 763-6788 is a Mini SIM Card Header which does not have a card stop feature.

Memory Card Connectors

Specifications
Attribute Value
Card Type Mini SIM Card
Maximum Operating Temperature +85°C
Minimum Operating Temperature -25°C
Series 693
6 In stock - FREE next working day delivery available
Price Each
£ 1.25
(exc. VAT)
£ 1.50
(inc. VAT)
Units
Per unit
1 - 14
£1.25
15 - 49
£1.20
50 - 99
£1.15
100 +
£1.11
Packaging Options:
