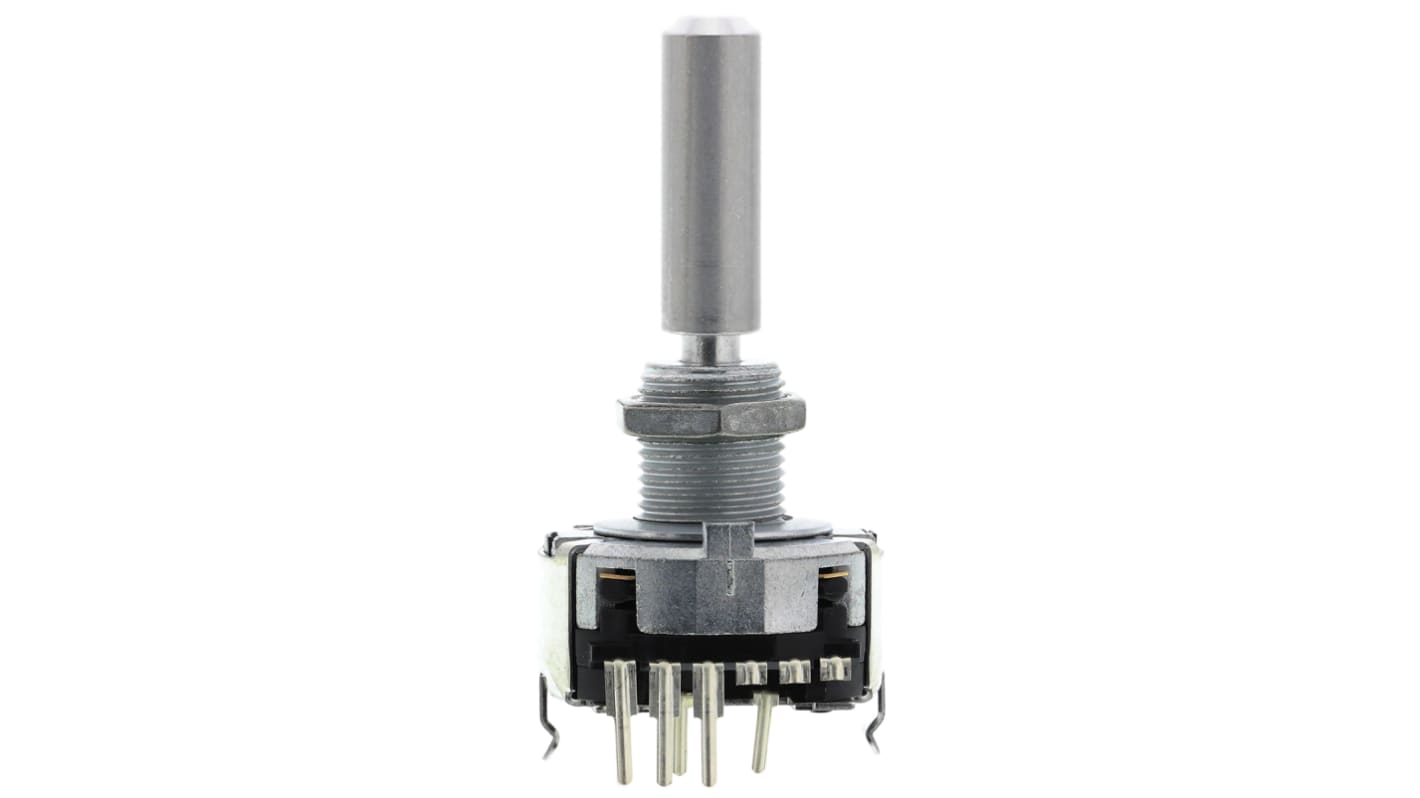

Alps Alpine 18 Pulse Incremental Mechanical Rotary Encoder with a 6 mm Flat Shaft (Not Indexed), Through Hole

  • RS Stock No. 729-5873
  • Mfr. Part No. EC20A1824401
  • Brand Alps Alpine
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

20mm Metal Shaft Encoder - EC20A Series

Heavy rotation torque and good operational feel
With or without Push-on Switch
Incremental type
Typical rating 5Vdc, 1mA
Operating life 30,000 cycles
Operating Temperature ー30 to +85℃

Specifications
Attribute Value
Pulses Per Revolution 18
Shaft Style Flat
Shaft Diameter 6 mm
Encoder Reading Incremental
Encoder Signal Digital Square Wave
Mounting Type Through Hole
Shaft Length 30mm
Index Output Not Indexed
Mounting Hole Diameter 1.2 mm, 2.6 x 1.5 mm
80 In stock - FREE next working day delivery available
Price Each
£ 10.26
(exc. VAT)
£ 12.31
(inc. VAT)
Units
Per unit
1 - 9
£10.26
10 - 24
£9.75
25 - 49
£9.12
50 - 99
£8.57
100 +
£8.31
