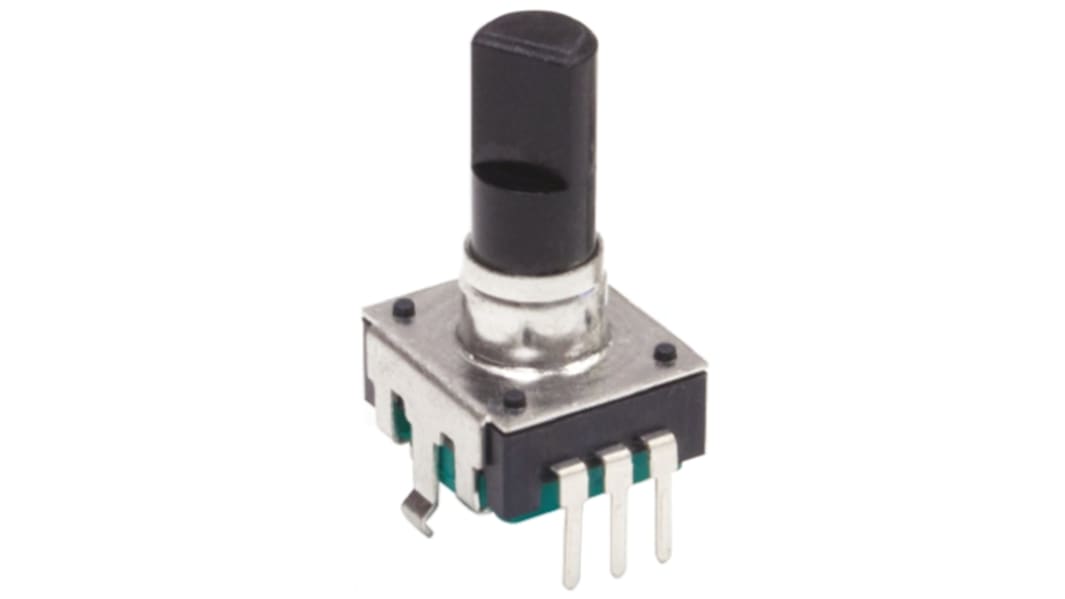

Bourns 12 Pulse Incremental Mechanical Rotary Encoder with a 6 mm Flat Shaft (Not Indexed), Through Hole

  • RS Stock No. 167-5400
  • Mfr. Part No. PEC12R-4220F-S0012
  • Brand Bourns
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

PEC12R Series - 12 mm Incremental Encoder

Pro Audio 12 mm Incremental Encoder with a momentary push switch option
Highly reliable and compact design available in a variety of configurations
Applications include level control, tuning and timer settings in:-

Audio-visual equipment
Consumer electric appliances
Radios
Musical instruments
Communications equipment

Specifications
Attribute Value
Pulses Per Revolution 12
Shaft Style Flat
Shaft Diameter 6 mm
Encoder Reading Incremental
Encoder Signal Digital Square Wave
Shaft Length 20mm
Mounting Type Through Hole
Index Output Not Indexed
Maximum Operating Speed 100rpm
Mounting Hole Diameter 1 mm, 2 x 2.1 mm
Available to back order for despatch 21/04/2020
Price Each (In a Bag of 75)
£ 0.666
(exc. VAT)
£ 0.799
(inc. VAT)
Units
Per unit
Per Bag*
75 - 75
£0.666
£49.95
150 - 225
£0.566
£42.45
300 - 450
£0.50
£37.50
525 - 1950
£0.485
£36.375
2025 +
£0.473
£35.475
*price indicative
