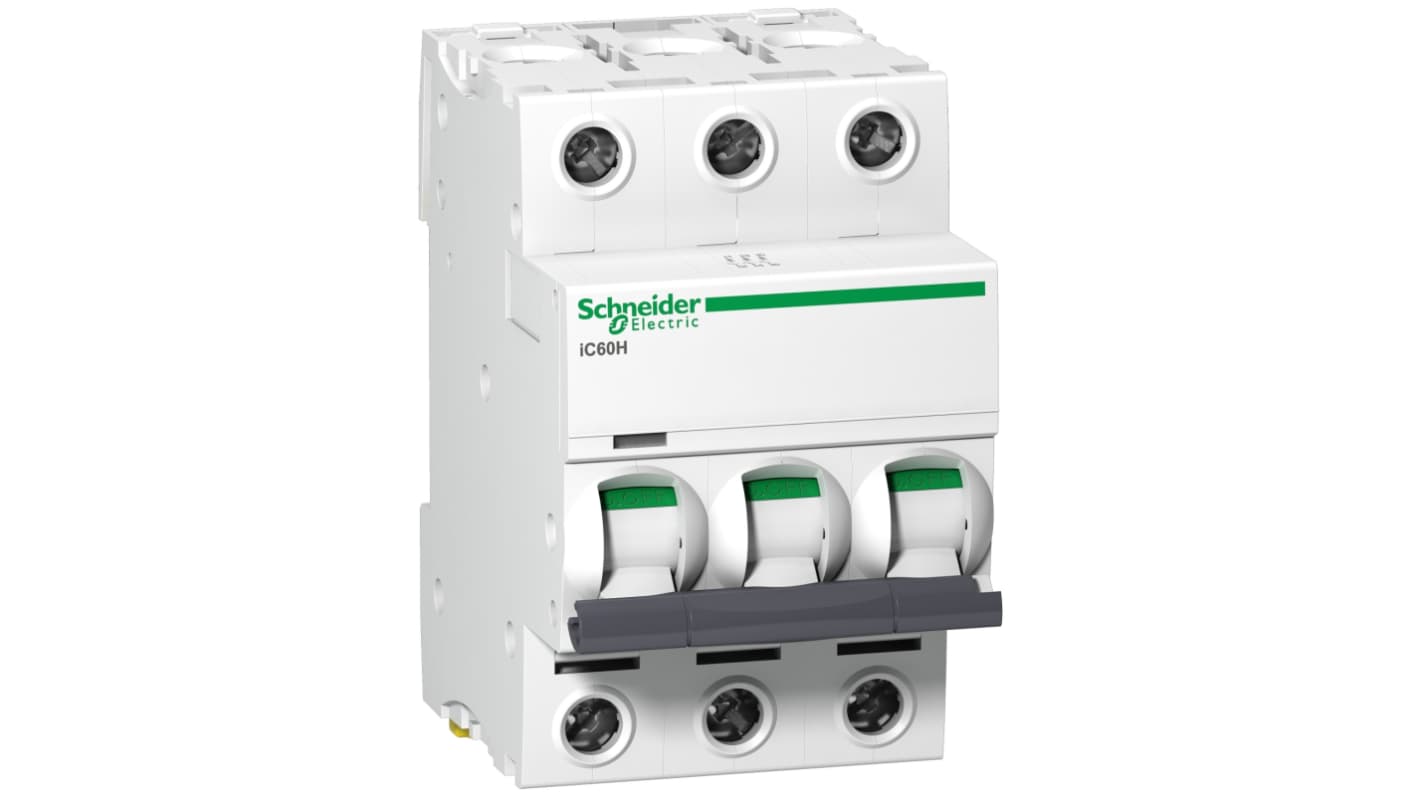

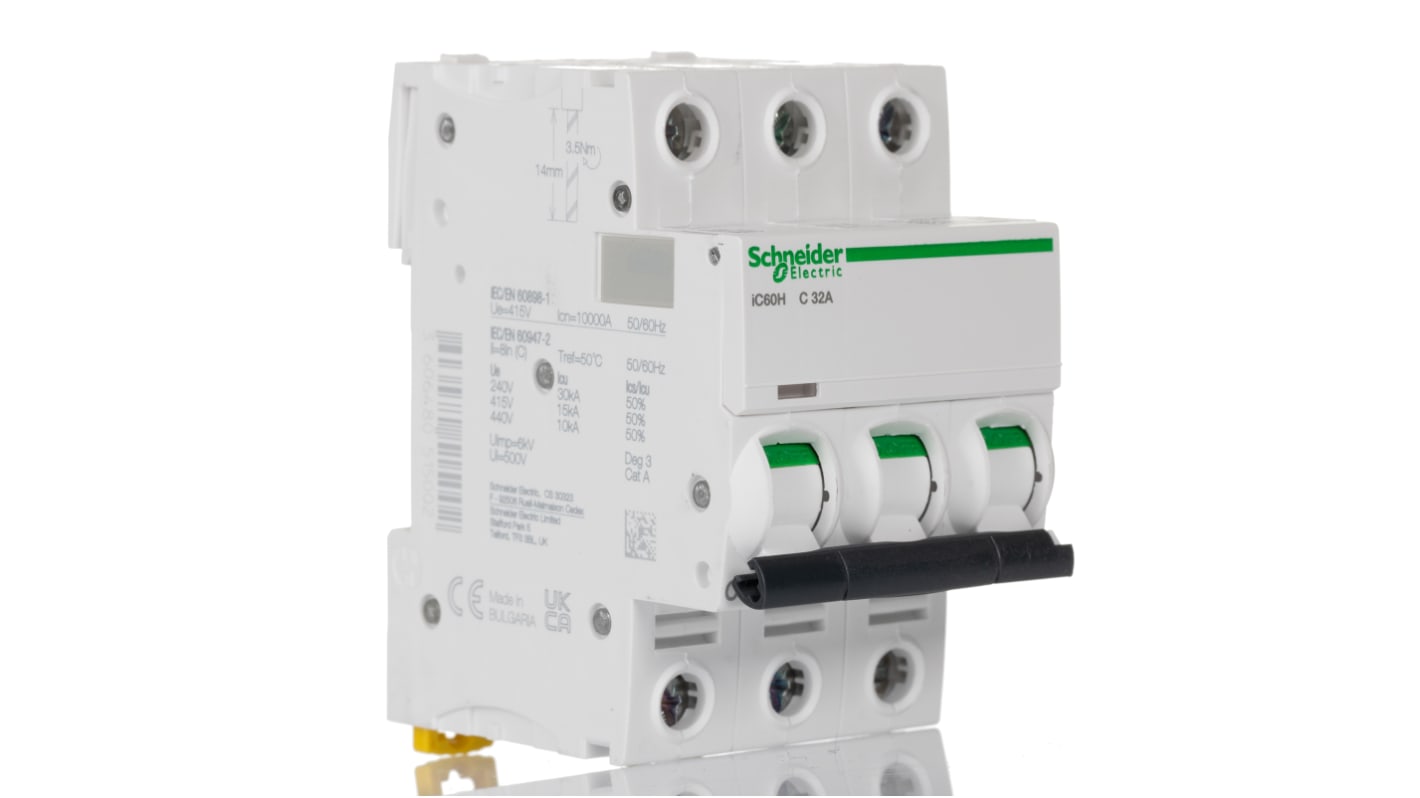

Schneider Electric Acti 9 iC60H MCB, 3P, 32A Curve C, 440V AC, 100 → 133V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 791-3398
- Mfr. Part No.:
- A9F54332
- Brand:
- Schneider Electric
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£98.30
(exc. VAT)
£117.96
(inc. VAT)
Units | Per unit |
1 - 9 | £98.30 |
10 - 14 | £92.40 |
15 + | £88.49 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 791-3398
- Mfr. Part No.:
- A9F54332
- Brand:
- Schneider Electric
Legislation and Compliance
- COO (Country of Origin):
- BG
Product Details
Schneider Electric Acti9 iC60H MCB Range
Introducing Schneider Electrics iC60H series of multi-standard circuit breakers which combine circuit protection against short circuit currents and circuit protection against overload currents alongside protecting users against indirect contact with TN and IT neutral systems.
Benefits & Features
Fully compliant with standards IEC/EN 60898 and IEC/EN 60947-2. ACTi 9 is fully tested, approved and certified by national and international third parties. It guarantees that the user's installation is safe and compliant with all relevant safety standards. These MCBs are normally used for high inductive loads where switching surges are high. Providing essential protection in industrial and commercial buildings, these miniature circuit breakers work especially well in polluted environments and networks.
VisiSafe guarantees the downstream circuit is always safe regardless of overvoltage conditions, even in the most demanding environments; the green strip indicates the safe position of contacts. VisiTrip red window on the front face indicates fault tripping allowing fast diagnosis, resolution, and reclosing loads for easier building management and reduced downtime.
Downstream circuit is always safe
Class-2 insulation: ensures continuous protection for both operators and unqualified persons.
Insulated terminals (IP20)
Highly durable with robust connections that provide twice the standard tightening torque
Provide greater continuity of service thanks to VisiTrip
Double clip for dismounting with comb busbar in place
Class-2 insulation: ensures continuous protection for both operators and unqualified persons.
Insulated terminals (IP20)
Highly durable with robust connections that provide twice the standard tightening torque
Provide greater continuity of service thanks to VisiTrip
Double clip for dismounting with comb busbar in place
What does a miniature circuit breaker do?
It protects wires from overloads and short-circuits. For overload protection the temperature of a bimetal, through which the current passes is decisive. If the nominal current—the current the circuit breaker is designed for—rises slightly, the bimetal heats up to a greater extent and, after a certain period of time, this causes the switching mechanism to trip. Today MCBs are installed in all our homes, offices and other buildings, protecting the electrical wires from damage. They have the advantage that they can be manually reset without having to replace wire as in the case of the traditional fuse. The MCBs have either a button or lever that can be flicked to reset it. They are used instead of fuses due to their convenience and improved safety features.
What are the differences in the Tripping Curves B, C, and D?
Curve B: Tripping: 3 to 5 times the rated current.
Applications: protection of generators, persons, very long cables
Curve C: Tripping: 5 to 10 times the rated current
Applications: protection of circuits and general applications
Curve D: Tripping: 10 to 14 times the rated current
Applications: protection of high surge circuits, welders, transformers and motors
Applications: protection of generators, persons, very long cables
Curve C: Tripping: 5 to 10 times the rated current
Applications: protection of circuits and general applications
Curve D: Tripping: 10 to 14 times the rated current
Applications: protection of high surge circuits, welders, transformers and motors
Schneider Electric MCB, 32A Current Rating, Thermal-Magnetic Trip Mechanism - iC60H Series - A9F54332
Take good care of downstream devices with this MCB from Schneider Electric. It has three poles and a thermal-magnetic mechanism, so you can protect multiple circuits from short circuits and overloads. Simple operation using a front toggle switch ensures it's user-friendly. As it's lockable in the off position, you can safely carry out electrical work and servicing with the sure knowledge that the power's cut. Insulated terminals add another layer of protection during installation. As this is a type-C unit with a 32A current rating and a 10kA breaking capacity, it suits high-power equipment in commercial and industrial settings.
Features & Benefits
• Electrical durability of 10,000 cycles gives you a long-lasting safety solution
• Handy space on the front for labelling, so complex distribution boards are kept organised
• Status window on the front turns red to let you know when it's tripped
• Double clip for secure DIN rail mounting
• Handy space on the front for labelling, so complex distribution boards are kept organised
• Status window on the front turns red to let you know when it's tripped
• Double clip for secure DIN rail mounting
Applications
• Motor control
• HVAC systems
• Safety and security systems
• Lighting rigs
• HVAC systems
• Safety and security systems
• Lighting rigs
Does the electrical connection feed from the bottom or top?
For convenience, this MCB accepts top and bottom electrical feeds. The device also takes flexible and rigid wires to boost its installation versatility.
Specifications
Attribute | Value |
---|---|
Number of Poles | 3P |
Current Rating | 32A |
Tripping Characteristics | Type C |
Rated AC Voltage | 440 V, 12 → 133 V, 220 → 240 V, 380 → 415V |
Rated DC Voltage | 100 → 133V |
Breaking Capacity at Maximum Voltage Rating | 10 kA |
Range | Acti 9 |
Series | iC60H |
Circuit Breaker Type | MCB |
Length | 85mm |
Width | 54mm |
Mounting Style | DIN Rail Mount |
Depth | 78.5mm |
Better World Verification | Green Premium |
Better World Product | Yes |
Tripping Mechanism | Thermal-Magnetic |
Terminal Contact Type | Screw |
Special Features | Earth Leakage Protection |
Reset Actuator Type | Rocker Switch |
