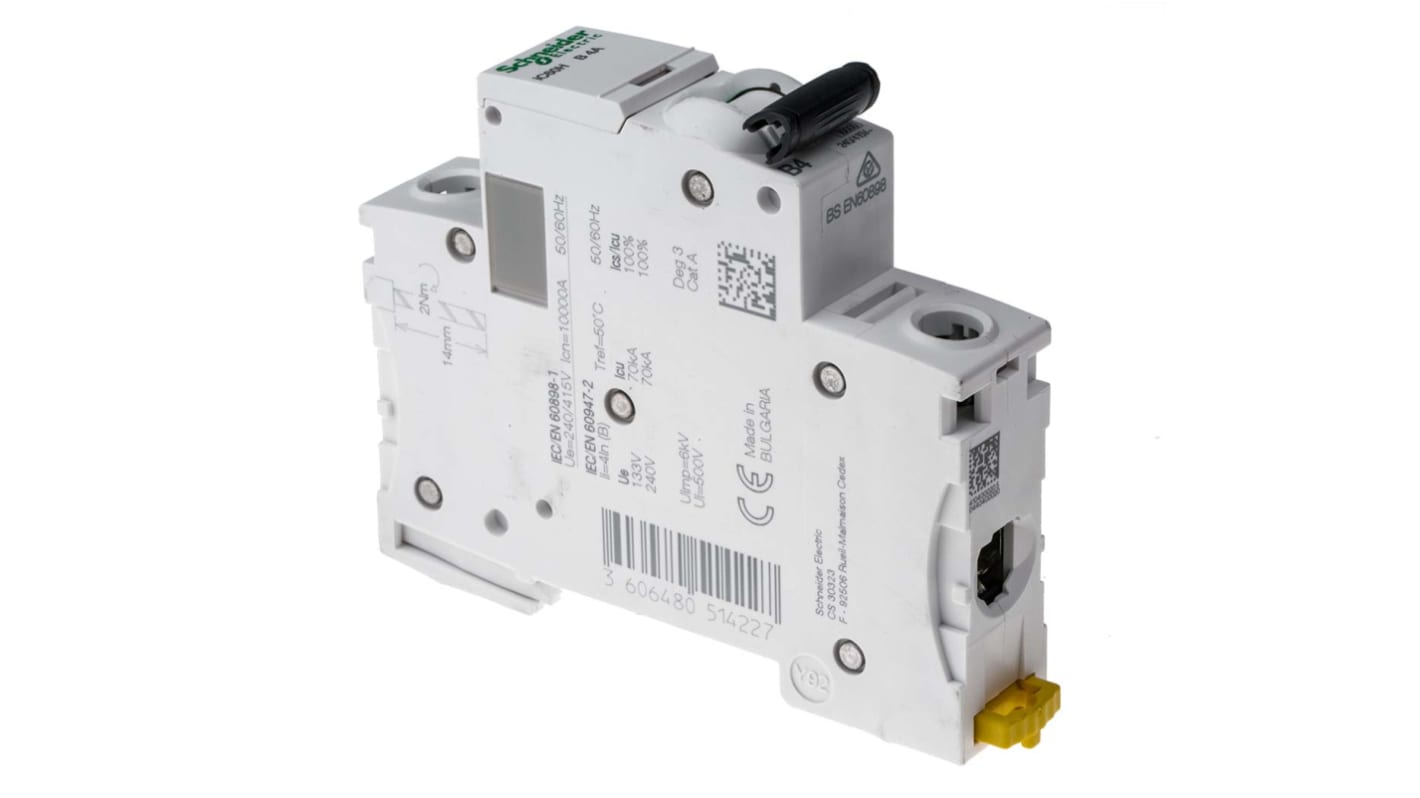

Schneider Electric Acti 9 iC60H MCB, 1P, 4A Curve B, 100 → 133V AC, 72V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 791-3158
- Mfr. Part No.:
- A9F53104
- Brand:
- Schneider Electric
6 In stock - FREE next working day delivery available
Added
Price Each
£28.45
(exc. VAT)
£34.14
(inc. VAT)
Units | Per unit |
1 - 9 | £28.45 |
10 - 14 | £27.67 |
15 + | £26.90 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 791-3158
- Mfr. Part No.:
- A9F53104
- Brand:
- Schneider Electric
Legislation and Compliance
- COO (Country of Origin):
- BG
Product Details
Schneider Electric MCB, DIN Rail Mounting, 18mm Width - Acti 9 Series - A9F53104
Give short circuits the elbow with this MCB from Schneider Electric. It's an essential safety device that breaks your electrical supply in current overload conditions, so there's minimal chance of power faults causing equipment failure and blowouts. It's also just what you need for user safety, as it reduces the risk of electric shocks. A handy trip indicator puts you in the know when there's a problem. You can maximise board packing efficiency, thanks to its compact dimensions of 85 (H) x 18 (W) x 78.5mm (D). As the unit withstands impulse voltages of up to 6kV, it's on hand to safely halt powerful electrical spikes.
Features & Benefits
• Clips onto a DIN rail for quick, tool-free mounting
• Toggle control makes it easy to manually switch the device on and off
• Mechanical durability of up to 20,000 cycles, for reliability throughout its extended service life
• IP20-rated enclosure that's protected against human touch and objects larger than 12mm
• Toggle control makes it easy to manually switch the device on and off
• Mechanical durability of up to 20,000 cycles, for reliability throughout its extended service life
• IP20-rated enclosure that's protected against human touch and objects larger than 12mm
Applications
• Commercial lighting systems
• Automotive industry
• Residential buildings
• Hospitals
• Automotive industry
• Residential buildings
• Hospitals
Can I lock this MCB?
You have the option of padlocking the breaker for safety, which helps to prevent tampering.
Specifications
Attribute | Value |
---|---|
Number of Poles | 1P |
Current Rating | 4A |
Tripping Characteristics | Type B |
Rated AC Voltage | 100 → 133 V, 12 → 60 V, 220 → 240V |
Rated DC Voltage | 72 V, 12 → 48V |
Breaking Capacity at Maximum Voltage Rating | 10 kA |
Range | Acti 9 |
Series | iC60H |
Circuit Breaker Type | MCB |
Length | 85mm |
Width | 18mm |
Mounting Style | DIN Rail Mount |
Depth | 78.5mm |
Better World Verification | Green Premium |
Better World Product | Yes |
Terminal Contact Type | Screw |
Tripping Mechanism | Thermal-Magnetic |
Reset Actuator Type | Rocker Switch |
