Better World

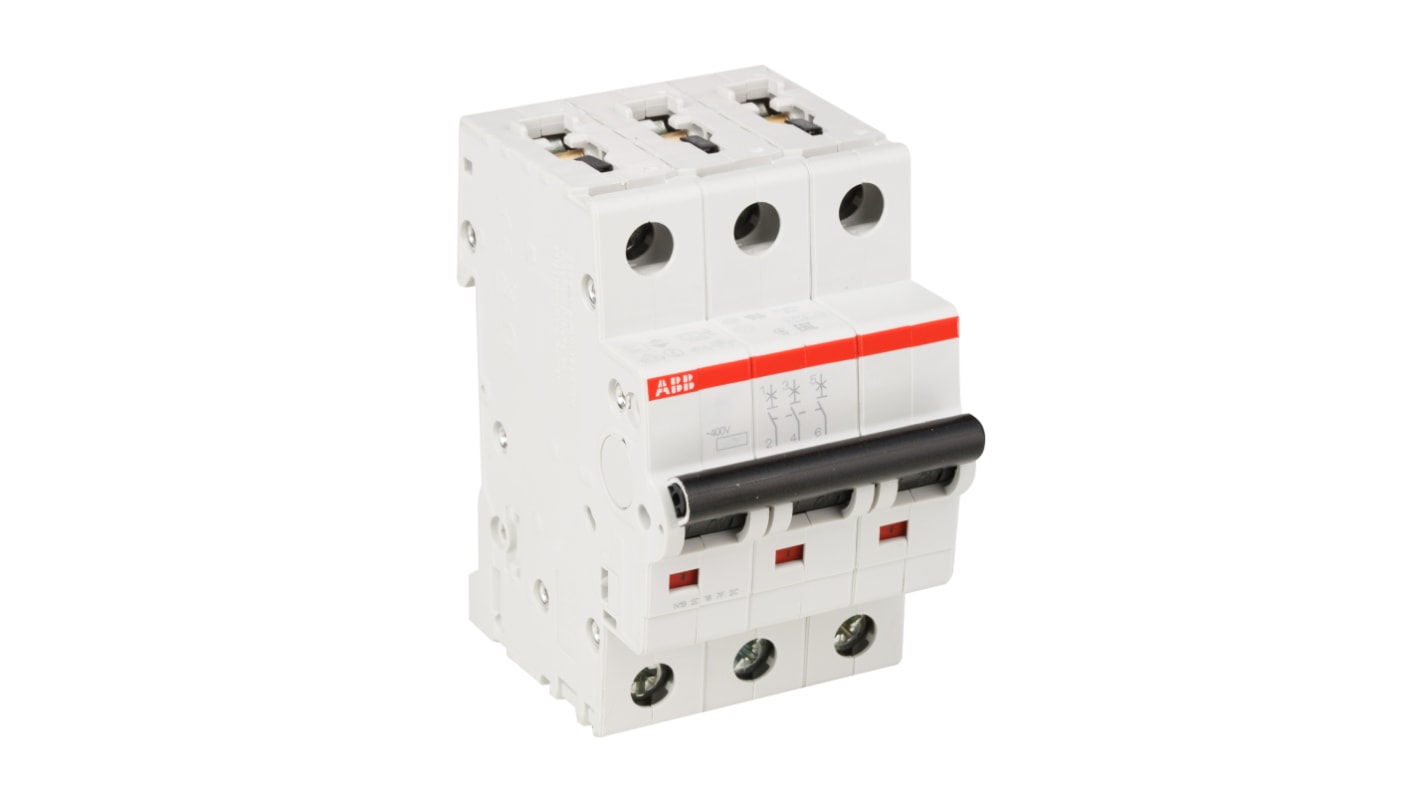

ABB System Pro M Compact S200 MCB, 3P, 32A Curve D, 440V AC, 6 kA Breaking Capacity
- RS Stock No.:
- 527-9633
- Mfr. Part No.:
- 2CDS253001R0321 S203-D32
- Brand:
- ABB
23 In stock - FREE next working day delivery available
12 available from Europe for delivery within 1 working day(s).
Added
Price Each
£61.39
(exc. VAT)
£73.67
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £61.39 |
| 5 - 9 | £58.32 |
| 10 - 24 | £55.25 |
| 25 - 49 | £52.18 |
| 50 + | £49.10 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 527-9633
- Mfr. Part No.:
- 2CDS253001R0321 S203-D32
- Brand:
- ABB
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details
ABB 3-Pole MCB, 440V AC Voltage Rating, 6kA Breaking Capacity - S200 Series - 2CDS253001R0321 S203-D32
Looking for a compact short-circuit protection solution for your electrical system? Choose this MCB from ABB. Its three-pole configuration makes it a practical choice for safeguarding three-phase systems from the effects of overvoltage and short circuits. Thanks to its thermoplastic housing, the unit is durable and can withstand mechanical impact, so you can rely on it for longevity in harsh environments. It's also finger-safe, with terminals that are located out of reach of your hands, to prevent accidental contact with live parts.
Features & Benefits
• Current rating of 32A suitable for high-current applications
• Compact dimensions of 88 (height) x 52.5 (width) x 69mm (depth) for use in setups with limited space
• Light weight of 375g so it doesn't put pressure on the mounting surface
• Compatible with both busbars and conductors for versatility
• Compact dimensions of 88 (height) x 52.5 (width) x 69mm (depth) for use in setups with limited space
• Light weight of 375g so it doesn't put pressure on the mounting surface
• Compatible with both busbars and conductors for versatility
Applications
• Industrial fans
• Low-pressure and high-pressure compressors
• Low-pressure and high-pressure compressors
What's the temperature tolerance range of this MCB?
This MCB can operate reliably within a temperature range of -25°C to +55°C, so it's suitable for use in harsh conditions.
Standards
BS EN 60898
Specifications
Attribute | Value |
|---|---|
| Number of Poles | 3P |
| Current Rating | 32A |
| Tripping Characteristics | Type D |
| Rated AC Voltage | 440V |
| Breaking Capacity at Maximum Voltage Rating | 6 kA |
| Range | System Pro M Compact |
| Series | S200 |
| Circuit Breaker Type | MCB |
| Width | 69mm |
| Length | 52.5mm |
| Mounting Style | DIN Rail Mount |
| Depth | 76mm |
| Model Number | S203-D32 |
| Better World Claim | Designed for disassembly |
| Better World Product | Yes |
| Terminal Contact Type | Screw |
| Tripping Mechanism | Thermal |
