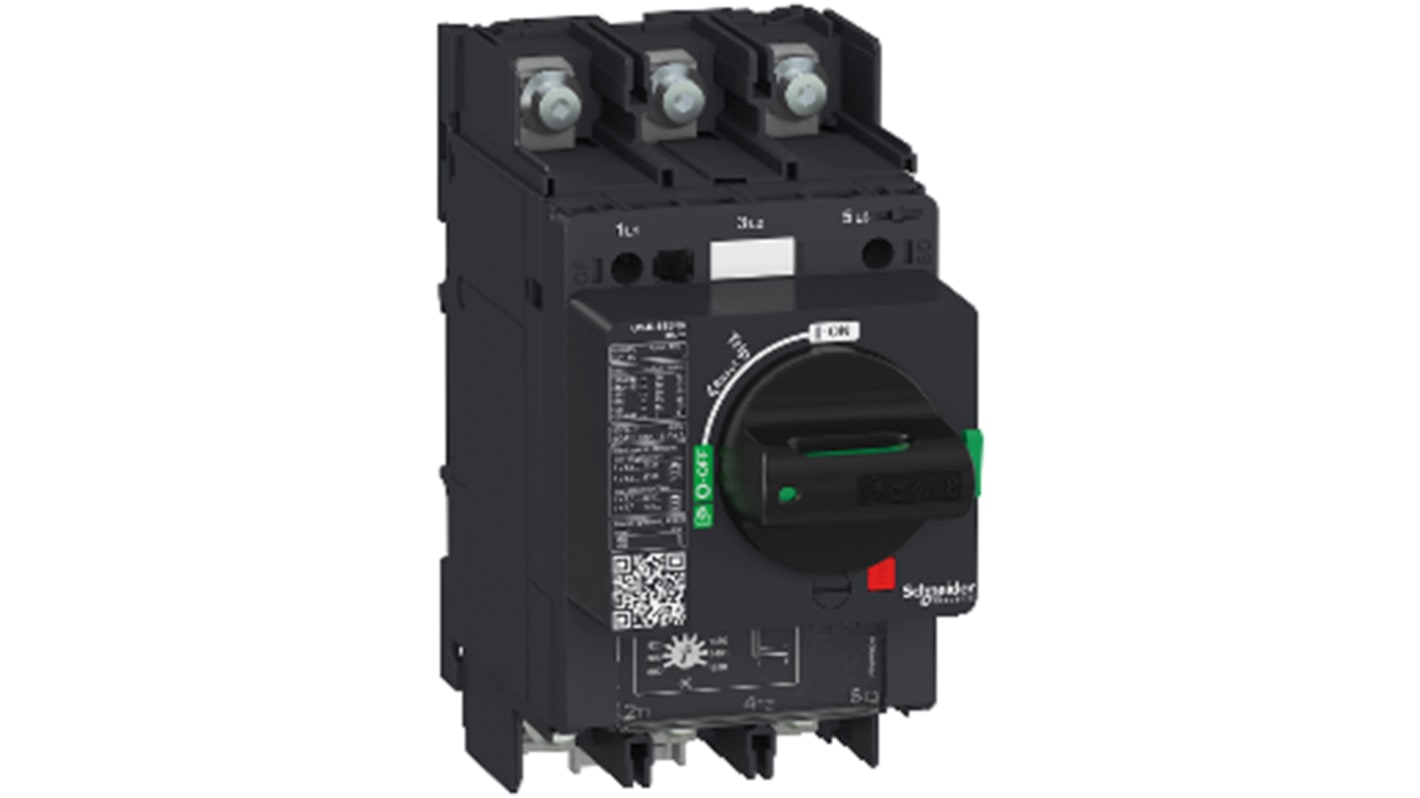

Schneider Electric TeSys GV4L MCB, 3P, 3.5A, 690V AC, 50 kA Breaking Capacity
- RS Stock No.:
- 175-1427
- Mfr. Part No.:
- GV4L03N6
- Brand:
- Schneider Electric
Available to back order for despatch 09/07/2024
Added
Price Each
£422.80
(exc. VAT)
£507.36
(inc. VAT)
| Units | Per unit |
| 1 + | £422.80 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 175-1427
- Mfr. Part No.:
- GV4L03N6
- Brand:
- Schneider Electric
Legislation and Compliance
- COO (Country of Origin):
- PL
Product Details
New TeSys GV4 is a compact and robust motor circuit breaker, up to 115 A with 100 kA breaking capacity, available with 3 kinds of protection: magnetic, electronic thermal magnetic, electronic thermal magnetic with advanced protections and alarming designed for demanding applications.TeSys GV4 is also equiped with patented Everlink power connections, and may be equiped with a wide range of accessories, mainly: auxiliaries (1 OF, 1SD, 1 coil MN or MX), rotary handle (direct, front extended or side) and advanced alarming and fault differentiation module.
b Magnetic GV4L: to be used with an overload relay or a drive
b Thermal magnetic GV4P: electronic protection with wide range setting, dual class (10 & 20)
b Multifunction motor protection GV4PEM: GV4P with adjustable advanced protections and possibility to have
a side module SDx for alarming and fault differentiation.
b Thermal magnetic GV4P: electronic protection with wide range setting, dual class (10 & 20)
b Multifunction motor protection GV4PEM: GV4P with adjustable advanced protections and possibility to have
a side module SDx for alarming and fault differentiation.
Specifications
Attribute | Value |
|---|---|
| Number of Poles | 3P |
| Current Rating | 3.5A |
| Rated AC Voltage | 690V |
| Breaking Capacity at Maximum Voltage Rating | 50 kA |
| Range | TeSys |
| Series | GV4L |
| Circuit Breaker Type | MCB |
| Width | 165mm |
| Length | 81mm |
| Mounting Style | DIN Rail Mount |
| Depth | 155mm |
| Model Number | GV4L03N6 |
| Better World Verification | Green Premium |
| Better World Product | Yes |
| Terminal Contact Type | Screw |
| Tripping Mechanism | Magnetic |
