ACP16, Single Sided Matrix Board With 1mm Holes 2.54mm Pitch, 100 x 160mm

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Cif Athelec Matrix Board

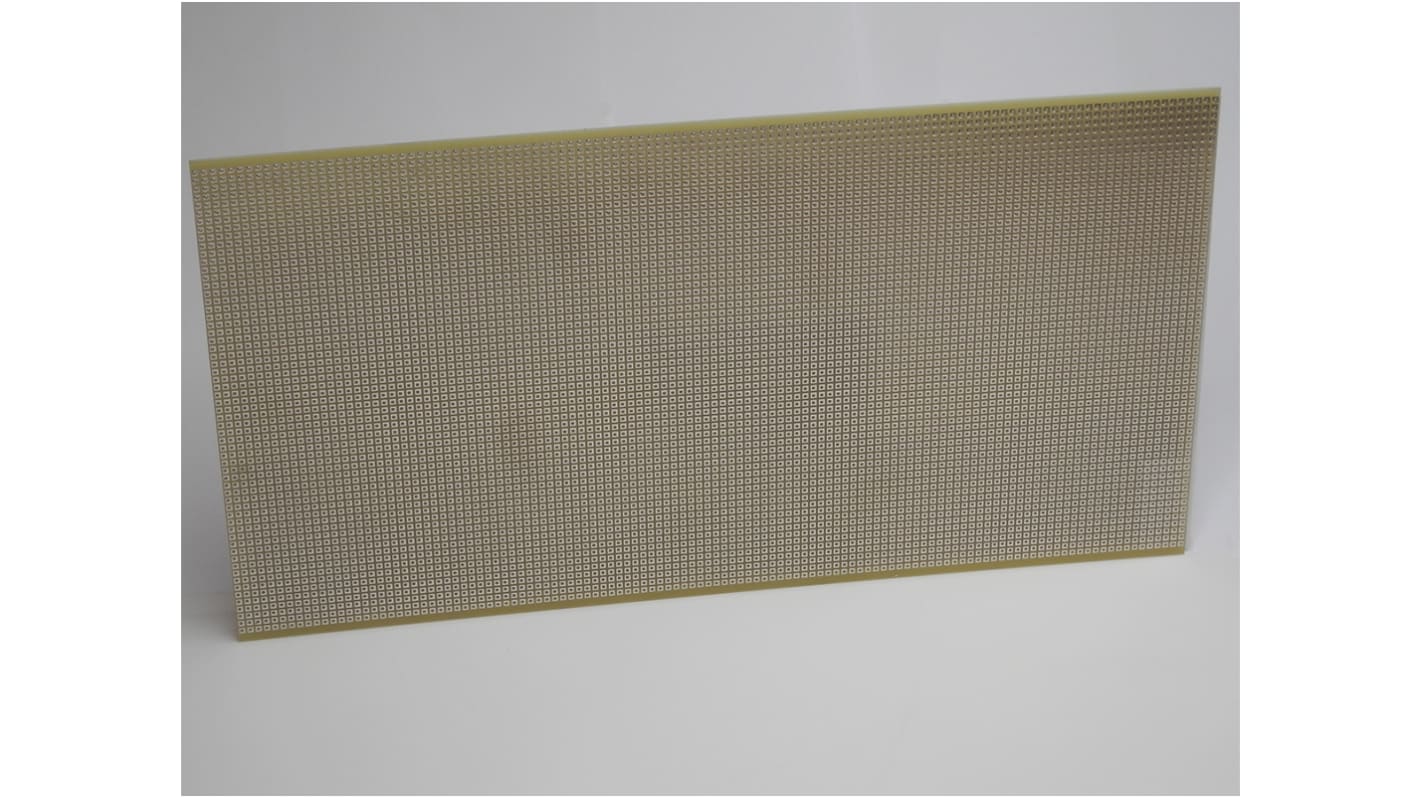

The Cif Athelec matrix board is 100mm long and 160mm wide. It is a single-sided board with 1mm holes and 2.54mm pitch.

Features and Benefits

• 15/10th tinned copper clad pads on CEM 1
• A gap of 0.54mm on the whole surface
• Copper thickness 35μm
• Square pads 2mm each side

Applications

• As a pre design tool
• Laying out electrical components securely
• To customise circuit board fabrication

Specifications
Attribute Value
Number of Sides Single Sided
Hole Pitch 2.54mm
Dimensions 100 x 160mm
Length 100mm
Width 160mm
Hole Diameter 1mm
Copper Thickness 35µm
