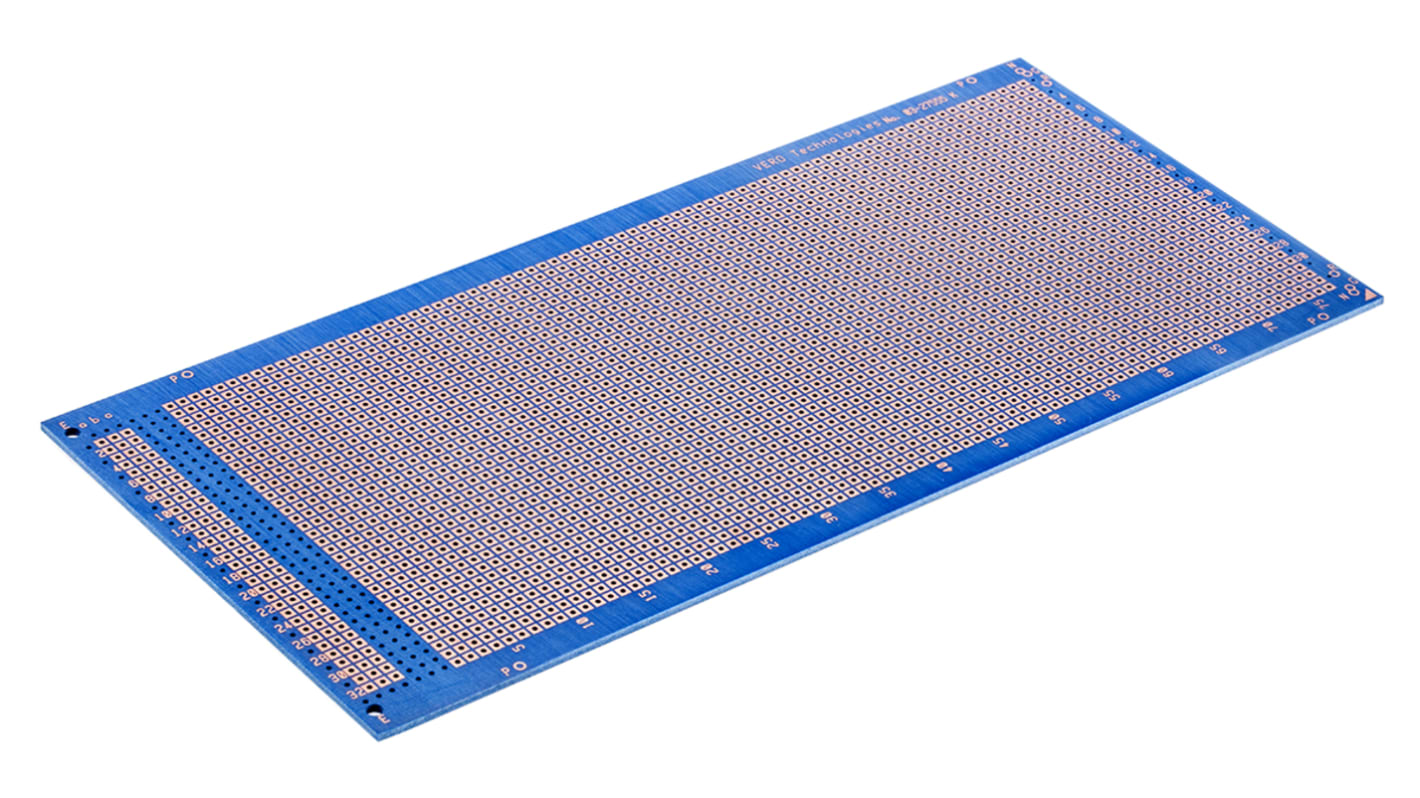

03-27555, Single Sided DIN 41612 Matrix Board FR4 with 77 x 34 1.02mm Holes, 2.54 x 2.54mm Pitch, 220 x 100 x 1.6mm

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Square Pad PCB

Recommended for wire-wrapping applications
Epoxy glass - CEM 30
1.6mm thick, copper-clad
Single sided
Hole pitch 2.54mm (0.1in)
Hole dia 1.0mm

DIN Type Matrixboard

Matrix boards with 1mm holes on a 2.54mm pitch.

Specifications
Attribute Value
Number of Sides 1
Hole Pitch 2.54 x 2.54mm
Dimensions 220 x 100 x 1.6mm
Length 220mm
Width 100mm
Thickness 1.6mm
Base Material Epoxy Glass Fabric Laminate
Hole Diameter 1.02mm
FR Material Grade FR4
Hole Layout 77 x 34
Connection DIN 41612
27 In stock for FREE next working day delivery
Price Each
£ 46.50
(exc. VAT)
£ 55.80
(inc. VAT)
Units
Per unit
1 - 4
£46.50
5 - 9
£44.17
10 - 39
£41.85
40 +
£39.51
