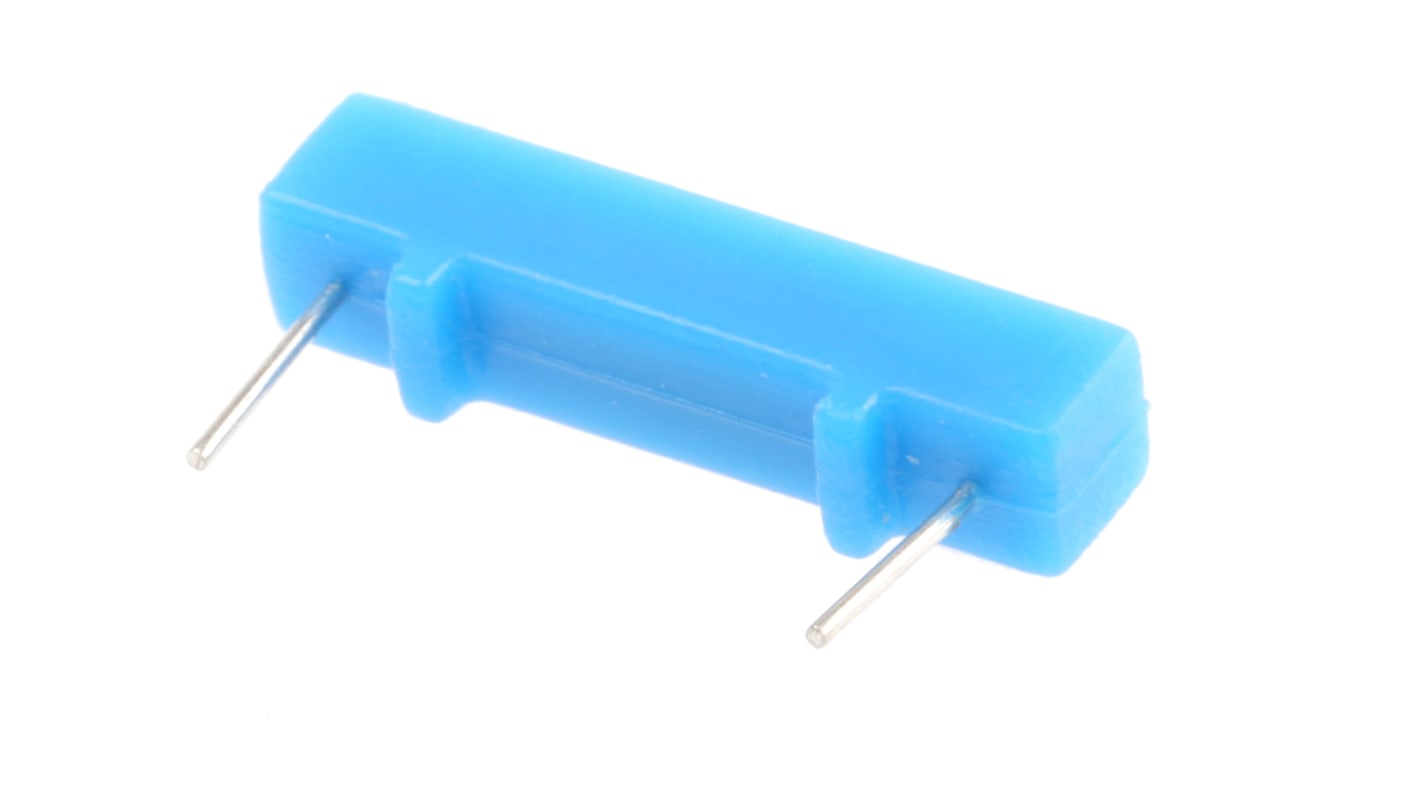

Assemtech Rectangular Reed Switch, NO, 24V, 100mA
- RS Stock No.:
- 361-4977
- Mfr. Part No.:
- S1325
- Brand:
- Assemtech
Available to back order for despatch 24/10/2024
Added
Price Each
£1.83
(exc. VAT)
£2.20
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £1.83 |
| 5 - 9 | £1.80 |
| 10 + | £1.67 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 361-4977
- Mfr. Part No.:
- S1325
- Brand:
- Assemtech
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Fully Encapsulated
Contact Form A - Normally open
24Vac and 70Vac version available
Operating temperature range: -20 to +70°C (24V); -25 to +70°C (70V)
Pin pitch 12mm
Contact resistance 200mΩ (24V); 150mΩ (70V)
24Vac and 70Vac version available
Operating temperature range: -20 to +70°C (24V); -25 to +70°C (70V)
Pin pitch 12mm
Contact resistance 200mΩ (24V); 150mΩ (70V)
Specifications
Attribute | Value |
|---|---|
| Switch Shape | Rectangular |
| Normal State Configuration | NO |
| Terminal Type | PCB Pin |
| Maximum Current | 100mA |
| Maximum AC Voltage | 24V |
| Contact Resistance | 200mΩ |
| Total Length | 14.8mm |
| Length | 14.8mm |
| Dimensions | 14.8 x 3.2 x 3.2mm |
| Maximum Operating Temperature | +70°C |
| Width | 3.2mm |
| Depth | 3.2mm |
| Minimum Operating Temperature | -25°C |
