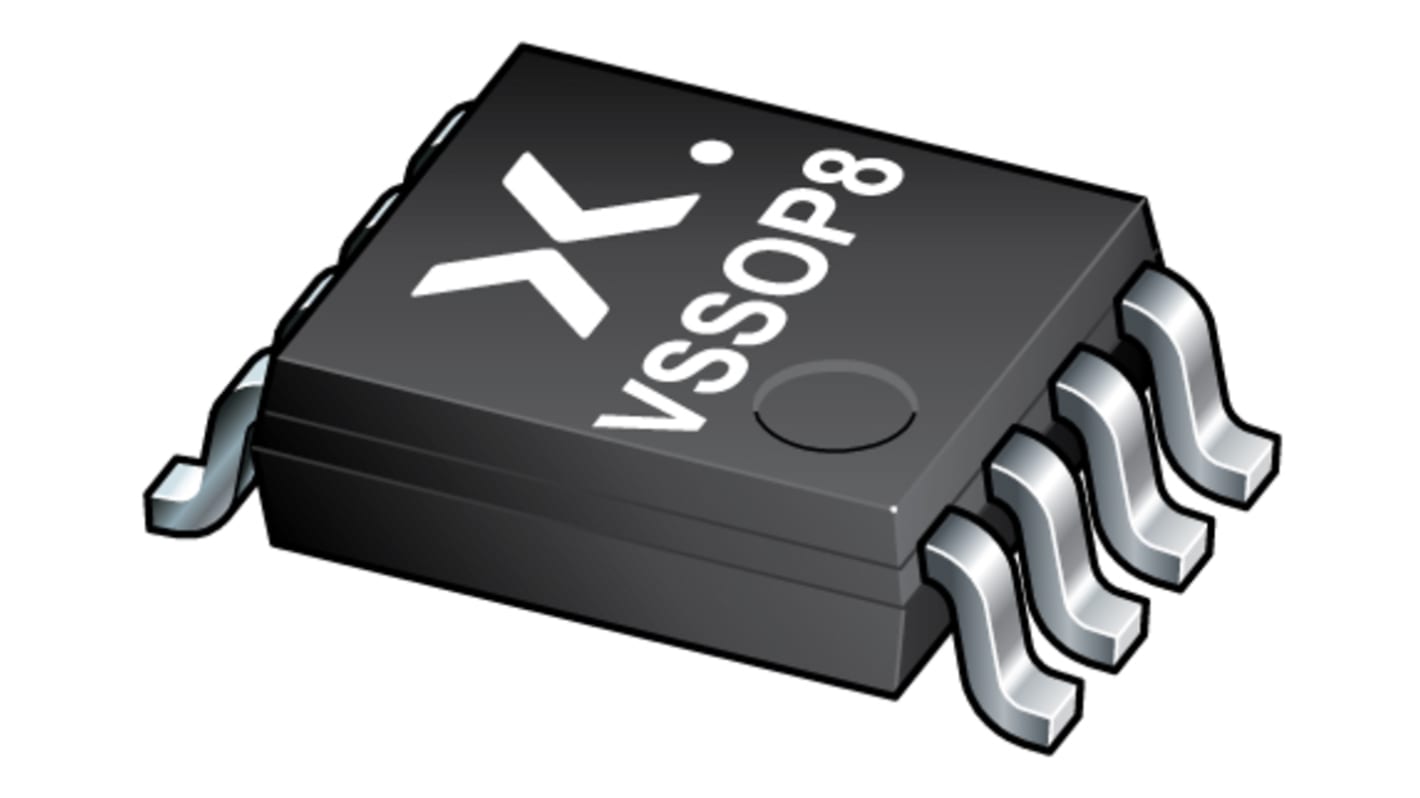

Nexperia 74AUP2G08DC,125, Dual 2-Input AND Schmitt Trigger Logic Gate, 8-Pin VSSOP

  • RS Stock No. 153-2935
  • Mfr. Part No. 74AUP2G08DC,125
  • Brand Nexperia
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Low-power dual 2-input AND gate, The 74AUP2G08 provides the dual 2-input AND function. Schmitt-trigger action at all inputs makes the circuit tolerant to slower input rise and fall times across the entire VCC range from 0.8 V to 3.6 V. This device ensures a very low static and dynamic power consumption across the entire VCC range from 0.8 V to 3.6 V. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing a damaging backflow current through the device when it is powered down.

Wide supply voltage range from 0.8 V to 3.6 V
High noise immunity
Low static power consumption, ICC = 0.9 μA (maximum)
Latch-up performance exceeds 100 mA per JESD78 Class II
Inputs accept voltages up to 3.6 V
Low noise overshoot and undershoot < 10 % of VCC
IOFF circuitry provides partial power-down mode operation
Multiple package options

Specifications
Attribute Value
Logic Function AND
Mounting Type Surface Mount
Number of Elements 2
Number of Inputs per Gate 2
Schmitt Trigger Input Yes
Package Type VSSOP
Pin Count 8
Logic Family AUP
Input Type CMOS
Maximum Operating Supply Voltage 3.6 V
Maximum High Level Output Current -4mA
Maximum Propagation Delay Time @ Maximum CL 24 @ 30 pF
Minimum Operating Supply Voltage 0.8 V
Maximum Low Level Output Current 4mA
Maximum Operating Temperature +125 °C
Output Type ECL
Length 2.1mm
Propagation Delay Test Condition 30pF
Dimensions 2.1 x 2.4 x 0.85mm
Minimum Operating Temperature -40 °C
Width 2.4mm
Height 0.85mm
5825 In stock - FREE next working day delivery available
Price Each (In a Pack of 25)
£ 0.141
(exc. VAT)
£ 0.169
(inc. VAT)
Units
Per unit
Per Pack*
25 +
£0.141
£3.525
*price indicative
