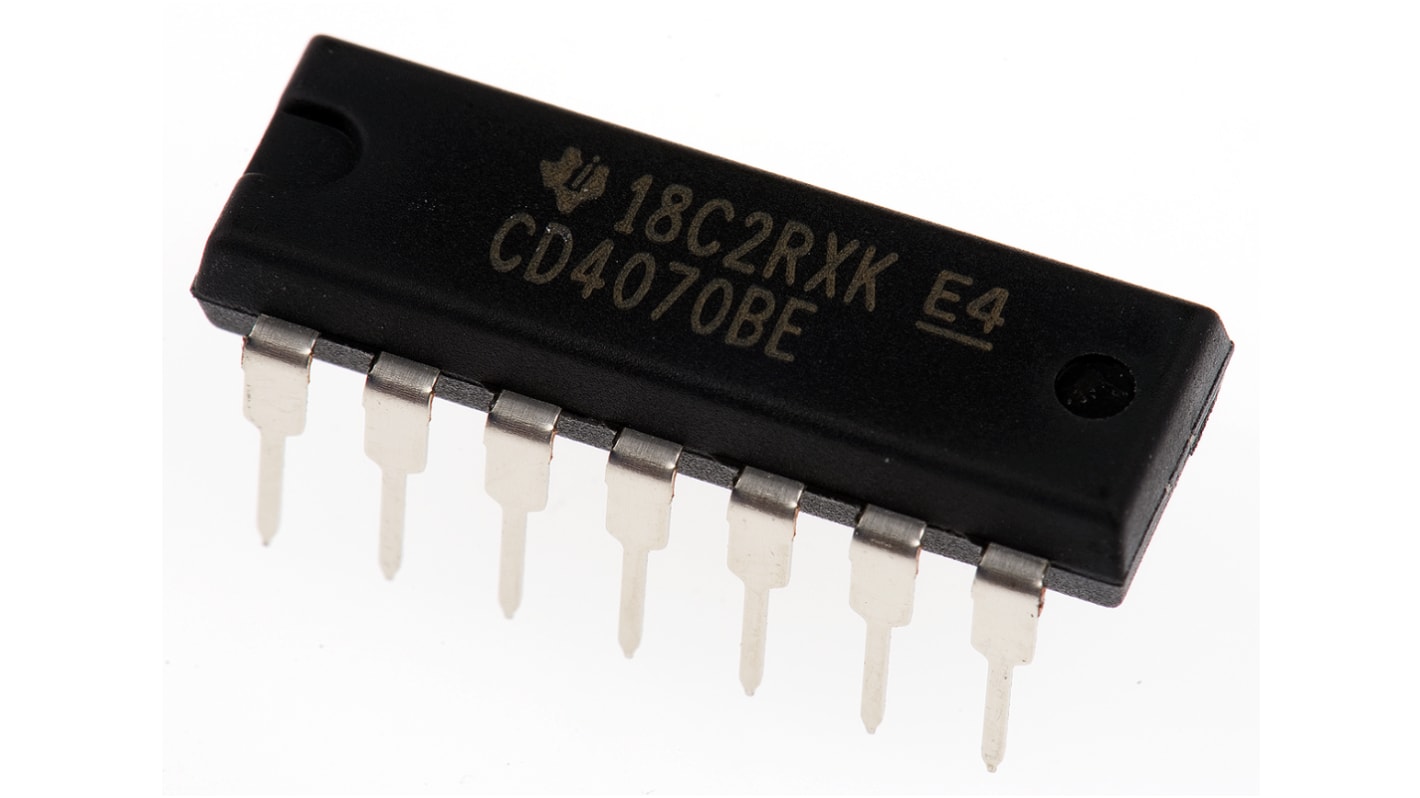

Texas Instruments CD4070BE, Quad 2-Input XOR Logic Gate, 14-Pin PDIP

RS Stock No.:: 527-069
Mfr. Part No.:: CD4070BE
Brand:: Texas Instruments

Texas Instruments CD4070BE, Quad 2-Input XOR Logic Gate, 14-Pin PDIP

250 In stock - FREE next working day delivery available

25 available from Europe for delivery within 1 working day(s).

Added

Price Each (In a Tube of 25)

£0.482

(exc. VAT)

£0.578

(inc. VAT)

Units	Per unit	Per Tube*
25 - 100	£0.482	£12.05
125 - 225	£0.458	£11.45
250 - 600	£0.412	£10.30
625 - 1225	£0.371	£9.275
1250 +	£0.352	£8.80
*price indicative

RS Stock No.:: 527-069
Mfr. Part No.:: CD4070BE
Brand:: Texas Instruments

Technical Reference

ESD Control Selection Guide V1

Legislation and Compliance

Product Details

4000 Series Logic Gates, Texas Instruments

Texas Instruments range of standard Logic Gates from the 4000 Series CMOS Logic Family

4000 CMOS Logic Family, Texas Instruments

CMOS Family devices
Wide operating voltage range: 3 to 18V

Specifications

Attribute	Value
Logic Function	XOR
Mounting Type	Through Hole
Number of Elements	4
Number of Inputs per Gate	2
Schmitt Trigger Input	No
Package Type	PDIP
Pin Count	14
Logic Family	4000
Maximum Operating Supply Voltage	18 V
Maximum High Level Output Current	-4.2mA
Maximum Propagation Delay Time @ Maximum CL	100 ns @ 15 V, 130 ns @ 10 V, 280 ns @ 5 V
Minimum Operating Supply Voltage	3 V
Maximum Low Level Output Current	4.2mA
Minimum Operating Temperature	-55 °C
Height	4.57mm
Width	6.35mm
Length	19.3mm
Maximum Operating Temperature	+125 °C
Propagation Delay Test Condition	50pF
Dimensions	19.3 x 6.35 x 4.57mm
