- RS Stock No.:
- 190-6350
- Mfr. Part No.:
- MAX4206ETE+
- Brand:
- Maxim Integrated
- RS Stock No.:
- 190-6350
- Mfr. Part No.:
- MAX4206ETE+
- Brand:
- Maxim Integrated
Technical Reference
Legislation and Compliance
Product Details
Single Supply Capability Reduces System Power Supply Requirements
+2.7V to +11V Single-Supply Operation
Also Supports ±2.7V to ±5.5V Dual-Supply Operation if Required
Wide Dynamic Range Supports Most Photodiode Current Measurement Applications
5 Decades of Dynamic Range (10nA to 1mA)
Monotonic Over a 1nA to 1mA Range
Adjustable Output Scale Factor
0.25V/Decade Internally Trimmed Output Scale Factor
Adjustable Output Offset Voltage
Internal 10nA to 10μA Reference Current Source
0.5V Input Common-Mode Voltage
Small Package and Few External Components Saves Space and Simplifies Design-In

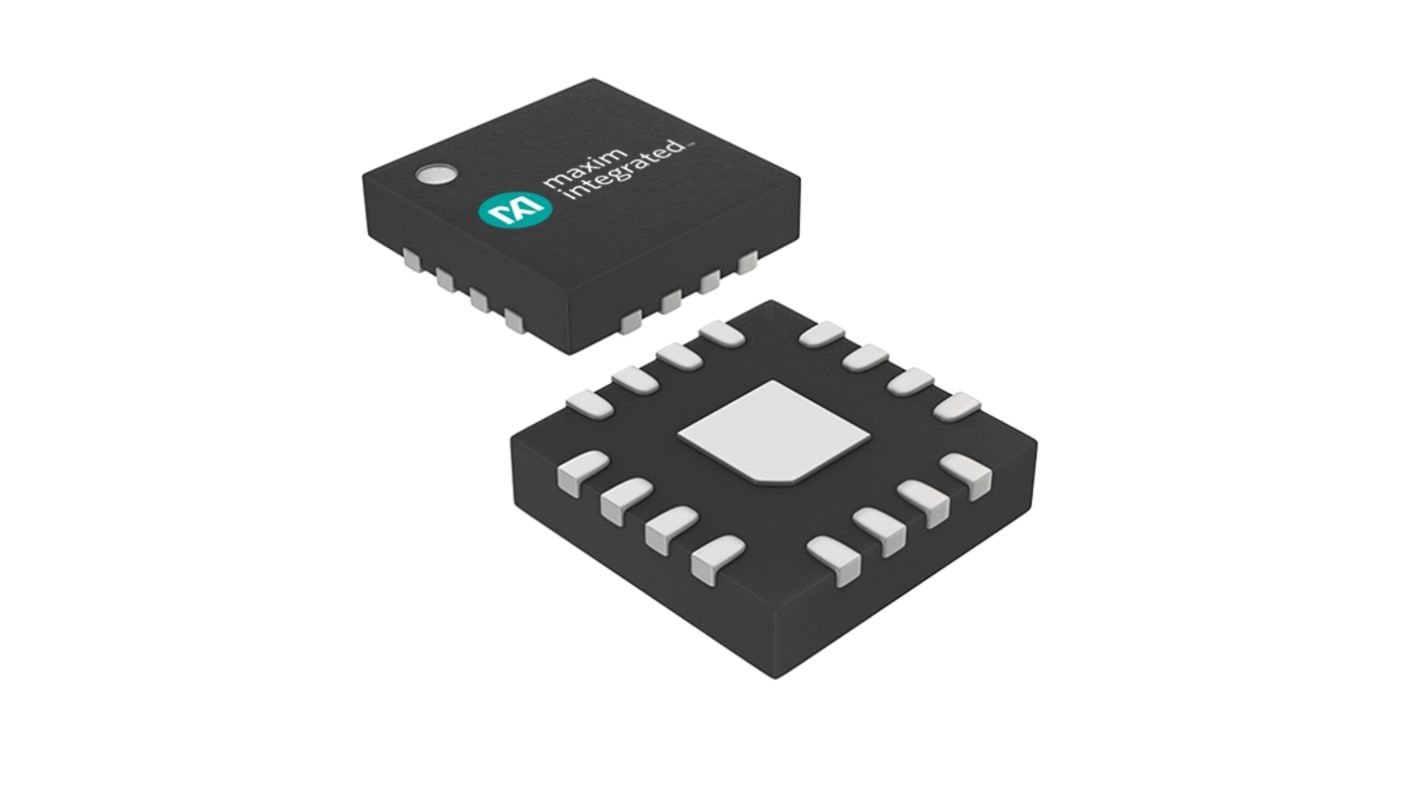

16-Pin TQFN Package (4mm x 4mm x0.8mm)
Applications
Analog Signal Processing
Medical Instrumentation
Photodiode Current Monitoring
Portable Instrumentatio
+2.7V to +11V Single-Supply Operation
Also Supports ±2.7V to ±5.5V Dual-Supply Operation if Required
Wide Dynamic Range Supports Most Photodiode Current Measurement Applications
5 Decades of Dynamic Range (10nA to 1mA)
Monotonic Over a 1nA to 1mA Range
Adjustable Output Scale Factor
0.25V/Decade Internally Trimmed Output Scale Factor
Adjustable Output Offset Voltage
Internal 10nA to 10μA Reference Current Source
0.5V Input Common-Mode Voltage
Small Package and Few External Components Saves Space and Simplifies Design-In
16-Pin TQFN Package (4mm x 4mm x0.8mm)
Applications
Analog Signal Processing
Medical Instrumentation
Photodiode Current Monitoring
Portable Instrumentatio
Specifications
Attribute | Value |
---|---|
Power Supply Type | Dual, Single |
Typical Single Supply Voltage | 2.7 →11 V |
Typical Dual Supply Voltage | ±2.7 → ±5.5V |
Maximum Input Offset Voltage | 5mV |
Mounting Type | Surface Mount |
Package Type | TQFN |
Pin Count | 16 |
Dimensions | 4.1 x 4.1 x 0.75mm |
Height | 0.75mm |
Length | 4.1mm |
Maximum Operating Temperature | +85 °C |
Width | 4.1mm |
Minimum Operating Temperature | -40 °C |
