9.53mm Shackle ABS, 330mm Attachment Point

  • RS Stock No. 174-9125
  • Mfr. Part No. 148647
  • Brand Brady
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Brady Lockout

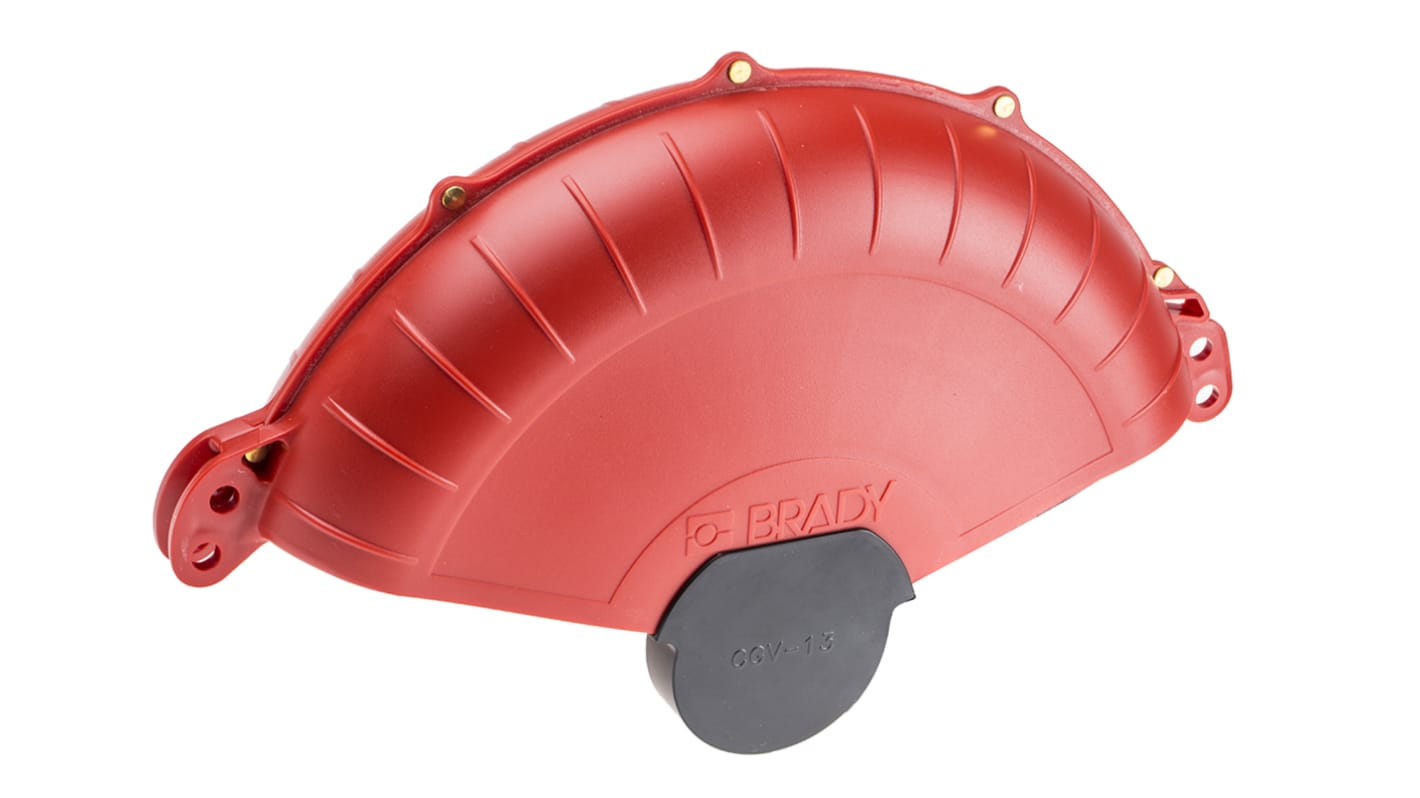

The Brady collapsible gate valve lockout has a maximum hand wheel diameter of 330mm. This collapsible gate valve design provides secure lockout for a wider range of valves, with the use of fewer devices. These covers easily rotate around valve handles to the fully engaged position, while also folding into smaller sizes for easy storage on maintenance carts and in lockout kits. It has a unique knockout centre that accommodates OS & Y or rising stem valves and accepts locks with shackles up to 9.53 mm diameter.

Features and Benefits

• Made of rugged injection moulded acrylonitrile butadiene styrene
• Up to two padlocks can be attached directly on the collapsible gate valve lockout
• Easy to apply: rotates around valves and fully covers them to make them inoperable
• Easy to store and carry
• Folds up to 1/3 of its full size
• Service temperature between -40°C and 100°C
• Rotating type gate valve lockout
• Available with danger labels in English, Spanish and French languages

Applications

• Factory
• Industry
• Power plants

Certifications

• ANSI Standard Z244
• OSHA 29 CFR 1910.147
• UL 94 – HB rated

Specifications
Attribute Value
Material ABS
Attachment Point Minimum Size 178mm
Attachment Point Maximum Size 330mm
Lock Shackle Maximum Diameter 9.53
22 In stock for FREE next working day delivery
Price Each
£ 63.06
(exc. VAT)
£ 75.67
(inc. VAT)
Units
Per unit
1 - 9
£63.06
10 - 19
£61.17
20 +
£60.28
