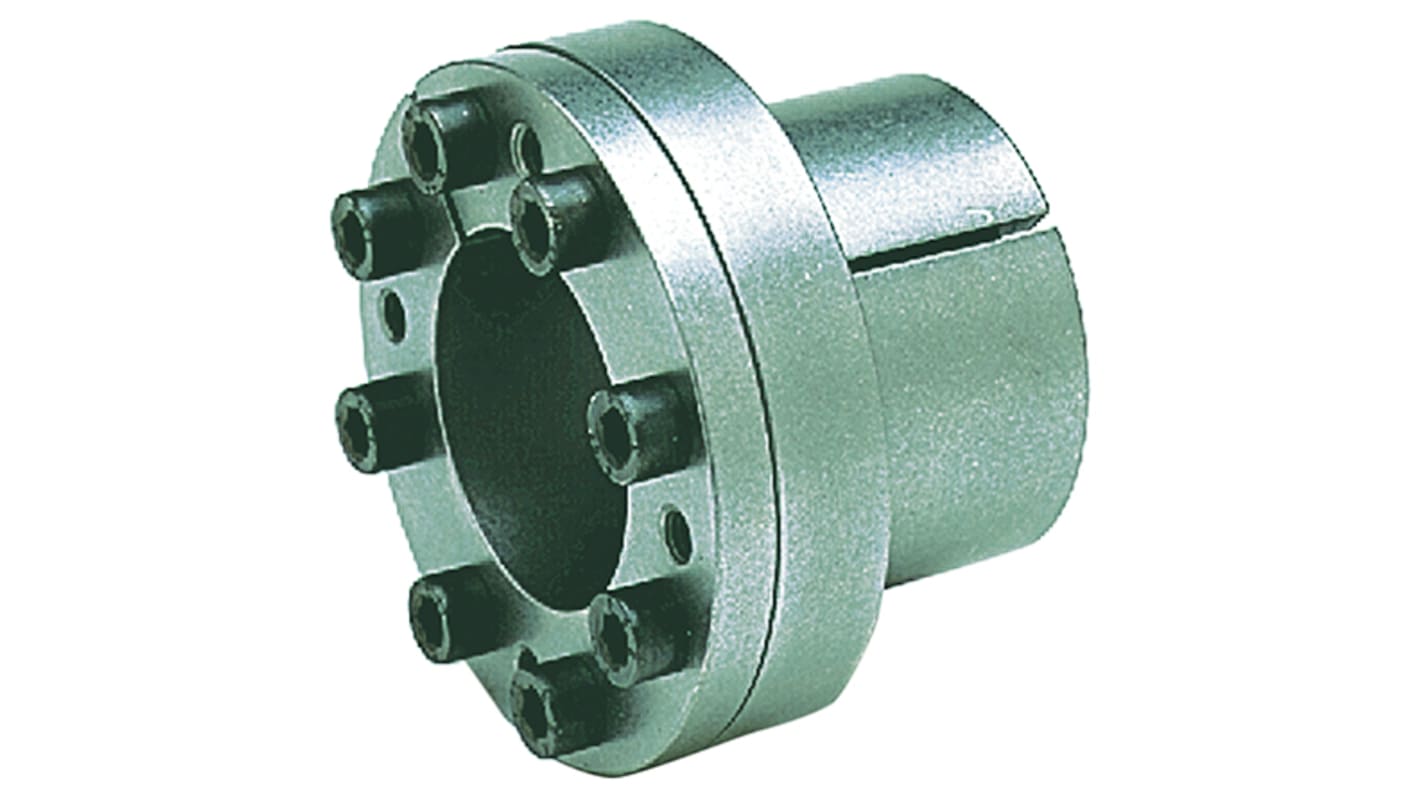

TOLLOCK Locking Bush TLK110 6 x 14 mm

  • RS Stock No. 106-5534
  • Mfr. Part No. TLK110 6 x 14 mm
  • Brand TOLLOCK
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

TOLLOK TLK 110 Locking Bushes

Tollok manufactures highly engineered shaft locking devices for the power generation, process industries, and general industrial applications. For more than 35 years their products have been used to secure rotating shafts, manage torque transmission, and counteract shaft bending and vibration.
These industry standard shaft-to-hub locking bushes offer infinite radial and axial adjustment. They are designed for the economic mounting of gears, pulleys, cams, sprockets, and so on, where frequent removal is not required.

Features and Benefits

• Maintenance free
• Easy installation
• Self-centring
• Medium high torque
• Low surface pressures
• Restricted hub diameter

Note

Refer to technical help if ambient temperature is below 0°C or above 200°C.

Specifications
Attribute Value
Shaft Diameter 6mm
Outside Diameter 14mm
Flange Diameter 25mm
Length 24mm
Rated Torque 16Nm
Minimum Operating Temperature -40°C
Maximum Operating Temperature +300°C
Available to back order for despatch 16/12/2019
Price Each
£ 19.45
(exc. VAT)
£ 23.34
(inc. VAT)
Units
Per unit
1 - 4
£19.45
5 - 9
£18.67
10 +
£18.28
