AC Portable Load unit 220-240V 50/60Hz

  • RS Stock No. 172-0982
  • Mfr. Part No. AC6-230
  • Brand Cressall
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

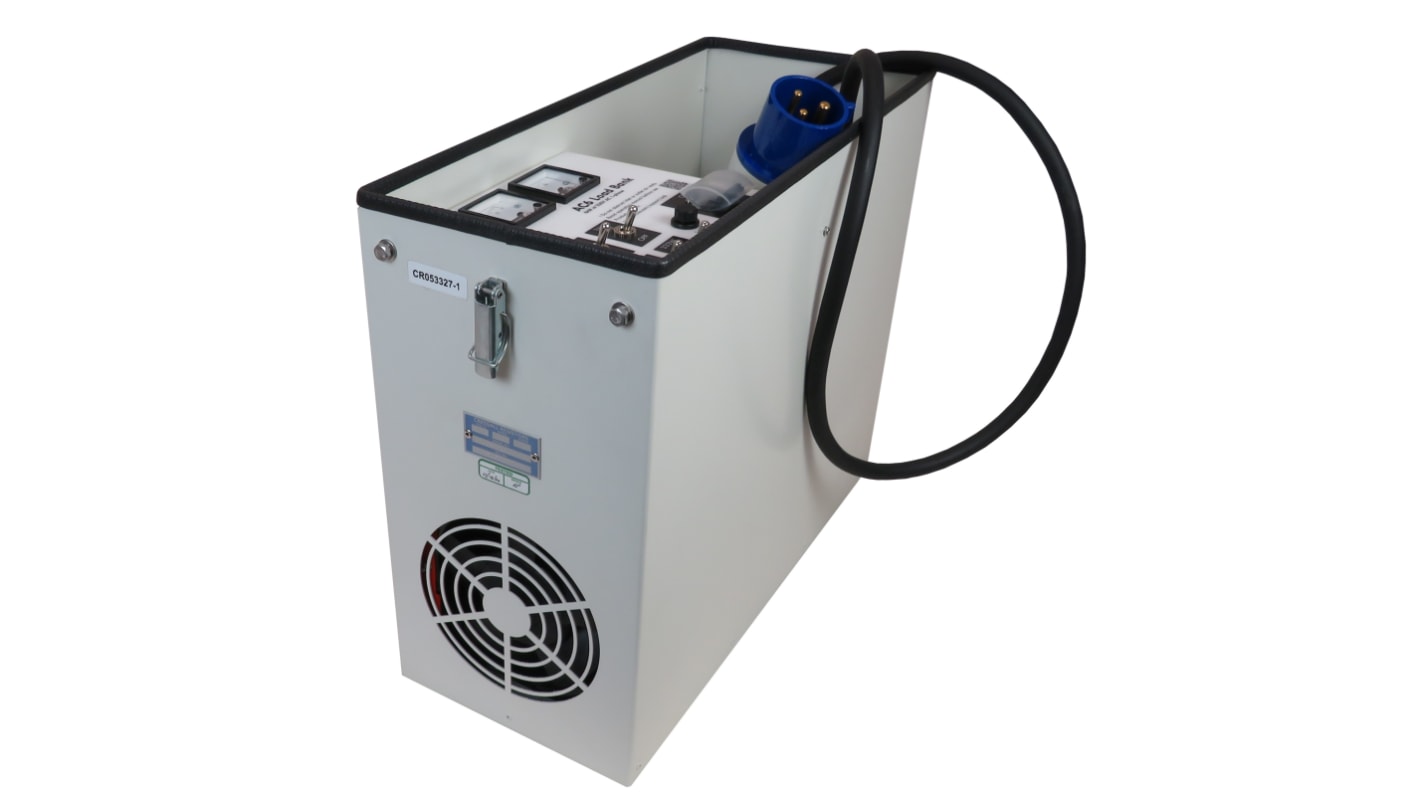

Cressall Single Voltage Ac6 For Testing Portable Generators

The Cressall single voltage AC6 for testing portable generators is a resistive type device with the capacity of 6kW, 230VAC. It has a 0 to 6kW in 333W switched steps of 333W. 666W, 3 x 1kW, and 1 x 2kW switched in any combination. This has a mica card element wound with high-grade nickel-chrome stainless steel resistance tape with 600V primary insulation. It has one 1.5m flexible input cable complete with colour coded input connectors.

Features and Benefits

• Dimensions- 495mm x 220mm x 415mm high
• Fan cooled with a single 170mm fan powered from the test load itself
• Integral control panel with hinged weatherproof lid with 1: 48mm DIN voltmeter 0-300V linear, 1: 48mm DIN ammeter 0-100A linear, 1: 48mm DIN frequency meter 45-65Hz, 1: switching ON-OFF, 1: two pole MCB’s for protection, 6: on/off toggle switches, 1: meter fuse
• Switch-selected voltage range: From 220V to 240V, single-phase 50Hz/60Hz
• Weight is 10kg complete

Applications

• Electricity generation, transmission, and distribution
• Drives and automation
• High power electrical testing
• Oil and gas
• Rail traction
• Telecoms

Certifications

• IEC60309-2

Specifications
Attribute Value
Power Rating 6kW
Input Voltage 230V ac
Current Range 0 → 100 A
Peak Current 100A
Height 415mm
Width 495mm
Depth 220mm
Dimensions 495 x 220 x 415mm
Weight 10kg
Voltage Single
Cable Length 1.5m
Load Bank Type Resistive
