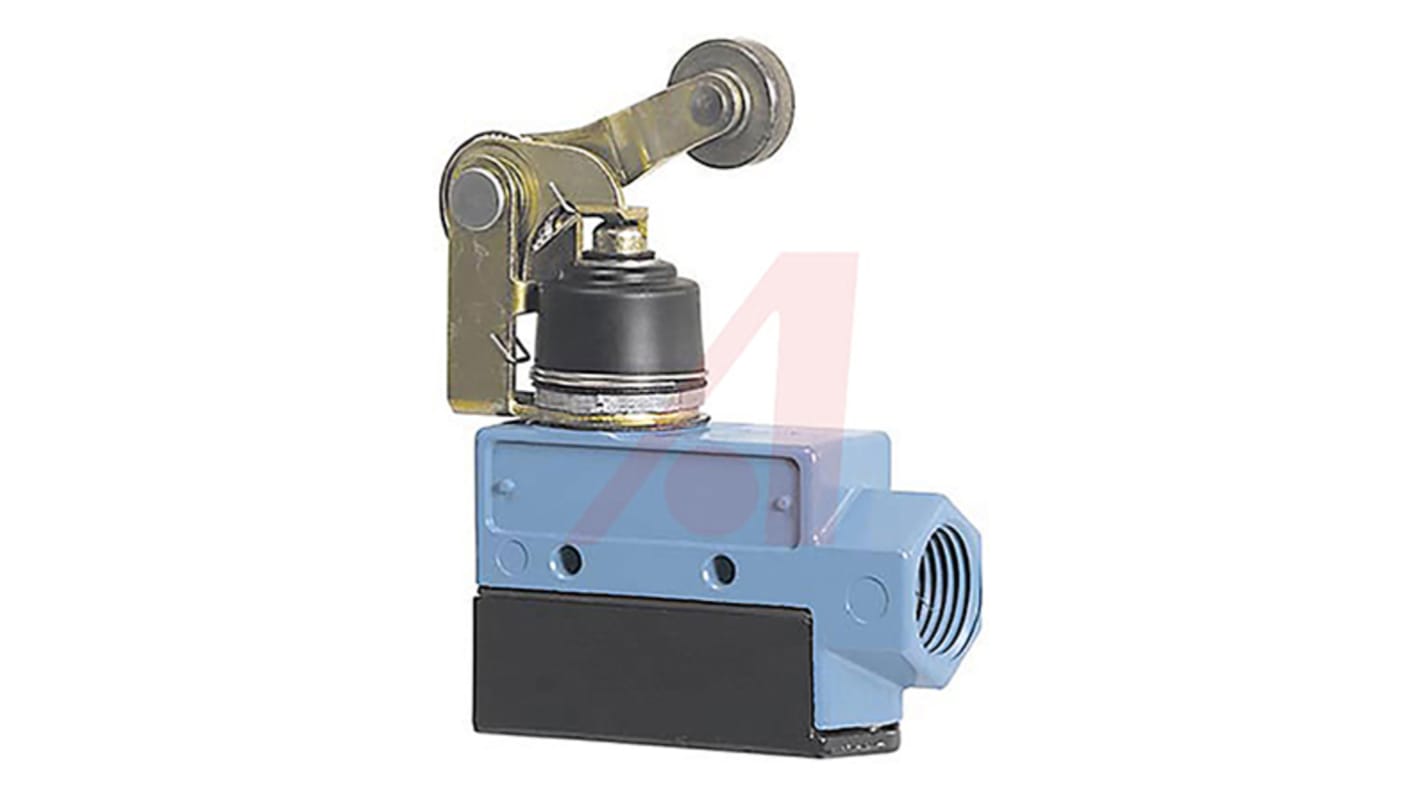

Honeywell BZE6 Series Roller Lever Limit Switch, NO/NC, IP66, SPDT, Die Cast Zinc Housing, 600V ac Max, 15A Max
- RS Stock No.:
- 808-2754
- Mfr. Part No.:
- BZE6-2RN2
- Brand:
- Honeywell
5 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price Each
£132.17
(exc. VAT)
£158.60
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £132.17 |
| 5 - 9 | £126.88 |
| 10 + | £120.27 |
- RS Stock No.:
- 808-2754
- Mfr. Part No.:
- BZE6-2RN2
- Brand:
- Honeywell
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
BZE6 Enclosed Limit Switches
The BZE6 series from Honeywell provides a range of metal housed limit switches with enhanced precision operation and robust actuation. The BZE6 limit switches allow for easy wiring by featuring a large wiring enclosure, the BZE6 range are all side mountable.
BZE6 series featuring side mounting
Die-cast zinc housing for robustness and durability
Wide temperature operating range
Die-cast zinc housing for robustness and durability
Wide temperature operating range
Approvals
UL, CSA.
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Roller Lever |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP66 |
| Maximum Current | 15A |
| Housing Material | Die Cast Zinc |
| Maximum AC Voltage | 600V |
| Maximum DC Voltage | 250V |
| Connection Type | 1/2 in NPT |
| Series | BZE6 |
| Action Type | Snap Action |
| Length | 25.4mm |
| Maximum Operating Temperature | +71°C |
| Width | 44.4mm |
| Depth | 77.2mm |
| Minimum Operating Temperature | -32°C |
| Mounting Orientation | Side |
